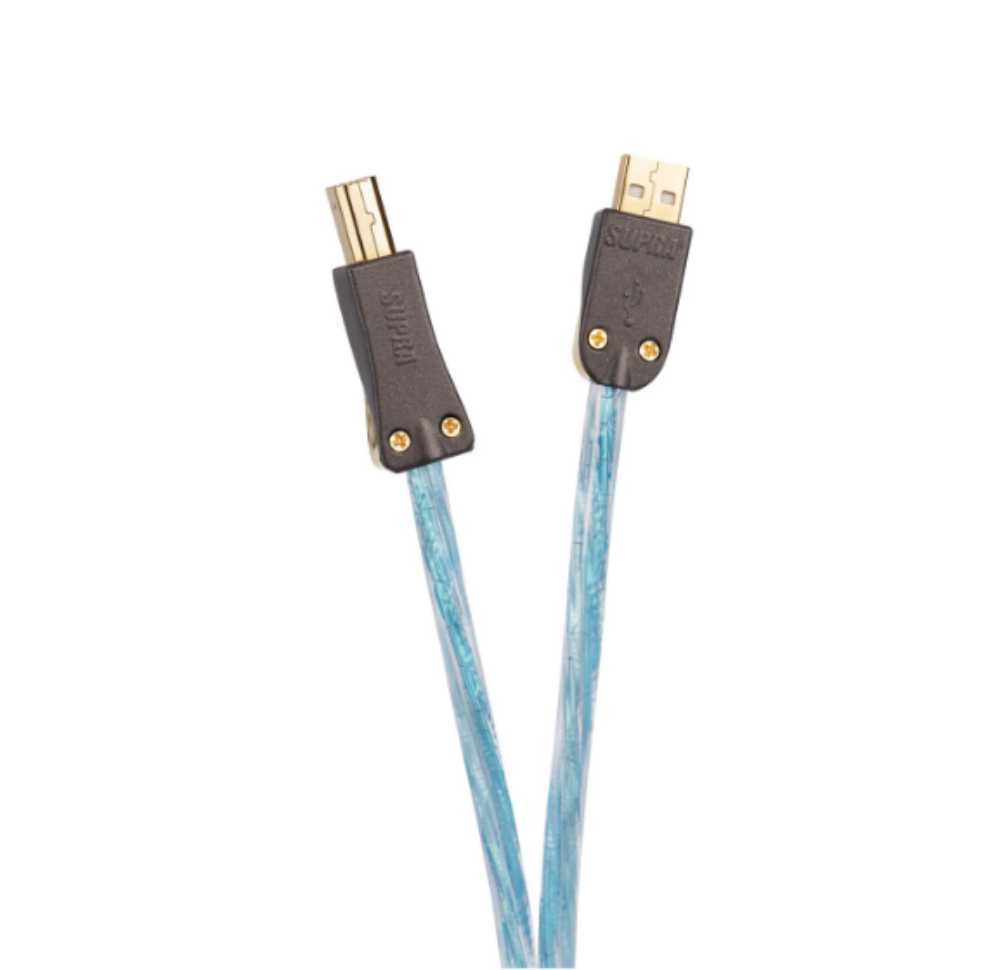

USB 2.0 Excalibur Type A>B (Silver Edition) 5m (Blister)

Supra Cables

Hi-End USB 2.0 Cable Type A to Type B

Data Conductors: A pair of silver-plated OFC copper wires (3.8% silver content) with 5N purity.
Power Conductors: Two pairs of tinned OFC copper wires, 5N purity, arranged in a Star Quad configuration (to reduce RFI interference).
Shielding: Polyester-coated aluminum foil with separate drain wires for both data and power conductors.
Connectors: Robust aluminum shielded connectors, detachable, designed for passing through tubes with a diameter of up to 16mm.

Availability: Upon Order.

5 sizes

€165.00

Qty:

INTERESTED IN PRODUCT

Specifications

Type
USB 2.0, Hi-Speed

Capacitance (MM Only)
50 pF/m

Cable Length
5 Meters

Conductor material
Tinned OFC Copper, 5N purity

Connectors
Type A -> Type B

Insulators
Polyethylene (PE)

Jacket
Outer Jacket: Transparent PVC

Material
Connector Material: Aluminum housing, gold-plated copper pins, Power Conductor Material: Tinned OFC Copper, 5N purity, Data Conductor Material: Silver-plated (3.8% of total) OFC Copper, 5N purity

Number of conductors
Power Conductors: 4 + Drain wire (in Star Quad configuration), Data Conductors: 2 + Drain wire

Resistance
65 Ohm/Km

Shields
Power Pair Shielding: Aluminum foil with polyester coating, Data Pair Shielding: Aluminum foil with polyester coating

Impedance
90 Ohm
