Resonance Control Concept JEWEL

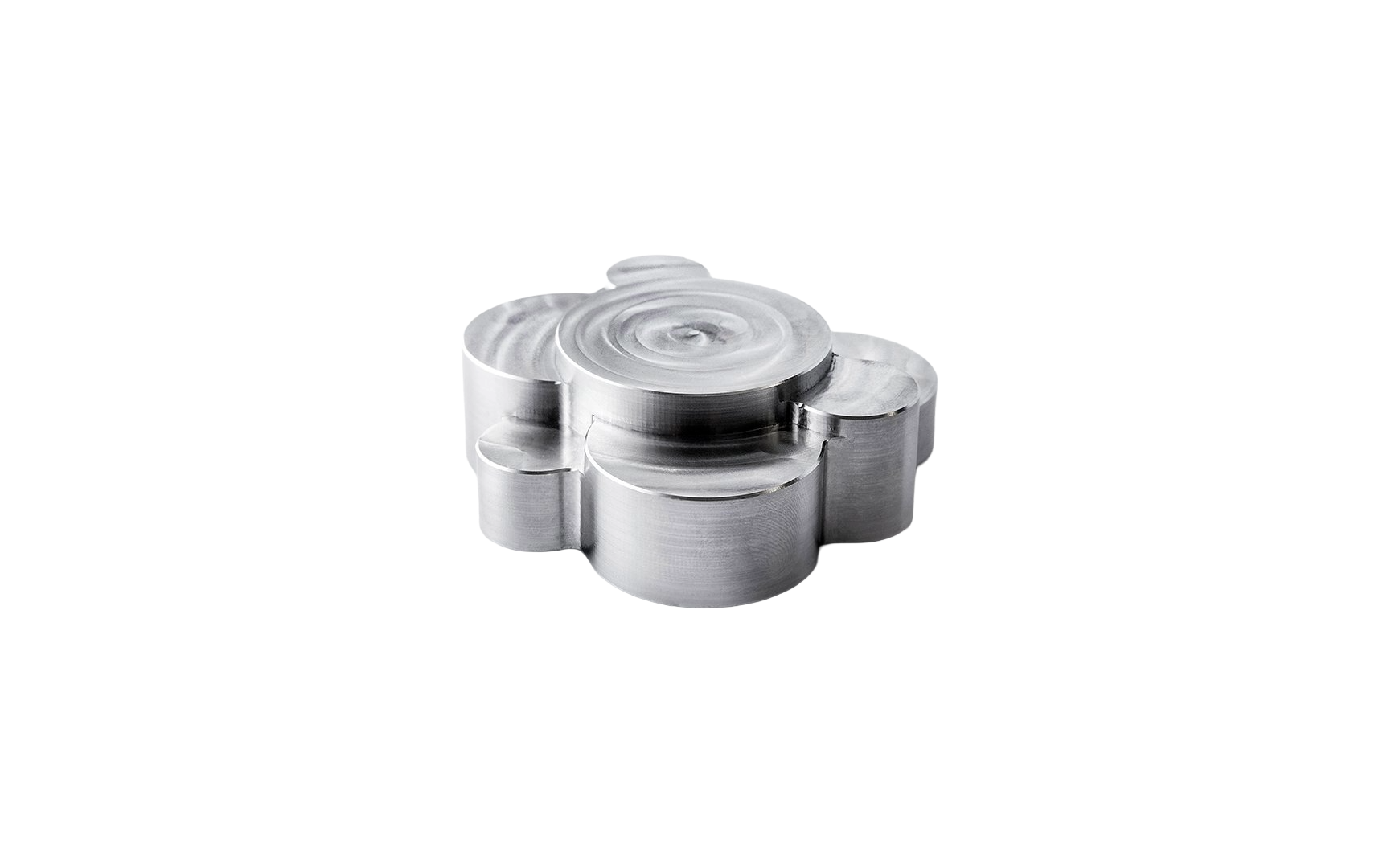

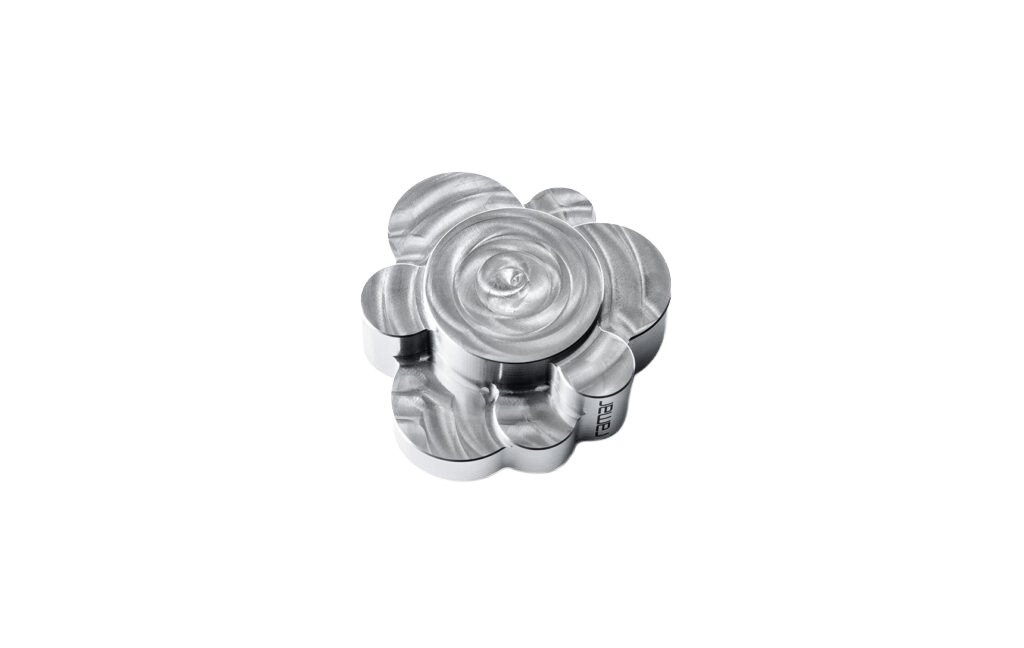

All record weights and clamps known to them are similar in their basic cylindrical shape. With JEWEL, they have implemented a daring design concept and developed the first asymmetrical resonance control concept. Although the outer contours of the body, milled from solid stainless steel, are asymmetrical, in numerous computer simulations they have managed to achieve one hundred percent even weight distribution.

With their three-point approach, they have developed a unique resonance control concept. The combination of a shaft seal, brass rods and Sorbothane damping ring minimizes the contact points with the turntable and the record while allowing the energy of unwanted mechanical noise and vibrations from the record player and the record itself to be absorbed and neutralized.

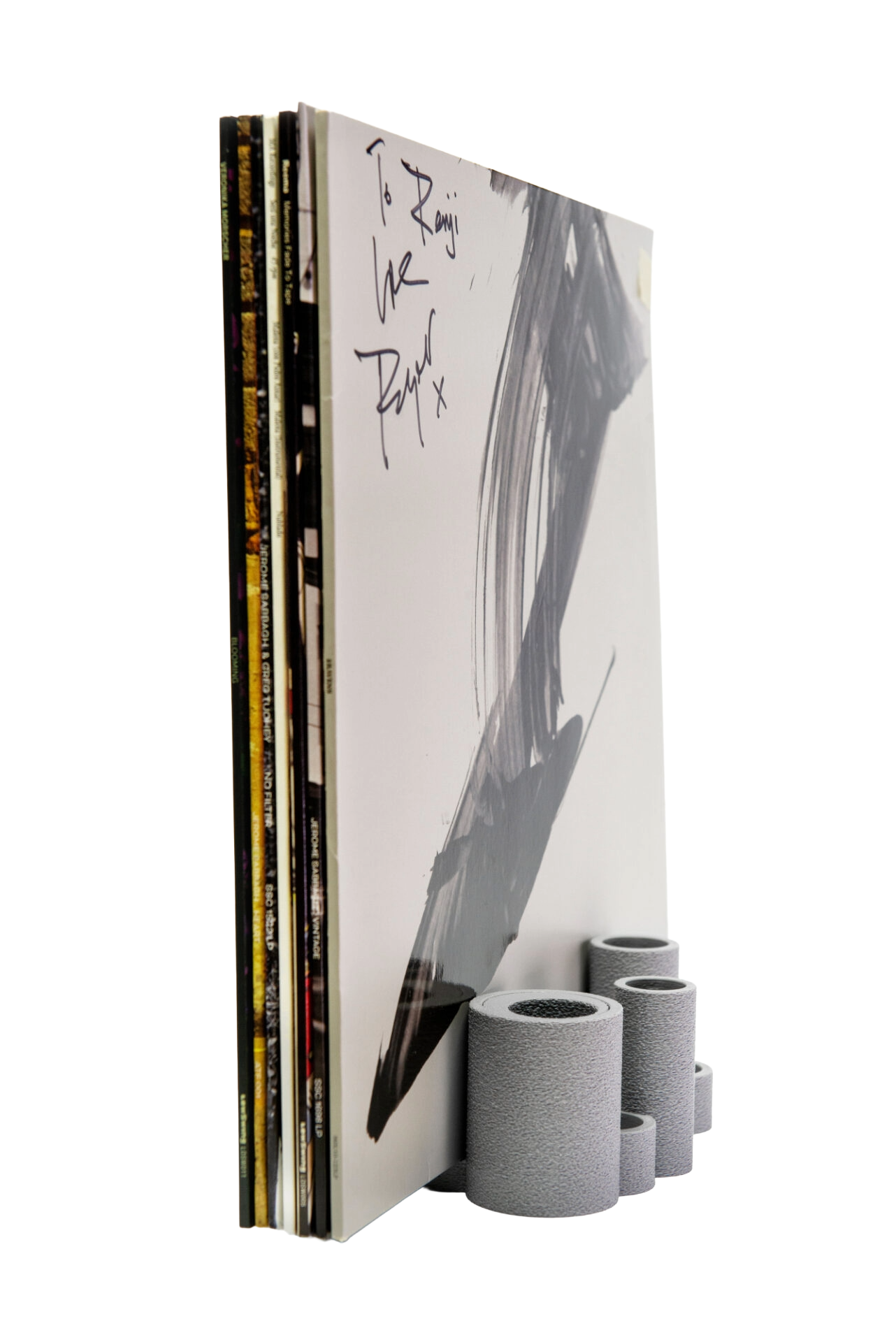

Ramar’s Record Stand was also designed as additional packaging protection for the resonance control concept. This makes the packaging safer and more sustainable. When you purchase JEWEL, the Record Stand is included.

THREE-POINT APPROACH

• JEWEL is mounted to the spindle via a so-called shaft seal. The unique design of the shaft seal ring ensures a stable connection with the spindle. The elastic coating of the ring neutralizes the vibrations, that might be transmitted via the spindle. At the same time, the expandable NBR rubber coating allows JEWEL to be used on a wide variety of record players with different spindles. The material NBR (nitrile butadiene rubber) is an elastomer with excellent mechanical properties and has high abrasion and tensile strength. There is a coil spring around the center hole inside the shaft seal that serves to additionally stabilize the spindle mount.

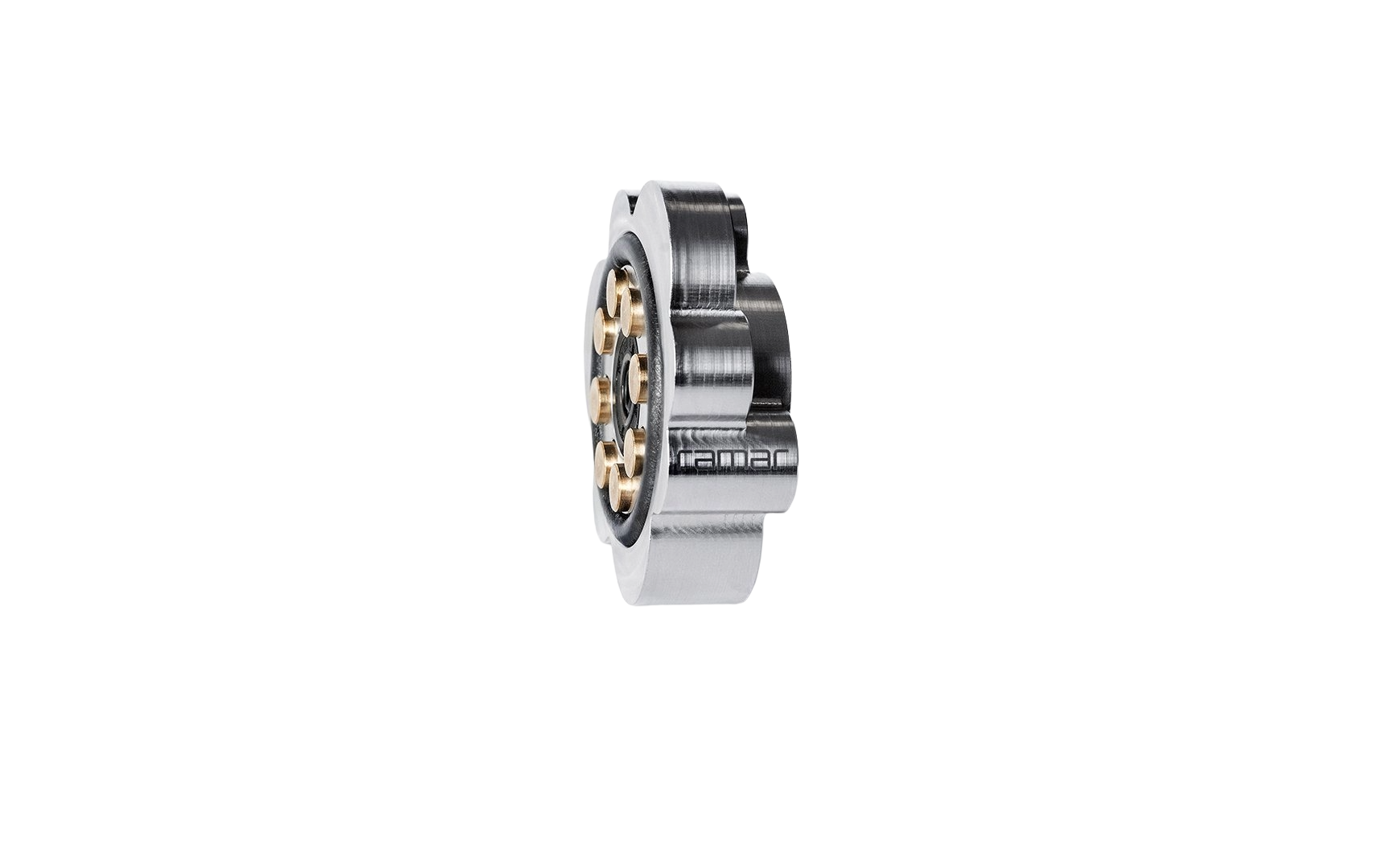

• Eight brass rods are suspended independently of each other in the body. As soon as JEWEL is placed on the record, the rods plunge down and gently touch the surface. These transmit some of the resonances inside JEWEL, where they are eliminated. The suspension allows the individual rods to adapt perfectly to any differences in height of the record surface caused by different label structures. This ensures that the contact surface of the brass rods remains constant for all records.

• In collaboration with Sorbothane Inc., they have developed a unique Sorbothane damping ring. This was developed according to their specifications for the function, mass and shape of JEWEL and ensures balanced damping of unwanted vibrations and resonances from records.

Sorbothane is a proprietary, viscoelastic polymer. Viscoelastic means that the material has properties of both liquids and solids (elastic materials). Sorbothane combines shock absorption, good memory, vibration isolation and vibration damping. While many materials have only one of these properties, Sorbothane combines all of them in a stable material with a long service life.

IMPORTANT

In order to be able to use JEWEL properly, you need a visible (above the surface of the record) height of the spindle between a minimum of 6mm and a maximum of 20mm. With a lower or higher spindle length, the desired horizontal placement of JEWEL can be enormously impaired or even prevented.

TECHNICAL DATA

• Weight JEWEL - 379g

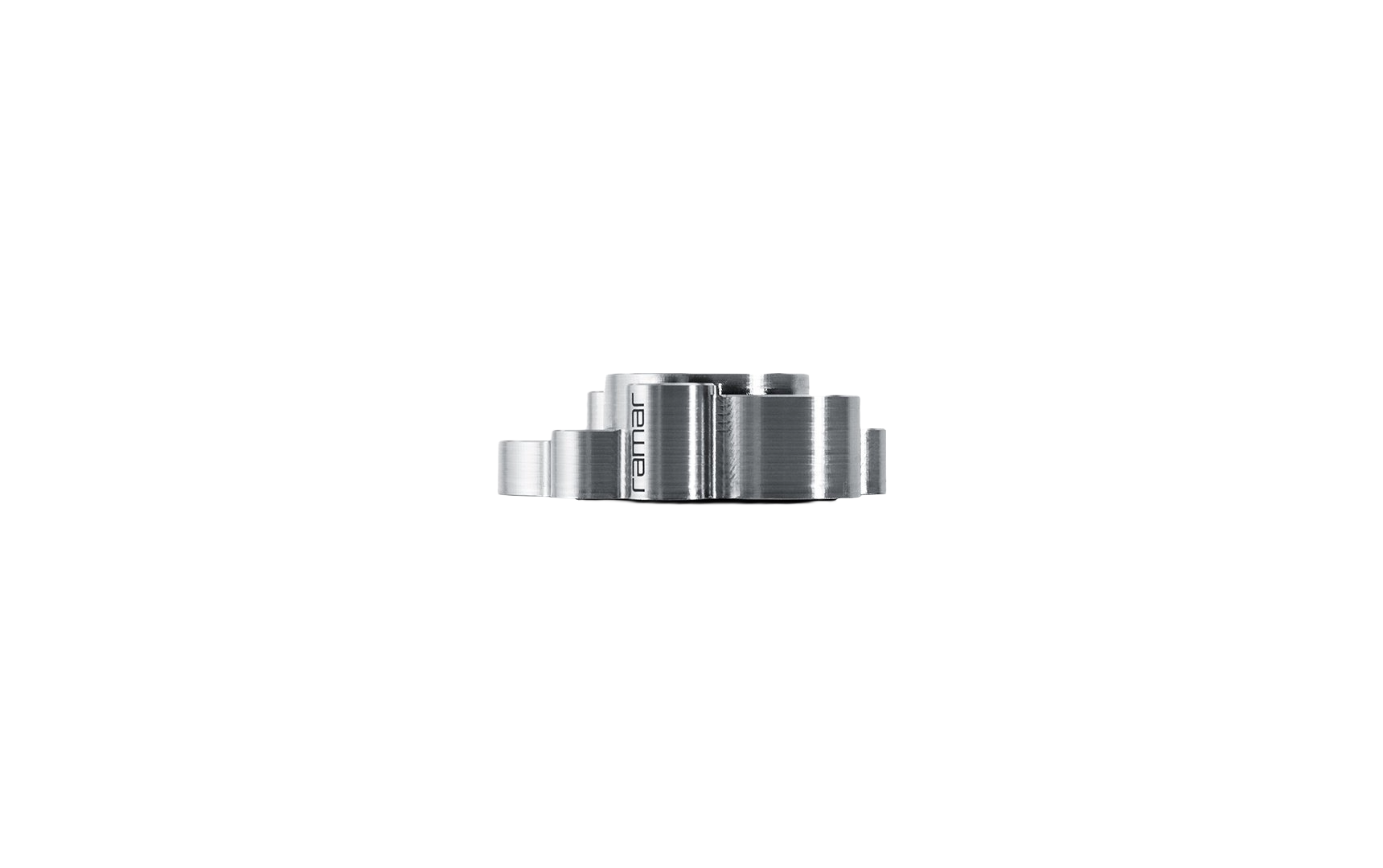

• Dimensions (mm) - Height: 22 x Diameter ca. 70
• Body - Stainless steel
