Specifications

  • Frequency Response
  • 12Hz – 35kHz
  • Cantilever
  • ⌀0.5mm Aluminum Pipe
  • Channel Balance
  • 0.5dB @ 1kHz
  • Channel Separation
  • 30dB @ 1kHz
  • Coils
  • High-Purity Copper
  • Compliance
  • 12×10-6 cm/dyn @ 100Hz
  • Internal Impedance
  • 700Ω
  • Load Impedance
  • 47kΩ
  • Output
  • 2.5mV
  • Recommended Tracking Force
  • 2.0g

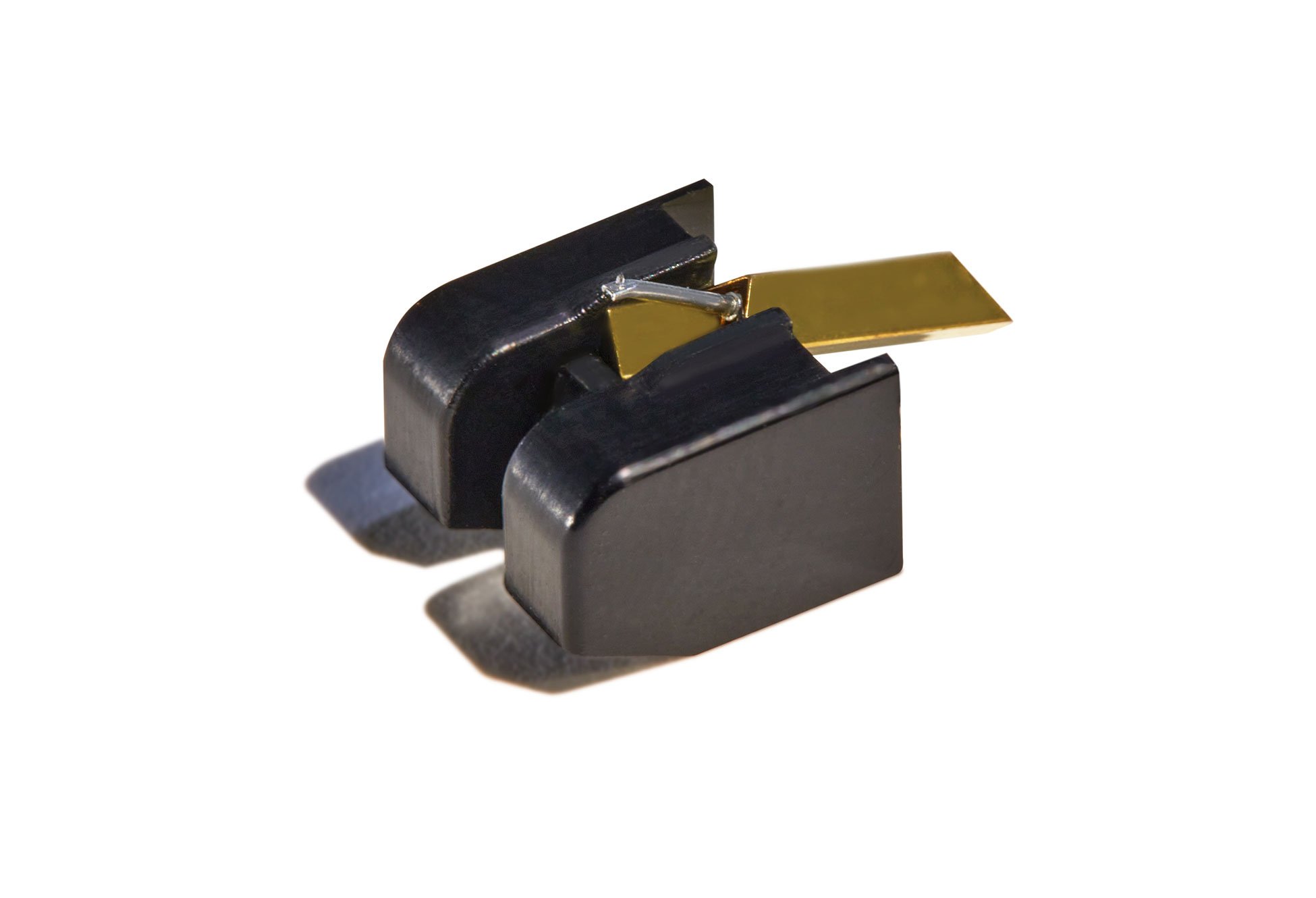

  • Replacement Stylus Unit
  • RS Amethyst
  • Stylus
  • 0.2 x 0.8mil Nude Line-Contact
  • Tracking Force Range
  • 1.8g – 2.2g
  • Vertical Tracking Angle
  • 25°
  • Capacitance (MM Only)
  • 100pF – 200pF
  • Weight
  • 6.5 kg
  • Height
  • 18.8 mm
  • Width
  • 17.2 mm
  • Length
  • 29 mm
