Suprema with 1 subwoofer

Sonus Faber

Unsurpassed Sound

The most ambitious project of Sonus faber to date, Suprema reflects the pinnacle of audio engineering. Building on a legacy of artisanal design and a relentless pursuit of perfection, Suprema honors the 40th anniversary of a brand dedicated to pushing the boundaries of audio excellence.

EXTENDING BEYOND CONVENTIONAL LIMITS

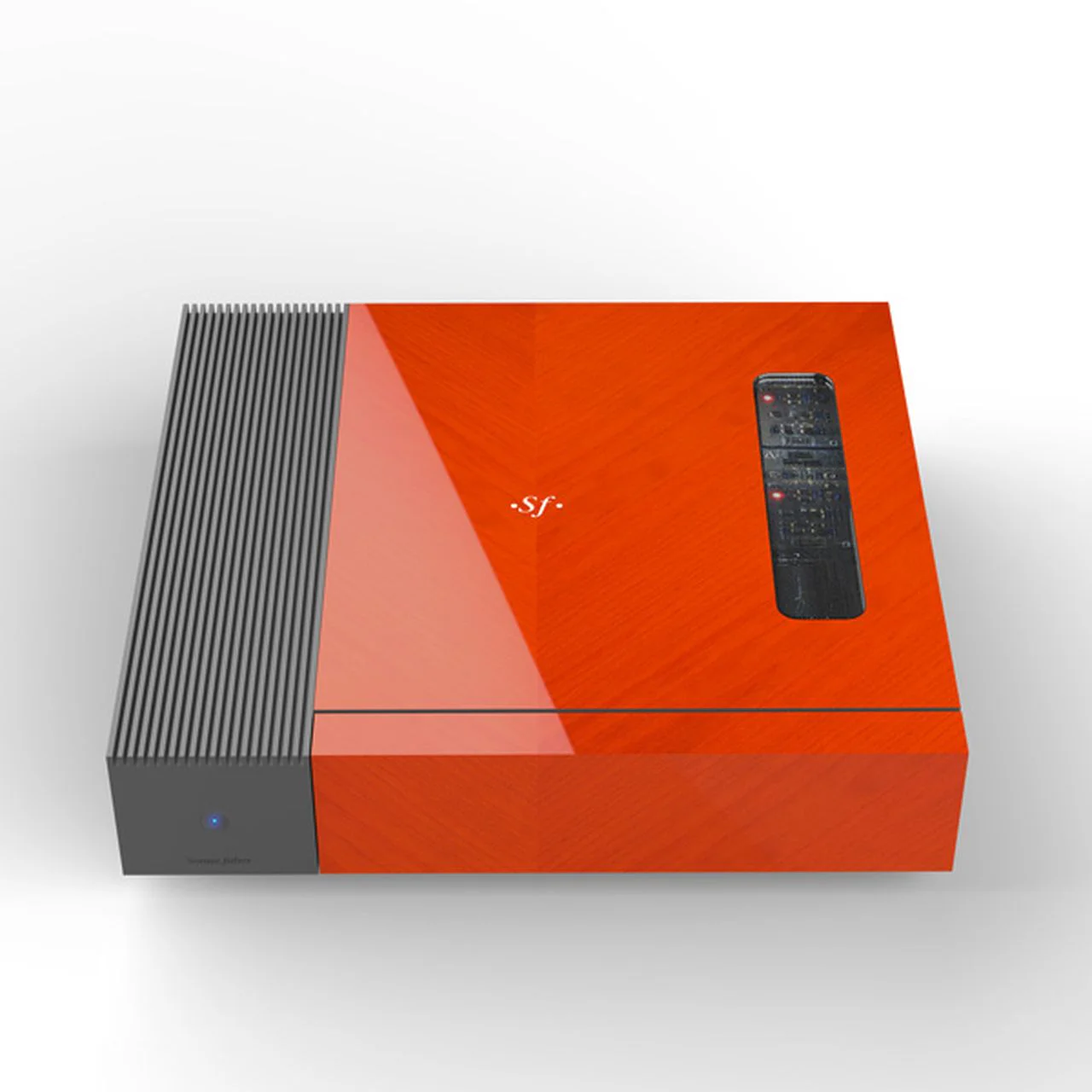

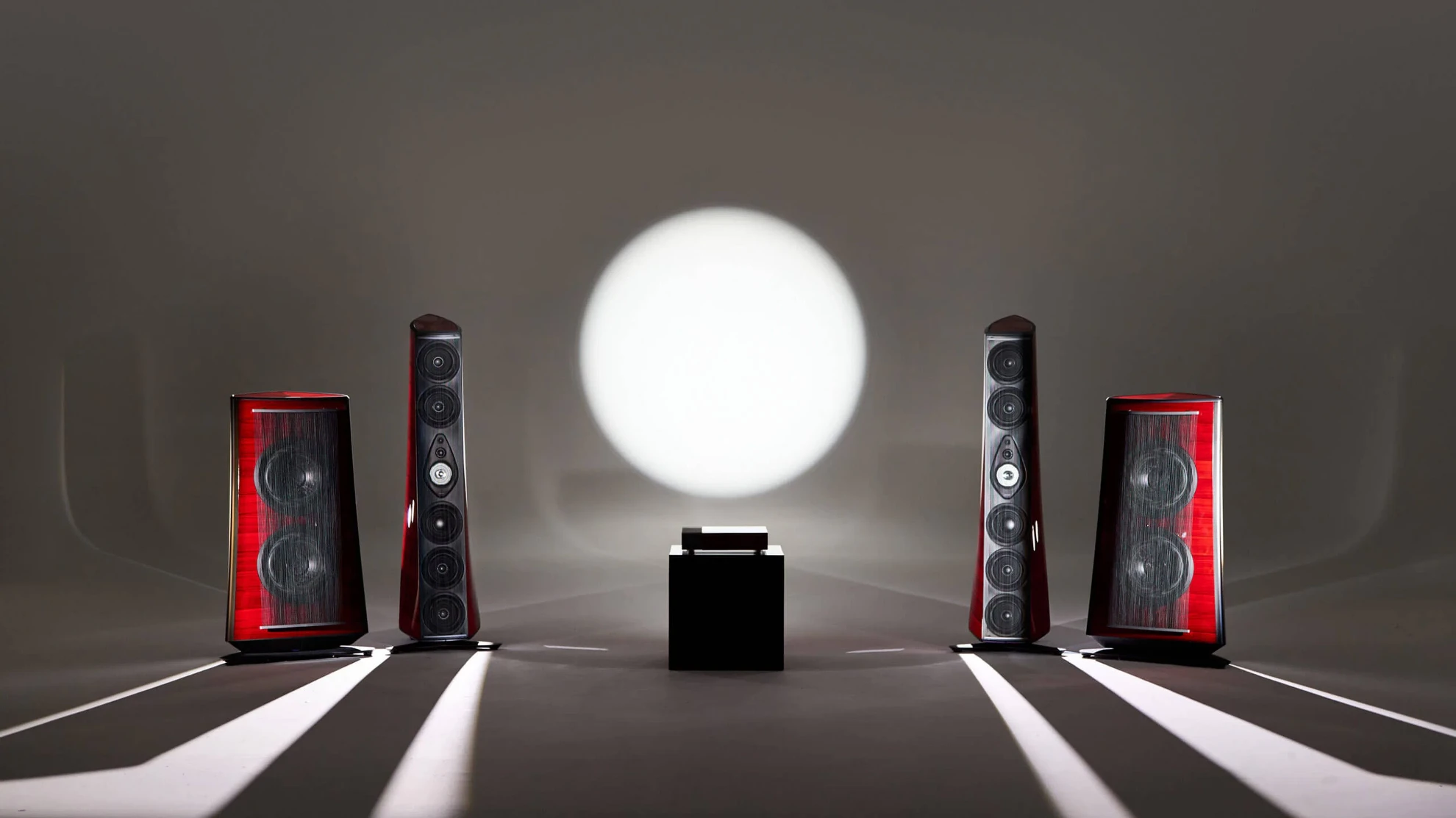

Suprema consists of a sophisticated four column system— two main columns and two subwoofers, and an external electronic crossover. This new design was pioneered by Sonus faber’s engineering team to enhance acoustic performance to new levels of excellence.

LEGACY REDESIGNED

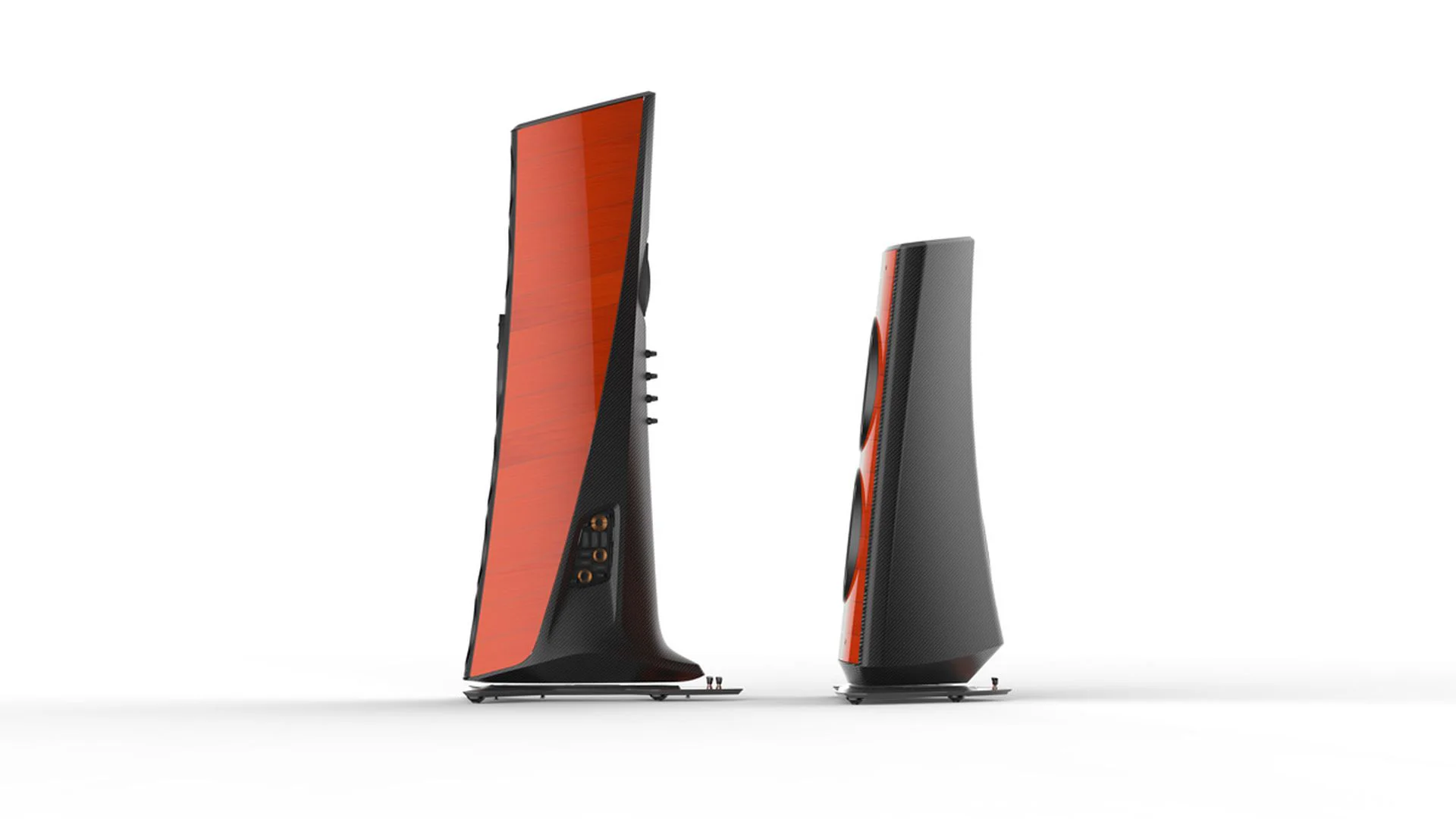

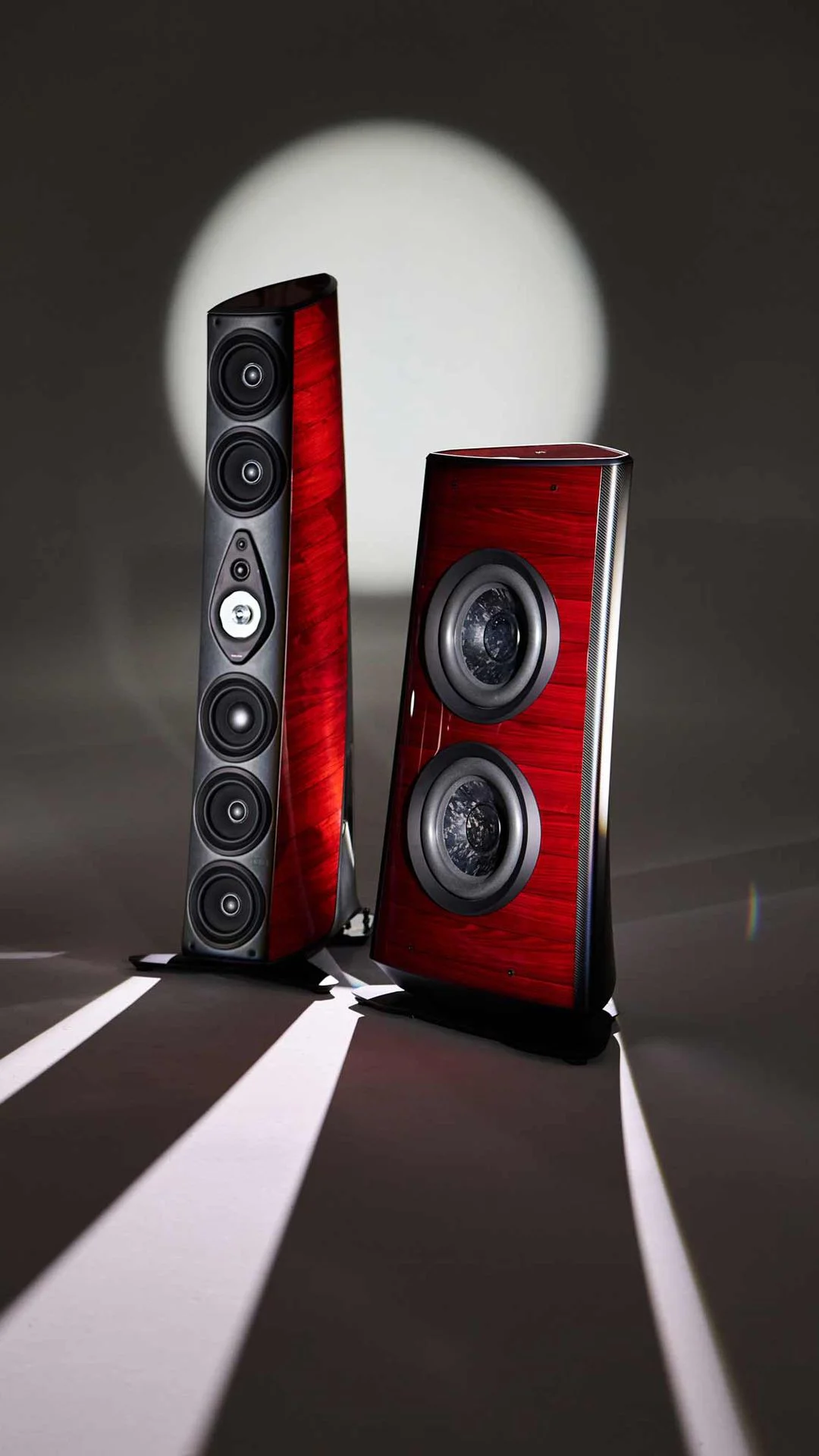

The two main columns of Suprema take the signature Sonus faber lute shape, originally introduced with Guarneri in 1993.

This iconic design represents the optimal solution for enhancing a virtual soundstage while blending seamlessly into the background. The two subwoofers, in contrast, take on Stradivari’s elliptical shape, which is most suitable for the reproduction of low frequencies.

AN INNOVATIVE COMBINATION OF DRIVERS

Each of the two main columns of Suprema is a 4.5 ways system, featuring 2 back-firing speakers in addition to 8 front-firing speakers— 4 dual drive woofers, 1 mid-woofer, 1 Camelia midrange, 1 mid-tweeter, 1 super tweeter. The back-firing speakers improve staging and dispersion while the combination of front speakers allows for unparalleled audio reproduction at every level of frequency.

VOICE OF SONUS FABER, EVOLVED

In developing Suprema, careful attention was paid to maintaining and enhancing the signature Natural Sound of Sonus faber. The configuration of the tweeters and midranges evolves into three brand new elements: one midrange with a cellulose pulp diaphragm, a new mid-tweeter with a treated silk dome, and a new super tweeter with a treated silk dome.

Availability: Upon Order.

5 colors

Red
Graphite
Wenge
Walnut
Red Violin

€737,000.00

Qty:

INTERESTED IN PRODUCT

Specifications

Color
Red Violin

Drivers
MAIN COLUMN: Stw: Ø 20 mm, silk dome with dedicated waveguide, High Power Neodymium, Extended Range Double Soft Dome. Tw: Ø 38 mm, silk dome with dedicated waveguide, High Power Neodymium, Extended Range Double Soft Dome. Md: Ø 165 mm, dual driver motor system with neodymium ring magnet. Lmw: Ø 203 mm, neodymium slug magnet, Ø 65mm voice coil, sandwich paper cone. W: Ø 4x203 mm, dual driver motor system with neodymium ring magnet, Ø 50 mm voice coil, sandwich paper cone, Btw: Ø 28 mm, silk dome, neodymium magnet, Bmd:Ø 101 mm, paper cone driver, neodymium magnet. SUBWOOFER: Ø 2x380 mm carbon fiber sandwich cone

Frequency Response
MAIN COLUMN: Front emission: 45 Hz – 40000 Hz, Back emission: 500 Hz – 20000 Hz, SUBWOOFER: 16 Hz – 30/80 Hz, variable based on the setting of the electronic crossover, CROSSOVER: MAIN: 25 Hz – 150000 Hz, PROC: 5 Hz – 150000 Hz

Suggested Amplifier Power Output
MAIN COLUMN: 100W - 700W, undistorted signal, SUBWOOFER: 500W - 2000W, undistorted signal

System
MAIN COLUMN: 4.5 way sealed box, SUBWOOFER: Sealed box loading, passive subwoofer, CROSSOVER: Full Discrete –Pure Analog Stereo/Mono active Crossover

Nominal Impedance
4 Ohm

Crossover
MAIN COLUMN: Front emission: 360, 430, 1700, 6700 Hz Back emission: 500, 2300 Hz

Sensitivity
MAIN COLUMN: 91 dB SPL (2.83V/1 m), SUBWOOFER: 92 dB SPL (2.83V/1 m)

Connectivity
MAIN COLUMN: 4 connectors binding post: Mid-Hi, Low. SUBWOOFER: 2 connectors binding post, CROSSOVER: INPUT CHANNELS: 2 Unbalanced, 2 Balanced, OUTPUT CHANNELS: 8 Unbalanced, 8 Balanced
