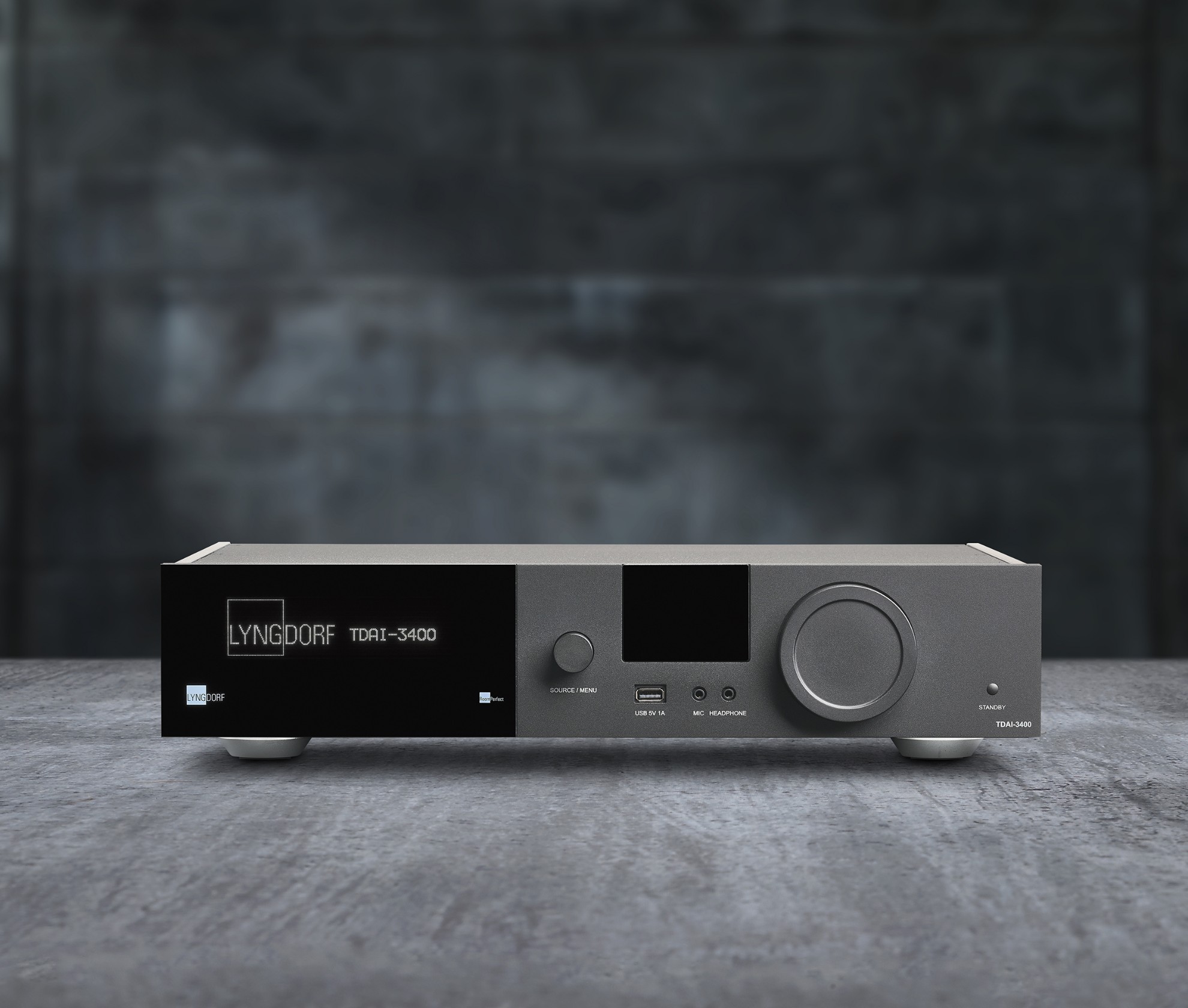

TDAI-3400 - HE Analog Phono & HDMI 2.1 Input (8K & HDR)

Lyngdorf

Lyngdorf Audio introduces a new HDMI 2.1 module for its digital stereo amplifier, TDAI-3400. The flagship model TDAI-3400 has always been available with different optional modules for analog sources including phono, as well as modules for HDMI 1.4 and later HDMI 2.0.

As early as January 2021, Lyngdorf Audio was one of the first to market offering HDMI 2.1 in its flagship multichannel processor MP-60, followed by HDMI 2.1 for customers owning the first-generation MP-50. Beginning of March 2023, the latest HDMI 2.1 module will be available for new TDAI-3400 amplifiers as well as for customer upgrading their existing TDAI-3400. The module offers two HDMI inputs to connect different sources and one HDMI output / ARC connection for the TV.

Key features of HDMI 2.1 include:

8K 50/60Hz and 4K 100/120Hz
Enhanced Audio Return Channel (eARC)
Support for Auto Low Latency Mode (ALLM) and Variable Refresh Rate (VRR) modes
Support for static and dynamic HDR allowing for extended dynamic range and wide color gamut
HDCP 2.3 premium content protection

Availability: Upon Order.

€7,099.00

Qty:

INTERESTED IN PRODUCT

Specifications

Total Harmonic Distortion (THD)
0.05% max from 20 to 20,000 Hz, THD-N 1w/8ohm 0,04% / THD-N 1w/4ohm 0,04%

Type
2-channel integrated amplifier and audio processor

Frequency Response
±0,5dB from 20 to 20,000 Hz

Power Handling
2×400 W RMS @ 4Ohm / 2x200W RMS @ 8Ohm

Outputs
Digital outputs: 1 x coaxial digital (96kHz / 24 bit)

Analog Outputs
1 x analog single ended RCA, 1 x analog balanced XLR, 1 x headphone output 3.5mm Jack

Digital Inputs
2 x coaxial digital (≤192kHz / 24 bit), 1 x AES-EBU digital (≤192kHz / 24 bit) 3 x optical digital (≤ 96kHz / 24 bit), 2 x USB A, 1 x USB B (≤384kHz/32 bit + DXD / DSD64 / DSD128)

Analogue Inputs
2 x Analog Single Ended RCA (Max level: 4.0V = 0dBFS), 1 x Microphone input for RoomPerfect™ calibration

Power Consumption
Standby power consumption: < 0.5W

EQ
RoomPerfect™, Pre-Equalizer, ICC, 32 x adjustable voicings holding ≤8 filters with adjustable gain and Q

Media Player
Internet Radio (vTuner), Spotify Connect, Roon Ready, TIDAL Connect incl. MQA decoding, DLNA Support (uPnP/see DLNA formats), AirPlay2, Local file playback (USB)

Interfaces
Web-interface, IP Control, 1 x DB9 connector for RS232 control, 1 x RJ45 Ethernet LAN connector, 2 x USB connectors (Type A) , SD card slot (Backup of filters and settings)
