820S

“Even if you only pair the 820S with one component, the upgrade is substantial enough to invest.”
– Jeff Dorgay, TONEAudio

Can power up to two units

Engineered for both digital and analog products

Design features

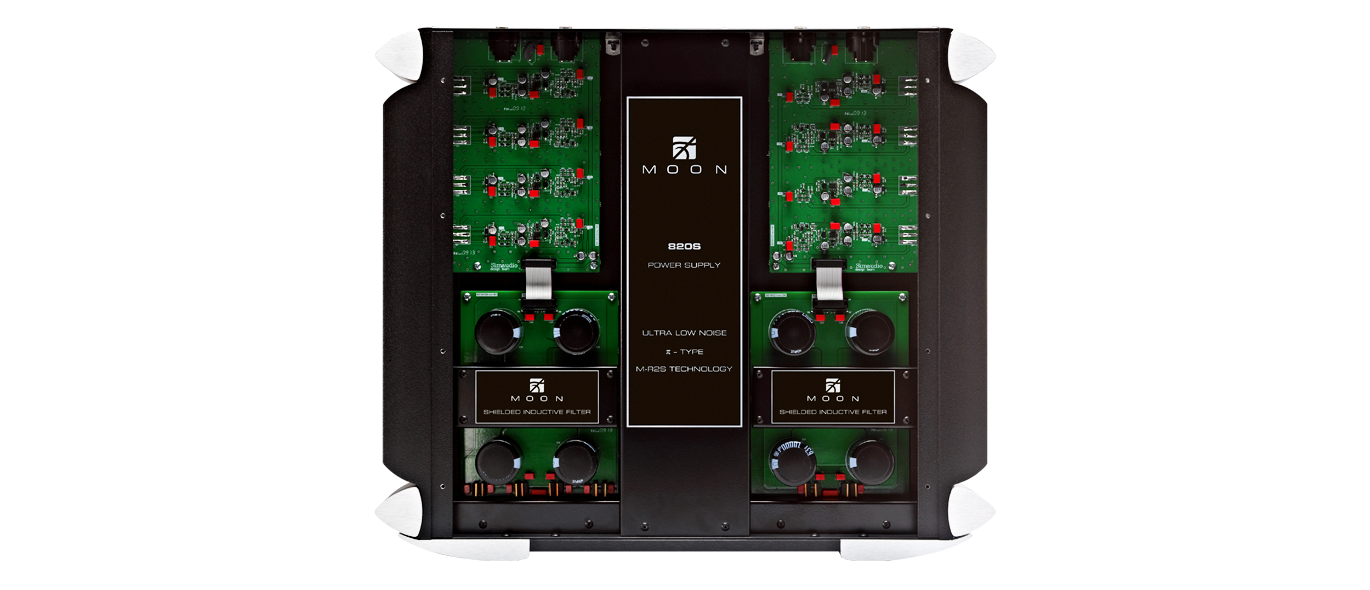

• Two custom proprietary toroidal transformers with lower magnetic, electrical and thermal loss, for an improved power transfer and a lower regulation factor. The result is increased current speed and better dynamics; one each for analog and digital power supplies.

• The analog and digital power supplies each have 2 special “pi-type” filters after the inital voltage rectification stage that reduce AC transmission noise, using 40,000uF of capacitance (4 x 10,000 uF) and dual choke inductance (2x 20mH).

• The analog and digital supplies each have 4 stages of our proprietary M-R2S circuit; A fully discrete voltage regulation circuit using a “precision reference” feeding an amplifier made up of numerous IC’s and transistors as opposed to a single voltage regulation chip. M-R2S outputs pure DC power that is exceptionally fast, very precise, has a virtually unmeasureable noise level, as well as absolute stable voltage.

• 4-Layer printed circuit boards with pure copper tracings and extremely low impedance characteristics yielding much shorter signal paths and drastically reduced noise levels.

• The following accessories should be included inside the box with your power supply:

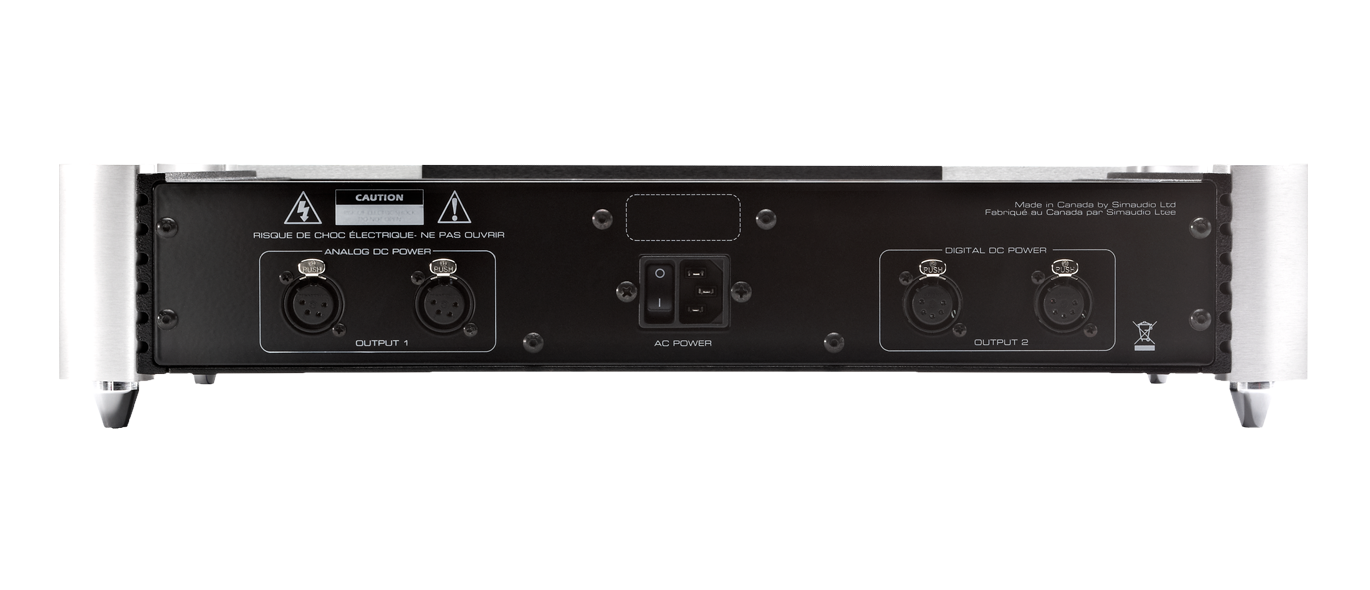

  • Two (2) 4-Pin XLR cables for analog section DC power
  • Two (2) 5-Pin XLR cables for digital section DC power
  • Owner’s manual
  • Warranty and product registration information (USA and Canada only)
