DAC204-MK2

WEISS

COVER ALL YOUR BASES

The DAC204-MK2 is a multi-format digital-to-analogue and digital-to-digital converter. Its many input and output options make it equally useful for use in a professional mixing or mastering studio as for an audiophile-grade listening room.

It now employs a redesigned DAC section: a new ES9028PRO chip featuring an advanced jitter-elimination circuit, plus an optimized output stage. The distortion figures and reconstruction filters have been fine-tuned by ear for an optimal sonic experience.

DIGITAL ACCEPTED HERE

The DAC204-MK2 accepts incoming digital audio streams straight from any USB-equipped computer, tablet, or mobile phone. It can also receive S/PDIF and AES/EBU audio via its S/PDIF or Toslink connectors.

OUTGOING AUDIO

The DAC204-MK2 converts the incoming digital streams to analogue audio, which simultaneously appears on its balanced XLR connectors and unbalanced RCA connectors.

It can also perform digital-to-digital conversion and output digital audio in AES/EBU or S/PDIF formats through the corresponding connectors and a BNC output connector.

Should the incoming audio be in DSD format, the DAC204-MK2 can convert that to PCM.

STAY CONNECTED

The DAC204-MK2 can be permanently connected to multiple digital units, and the user can easily switch between them with the front-mounted Input Selector switch.

PRODUCT COMPARISON

The DAC204-MK2 is the bigger sibling to the DAC205-MK2. The two units offer the same conversion quality, but the DAC204-MK2 has a USB input and can convert DSD to PCM audio.

Both the DAC204-MK2 and DAC205-MK2 remain affordable alternatives to higher-grade units such as the DAC501 and HELIOS. They do not have the onboard digital processing capabilities of those units, nor do they include headphone outputs or remote controls.

UPGRADES & AVAILABILITY

The DAC204-MK2 is priced identically to the original DAC204, which is no longer available.
We or your dealer can carry out the upgrade.

Please contact your dealer regarding upgrade pricing. Owners of DAC204 units with serial numbers 0820 or higher are eligible for a free upgrade.

Availability: Upon Order.

€3,700.00

Qty:

INTERESTED IN PRODUCT

Specifications

Accepted Formats
Accepted formats: PCM 44.1kHz up to 384 kHz, DSD 64x / 128x.

Analog Outputs
Line out unbalanced on RCA connector, Line out balanced on XLR connector.

Digital Inputs
USB, Two AES/EBU or S/PDIF on Toslink or RCA connectors.

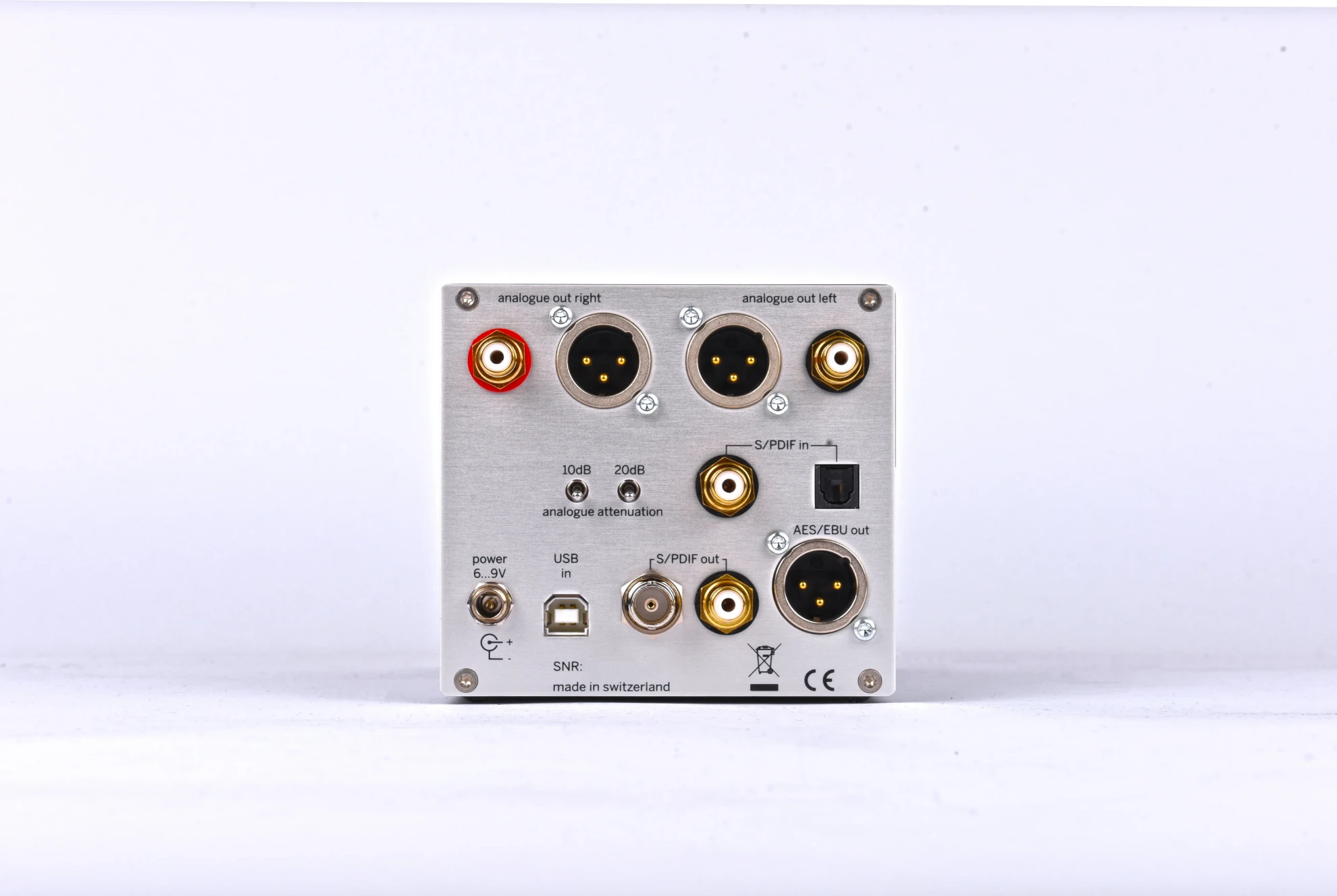

Back panel elements
Digital inputs on USB, RCA, and Toslink connectors, Analog outputs on XLR and RCA connectors, Digital outputs (AES/EBU) on stereo XLR, RCA, and BNC connectors, Two toggle switches for output level setting, External power supply connector.

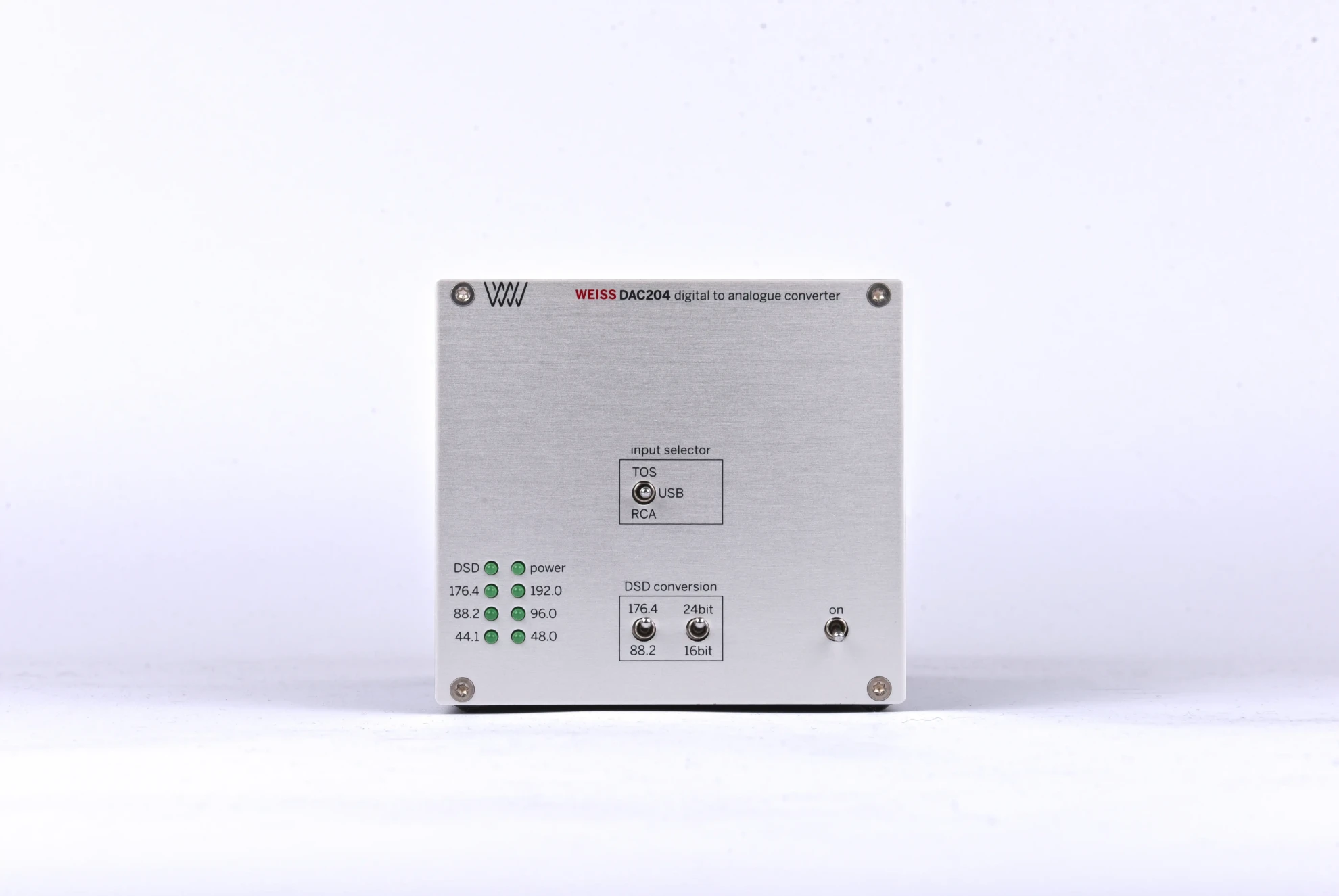

Front panel controls
An Input Selector switch, to select the active input (USB, Toslink, or RCA), Two switches for DSD to PCM conversion settings, Power on/off switch.

Power Supply
An external power supply is included with the unit. All sensitive voltages have their own linear regulators. The result is an analog output free of “digital noise” and channel crosstalk.

Height
95 mm

Width
105 mm

Length
165 mm
