INT202

WEISS Engineering

THE INT202

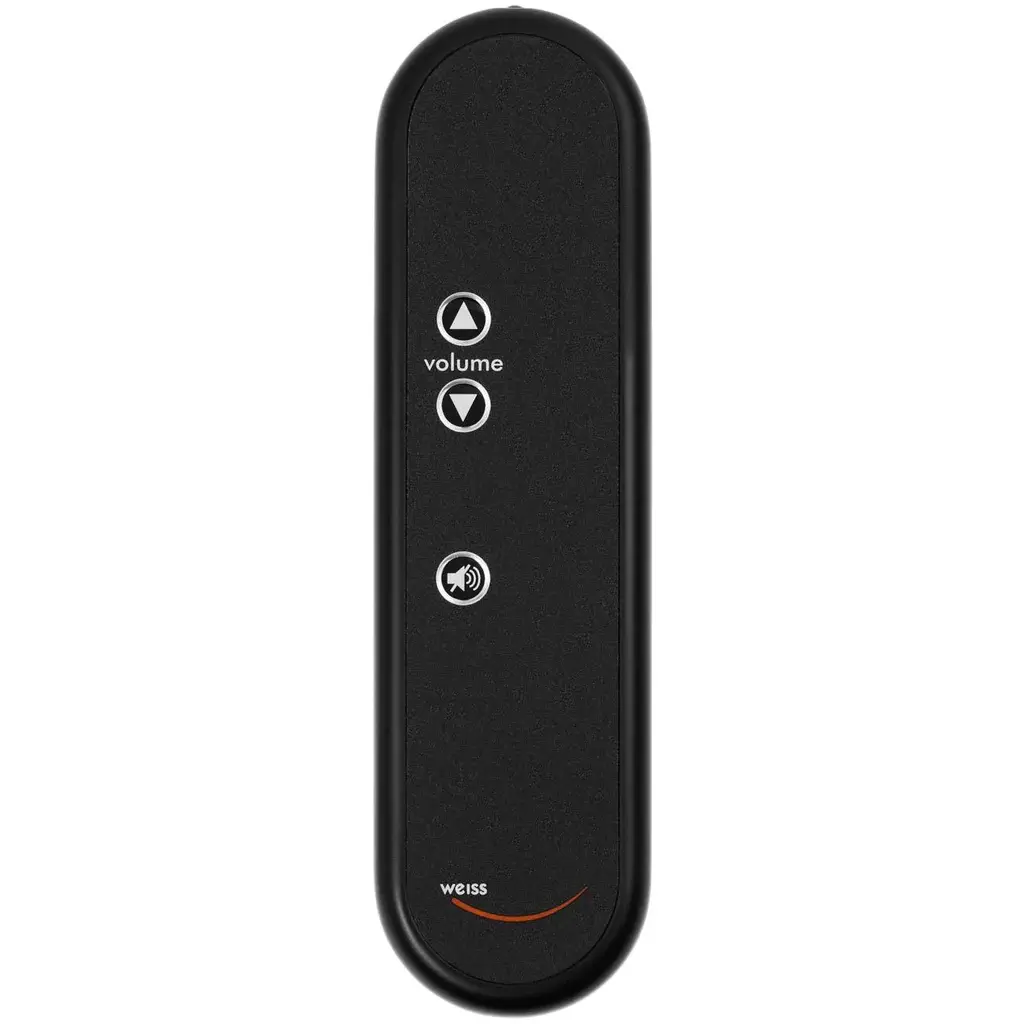

The INT202 is unidirectional stereo Firewire to AES/EBU interface with infrared remote control for volume and absolute polarity.

It supports dual wire data transfer in 176.4/192 kHz mode for older D/A Converters. The bit transparency of the player software on the computer can be checked with the INT202.

SYNCHRONIZATION

The sampling frequency is generated with an internal generator in the INT202. This ensures a low-jitter transfer between the computer and D/A converter.

Device supports bit transparency checking. In addition, there is a digital level control with a proper dithering algorithm applied.

Availability: Upon Order.

€1,050.00

Qty:

INTERESTED IN PRODUCT

Specifications

Digital Inputs
Two Firewire 400 connectors

Outputs
Two RCA connectors, Two XLR connectors, Word-length up to 24 bits.

Synchronization
Sampling frequency is generated internally, Supported sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz.

Height
44.4 mm

Width
105 mm

Length
105 mm
