INT204

WEISS Engineering

USB CONNECTIVITY FOR YOUR DAC

The INT204 allows you to play back audio from a USB-equipped computer through a non-USB-equipped DAC. It takes the incoming USB audio stream and outputs it in AES/EBU or S/PDIF formats.

You can now enjoy audio from your computer through your DAC, even if it does not have a USB input.

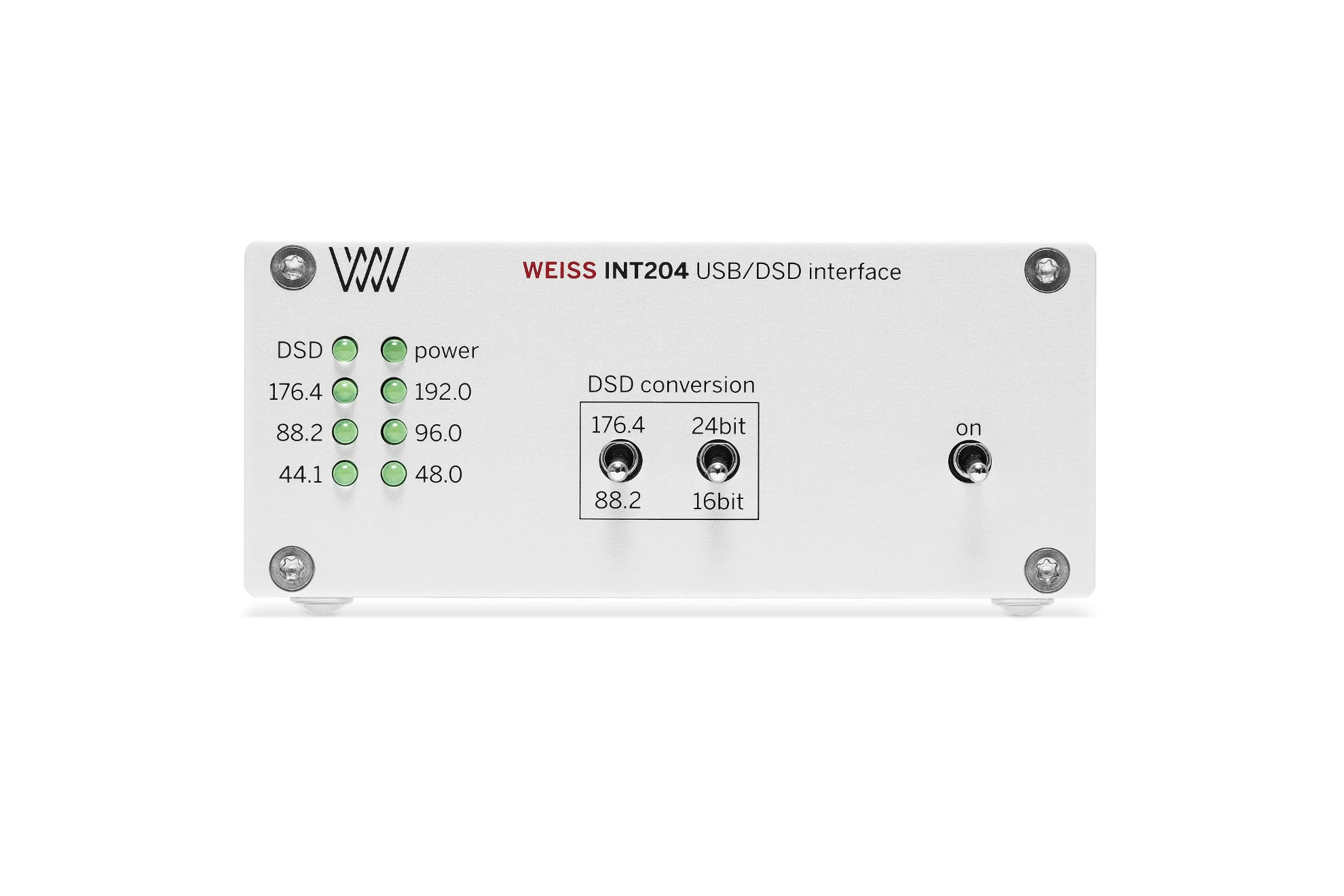

DSD TO PCM CONVERSION AND VOLUME CONTROL

You can also convert DSD audio from the computer to PCM audio for your DAC. The INT204 makes your trusted D/A converter DSD capable, with selectable sampling frequency and word length.

With the optional remote control, it is possible to control the audio volume in the digital domain. The remote control is purchased separately.



CLOCKING AND POWER

To ensure a high-quality transfer, the INT204 includes an internal clock generator for low-jitter performance.

It uses dual power sources — both USB bus power from the computer and its own included power supply. This means the input and output sections can be separately powered and thus galvanically isolated for low-noise performance.

Availability: Upon Order.
€2,100.00
INTERESTED IN PRODUCT

Specifications

  • Digital Inputs
  • USB type B.

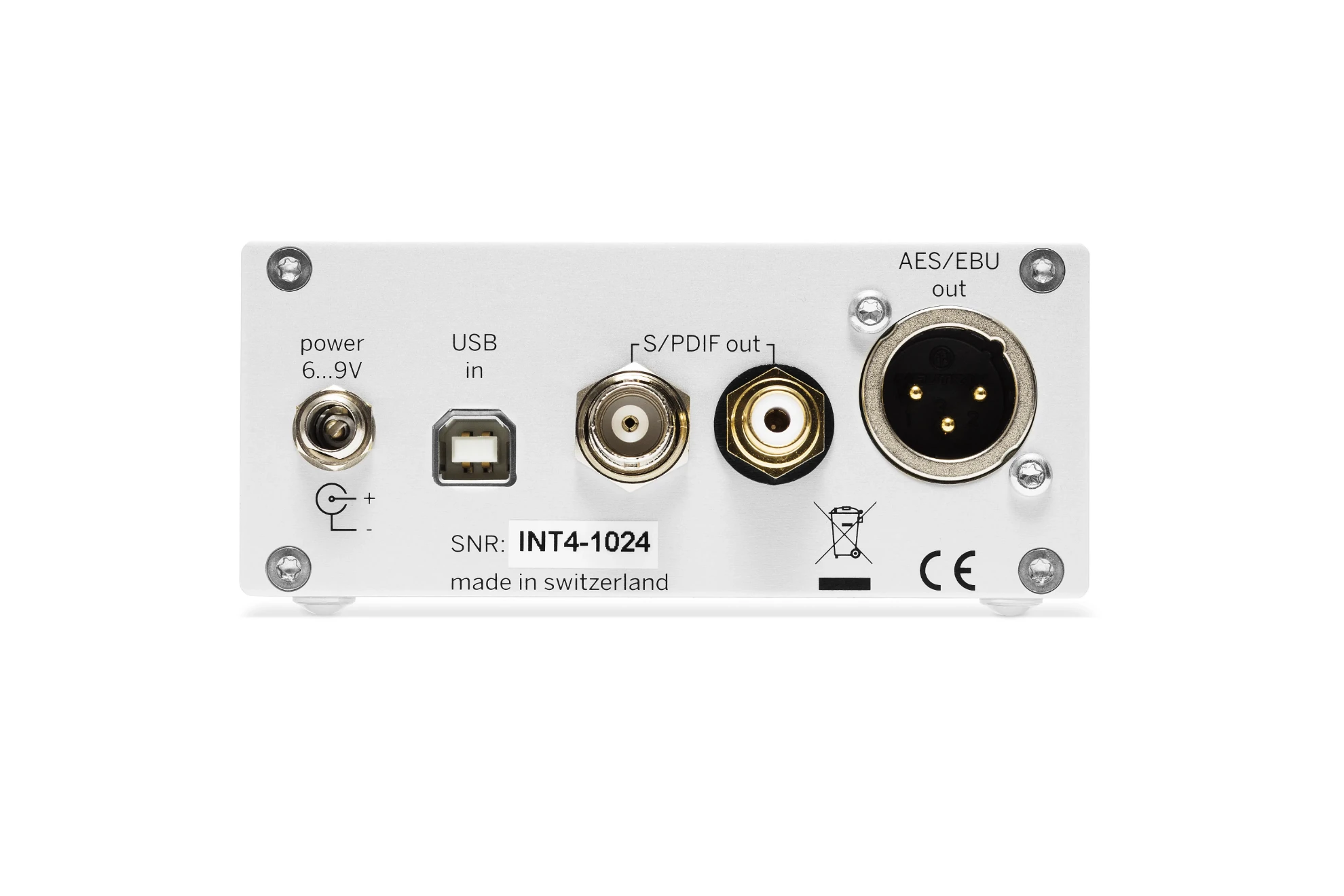

  • Outputs
  • (1) BNC connector, (1) RCA connector, (1) XLR connector, Word-length up to 24 Bits, Supported sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
  • Power Supply
  • An external power supply is included with the purchase. The INT204’s power requirement is 6-9V at 0.15A.
  • Synchronization
  • The sampling frequency is internally generated, Supported sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, DSD64, DSD128.
  • Height
  • 44.4 mm
  • Width
  • 105 mm
  • Length
  • 165 mm
