Specifications

  • Color
  •   Black
  • Technology

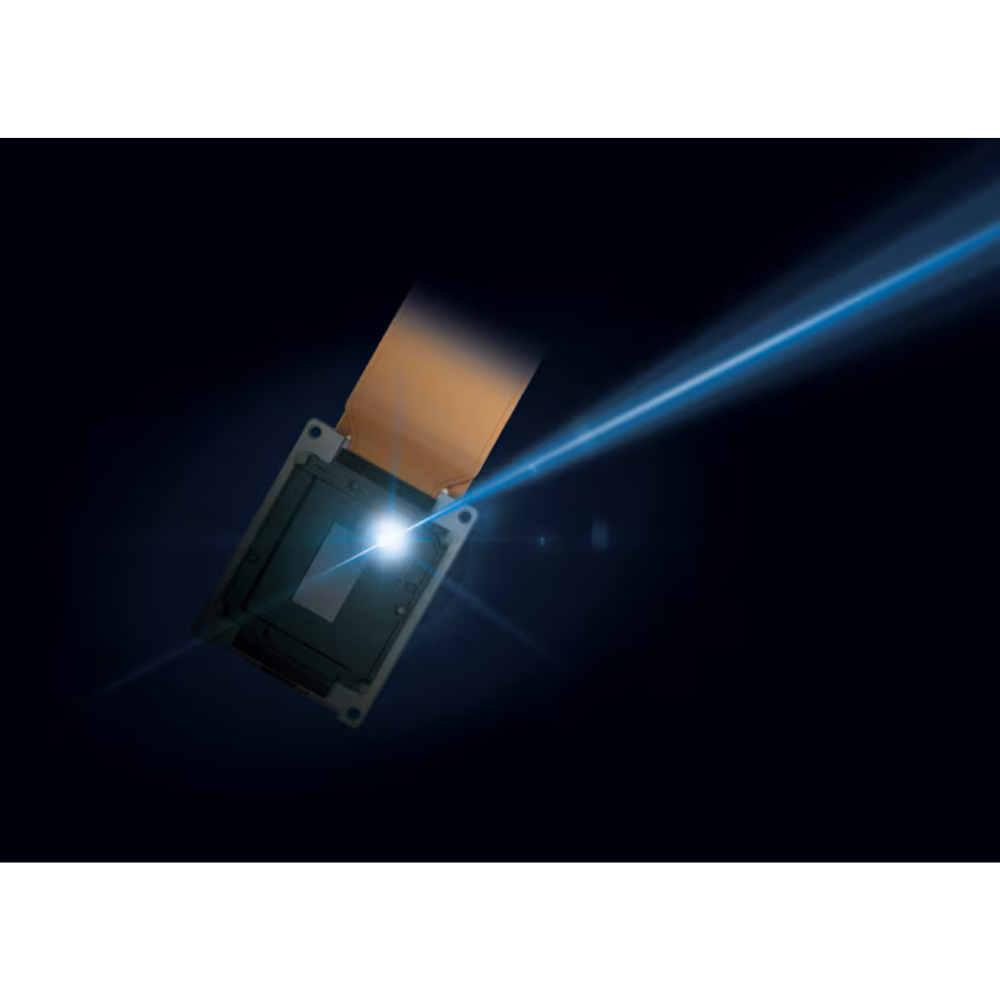

  • 4K SXRD panel, projection system
  • Lens
  • Focus: powered | Zoom: powered (Z8014: approx. x1.95 / Z8008: approx. x1.28) | Lens shift: VPLL-Z8014 (Optional) : Powered V ± 80%, H ± 33% *2, VPLL-Z8008 (Optional) : Powered V ± 50%, H ± 19% *2 | Throw ratio: VPLL-Z8014 (Optional) : 1.49 : 1 to 2.91 : 1 *2, VPLL-Z8008 (Optional) : 0.85 : 1 to 1.09 : 1 *2
  • Light engine
  • Laser phosphor
  • Brightness
  • 10,000lm
  • Contrast
  • ∞:1 (dynamic contrast)
  • Inputs/Outputs
  • HDMI: 2 inputs (HDCP 2.3), Digital (RGB/Y Pb/CbPr/Cr) | Display Port: 2 inputs (Ver. 1.4, HDCP 2.3), Digital (RGB) | TRIGGER: 2 connectors, Mini jack, DC 12V Max.100 mA | REMOTE: RS-232C, D-sub 9-pin (male) | LAN: RJ45, 10BASE-T/100BASE-TX | IR IN/OUT: In:1, Out:1, Mini jack | 3D SYNC OUT: 3-pin mini-DIN (VESA 3D) | USB: Type A, DC 5 V, Max. 500 mA
  • Aspect Ratio Support
  • 16:9 (Aspect ratio)
  • Resolution
  • 4096 x 2160
  • Power Consumption
  • 1.200W (AC100-120V) | 1.800W (AC200-240V), standby: 0.3W
  • Power Requirement
  • AC 200-240 V, 50/60 Hz | AC 100-120 V, 50/60 Hz
  • Weight
  • 51 kg
  • Height
  • 228 mm
  • Width
  • 560 mm
  • Length
  • 760 mm
