Eiger Sub Trap - Corner

The design of these acoustic cores creates a trap with unprecedented performance and unique calibration – Absorbing more - and from a lower frequency - than anything else on the market.

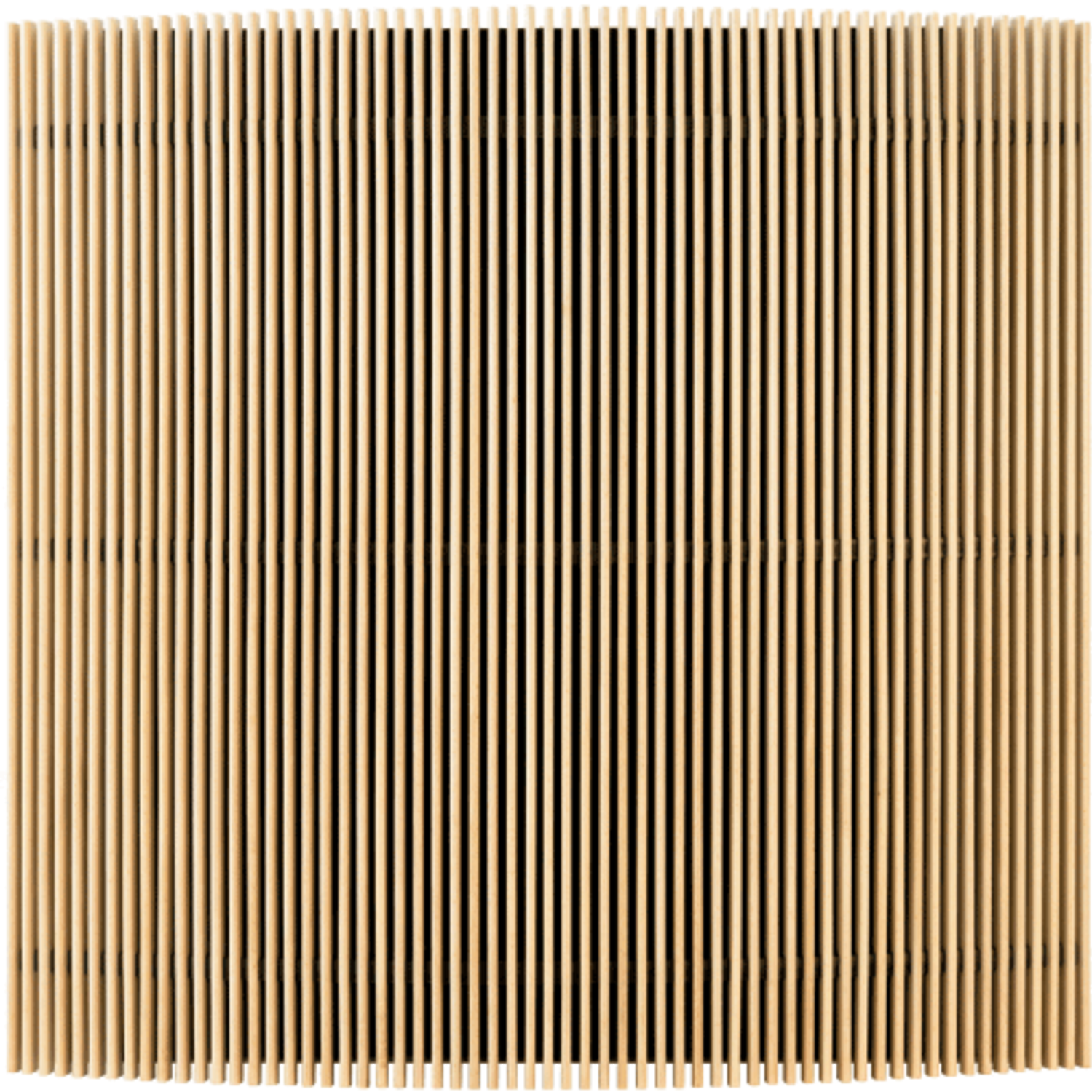

The Corner Bass Trap will be available in all standard panel fronts. The front of the panels clips in to the bass trap body, leaving easy access to the membrane. The panel is installed on wall corners, with a simple cleat system.

Making the most of our new membrane technology employed in the Sub Trap range, we are launching an improved version of our bass trap HP.

Artnovion Corner BassTrap takes a new approach on absorption, using a new membrane technology akin to a speaker cone, suspended a calibrated mass on an elastic surround - allowing for a much superior - and controlled - performance. A further feature is the possibility to precisely tune the membrane to resonate at your desired frequency by simply adding or removing mass from the membrane.

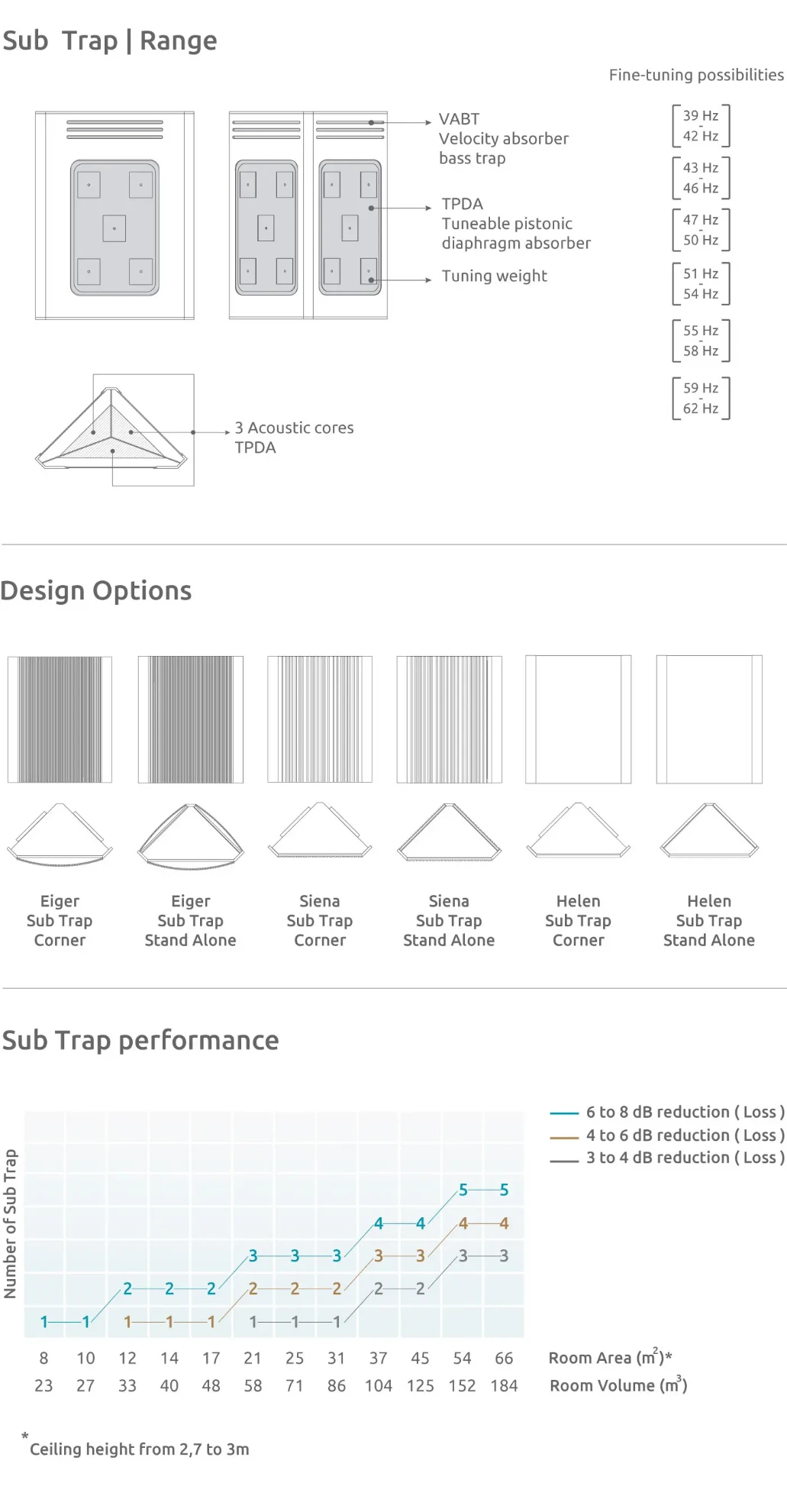

The Corner Bass Trap is composed of 2 independent cavities - 1 sealed volumed equipped with independent, tuneable diaphragmatic membranes (TPDA), and an additional acoustic core packed with a high performance porous absorber (V.A.B.T.). This configuration is designed to bring you the best performance possible, with pressure and velocity sensitive cores exposed to the correct modal areas.

Tuneable Pistonic Diaphragmatic Membrane Technology (TPDA)
Velocity Absorber Bass Trap (VABT)
