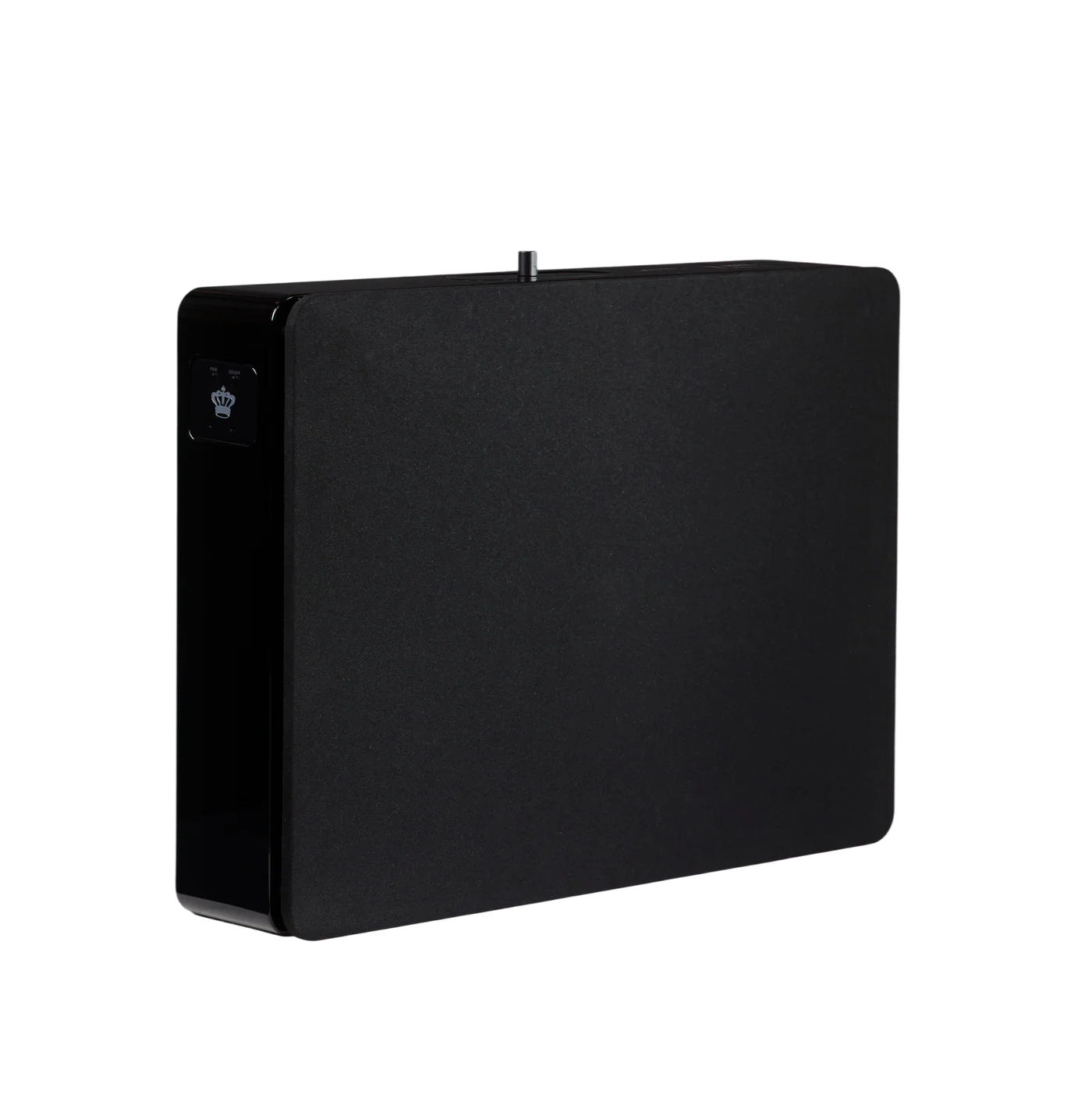

Planar PL-2

REL Acoustics

Maximum Performance. Minimal Space

PL-2 is REL’s solution for spaces where traditional subwoofers do not fit. Designed to work in close relationship with the wall behind it, Planar uses boundary effect coupling to deliver deep, room-filling bass and remarkable scale from an ultra-thin form that occupies little-to-no floor space.

500-Watt Pure Class D Amplifier
8” FlatPiston Driver
10” Boundary-Coupled Passive Radiator
Ultra-Thin Cabinet for Near- or On-Wall Placement
Built-In Airship Direct Wireless

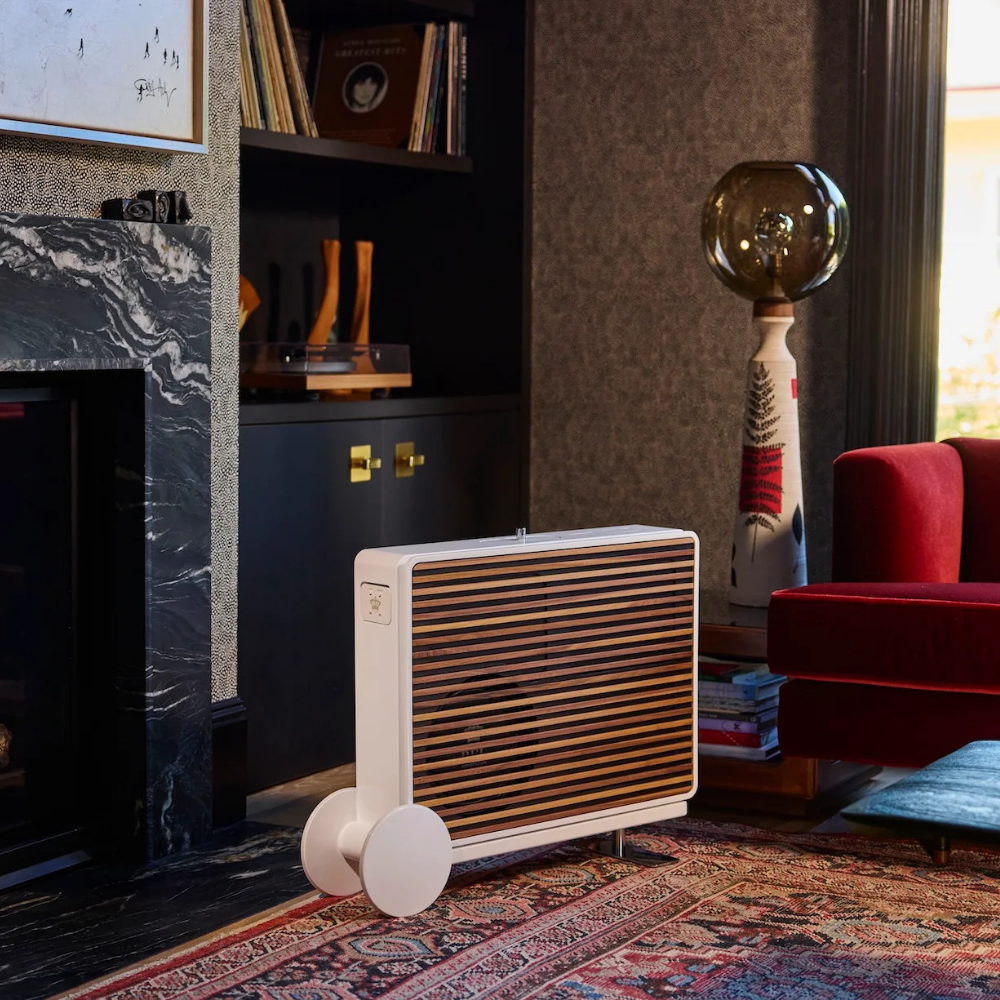

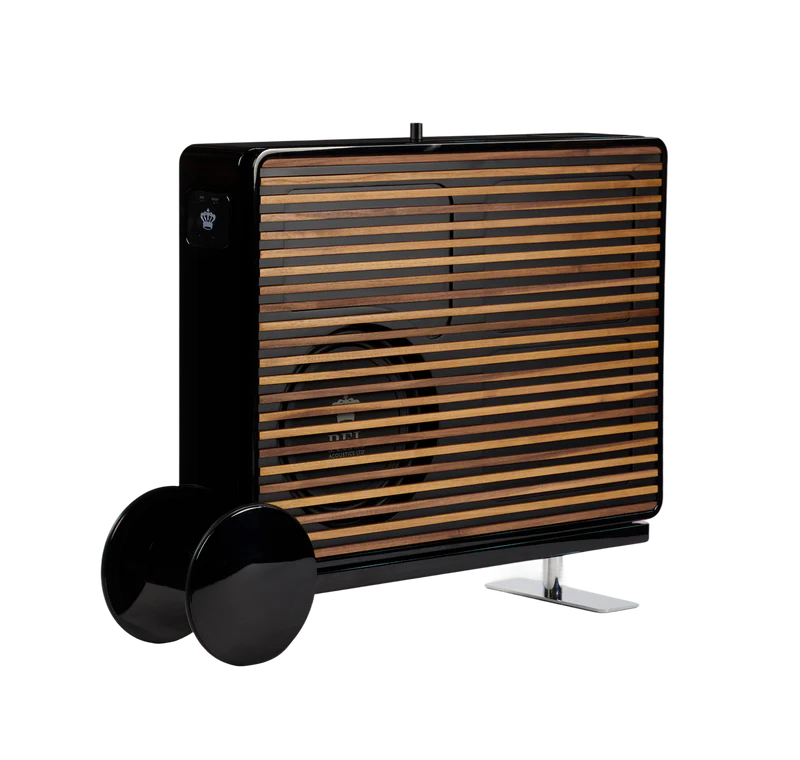

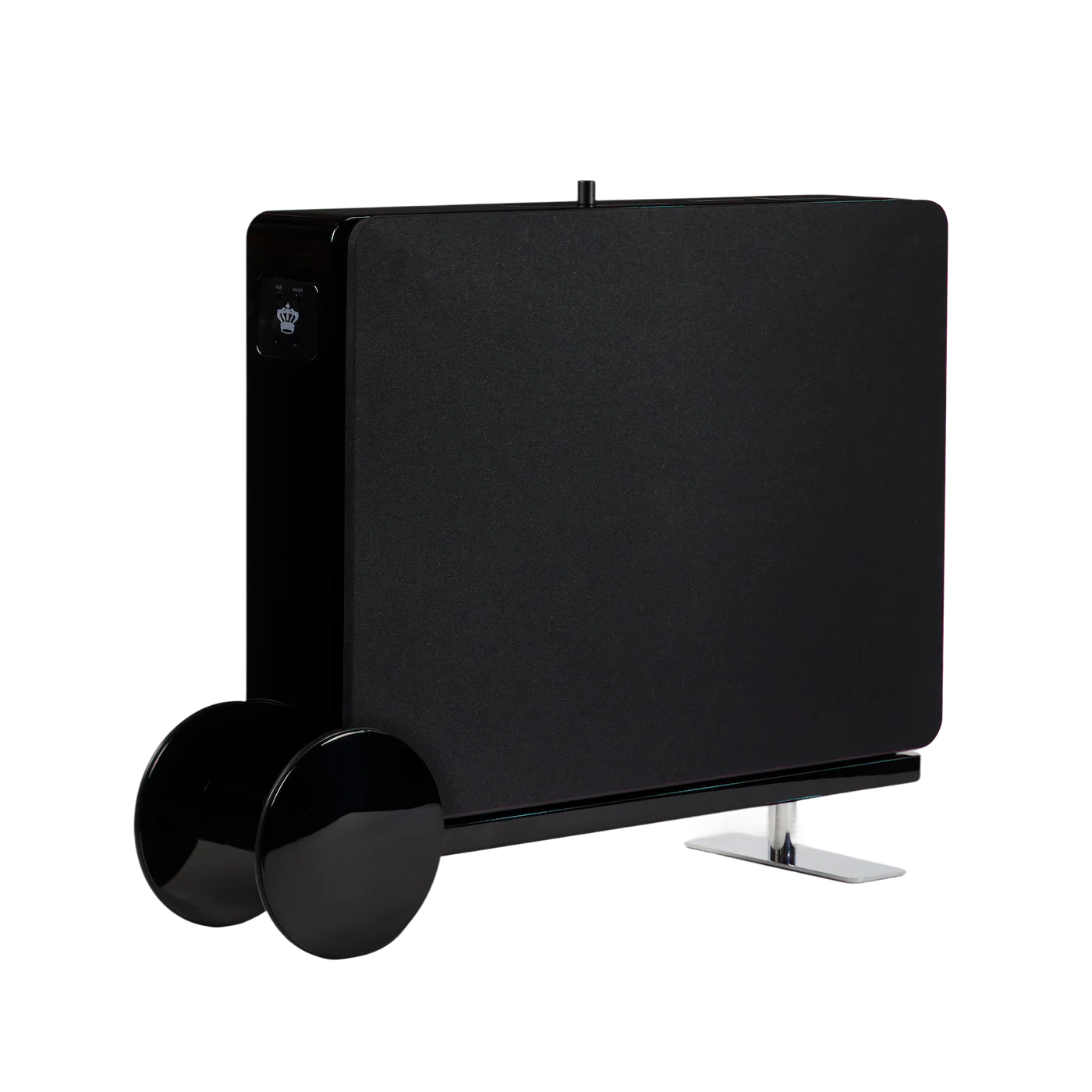

Optional Cart for Flexible Placement

Deep Bass, Minimal Space

REL Performance in an Ultra-thin Form

Traditional subwoofers often demand significant floor space to produce deep, powerful bass. PL-2 takes a different approach. By working in close relationship with the wall behind it, Planar uses boundary effect coupling to make the wall part of the acoustic system projecting bass into the room with scale, depth, and authority that feels far larger than the product itself.

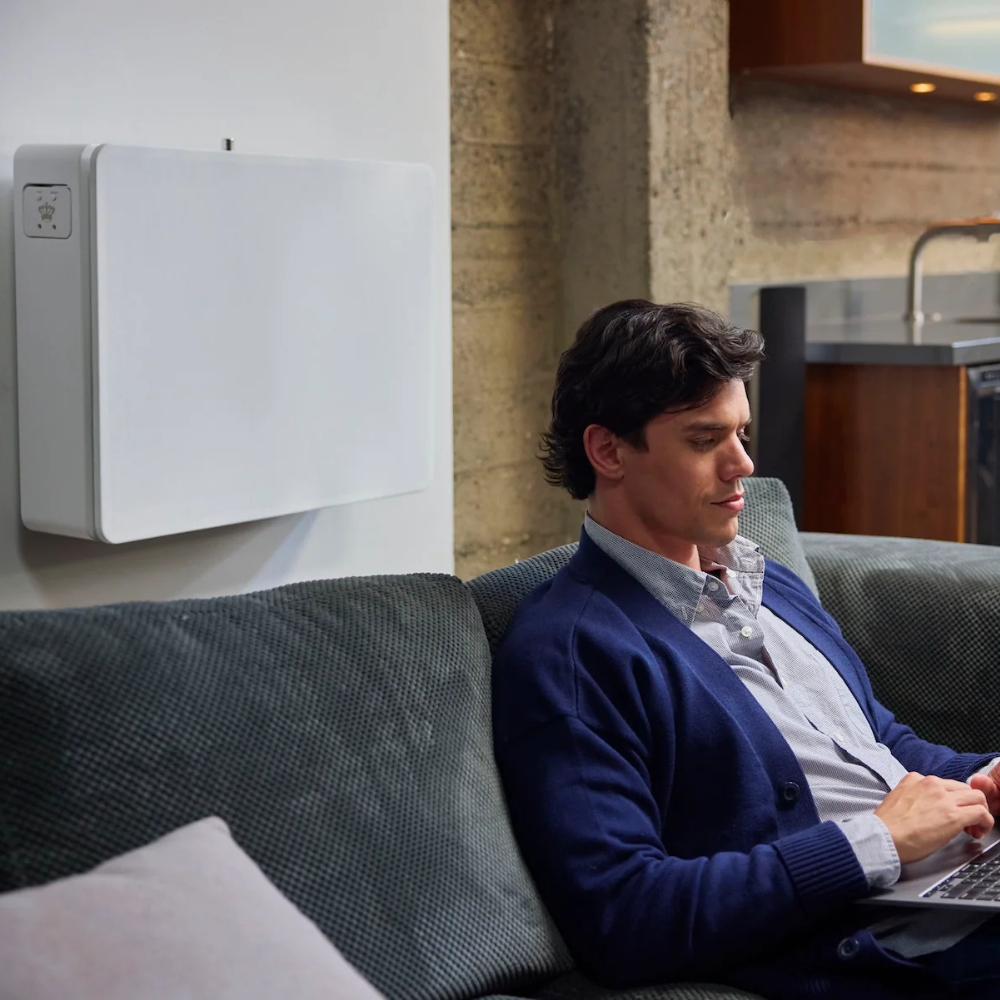

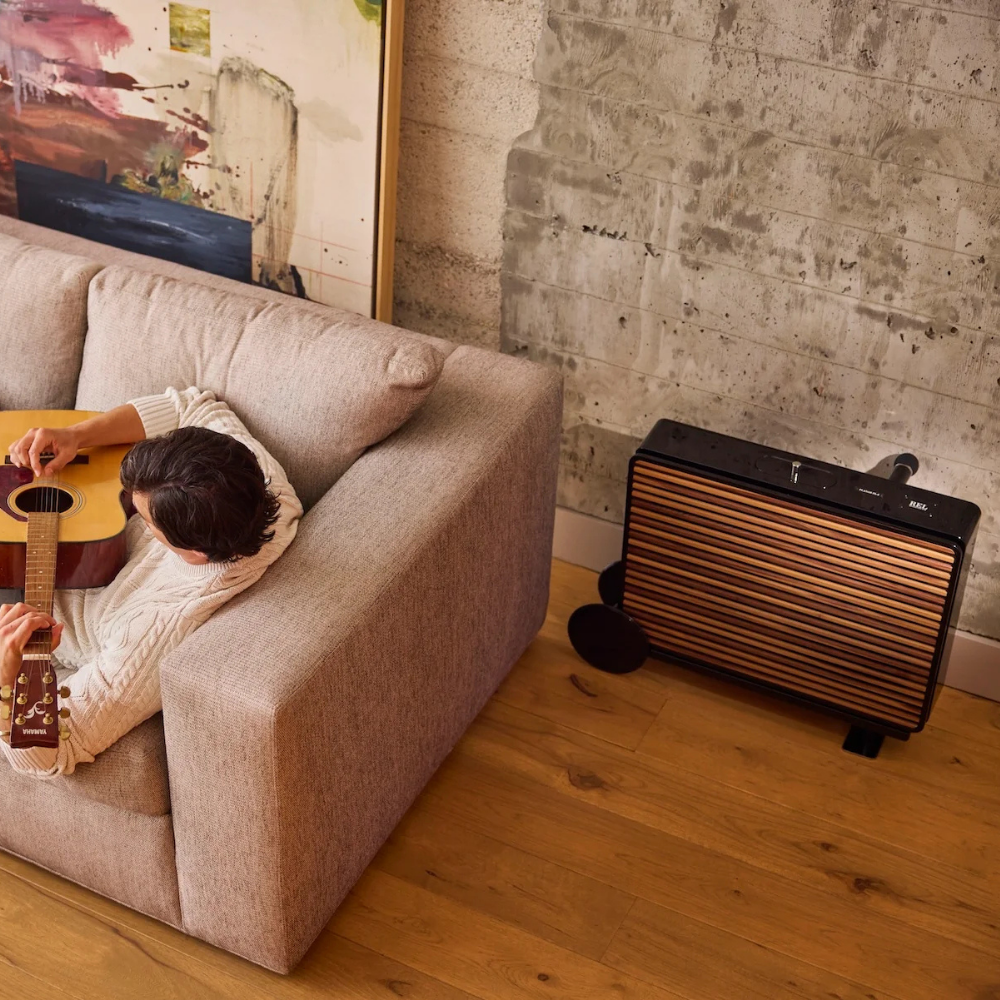

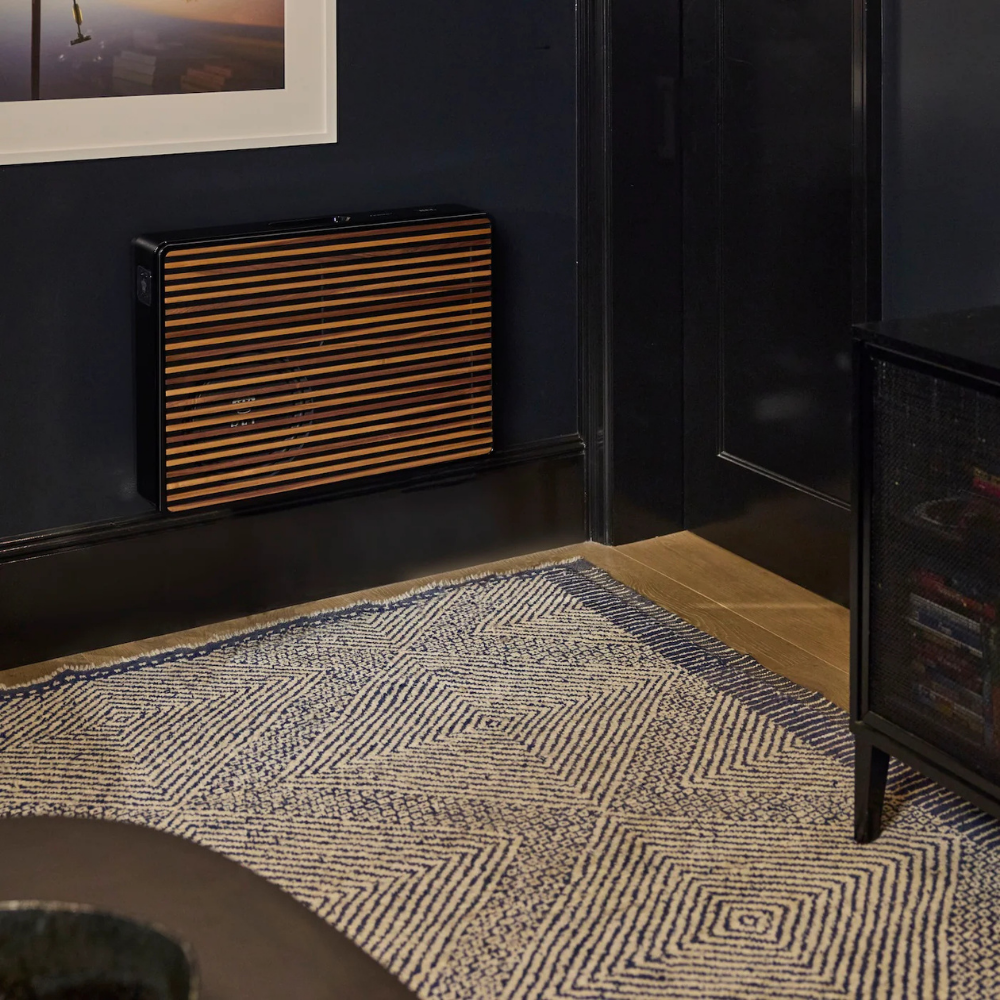

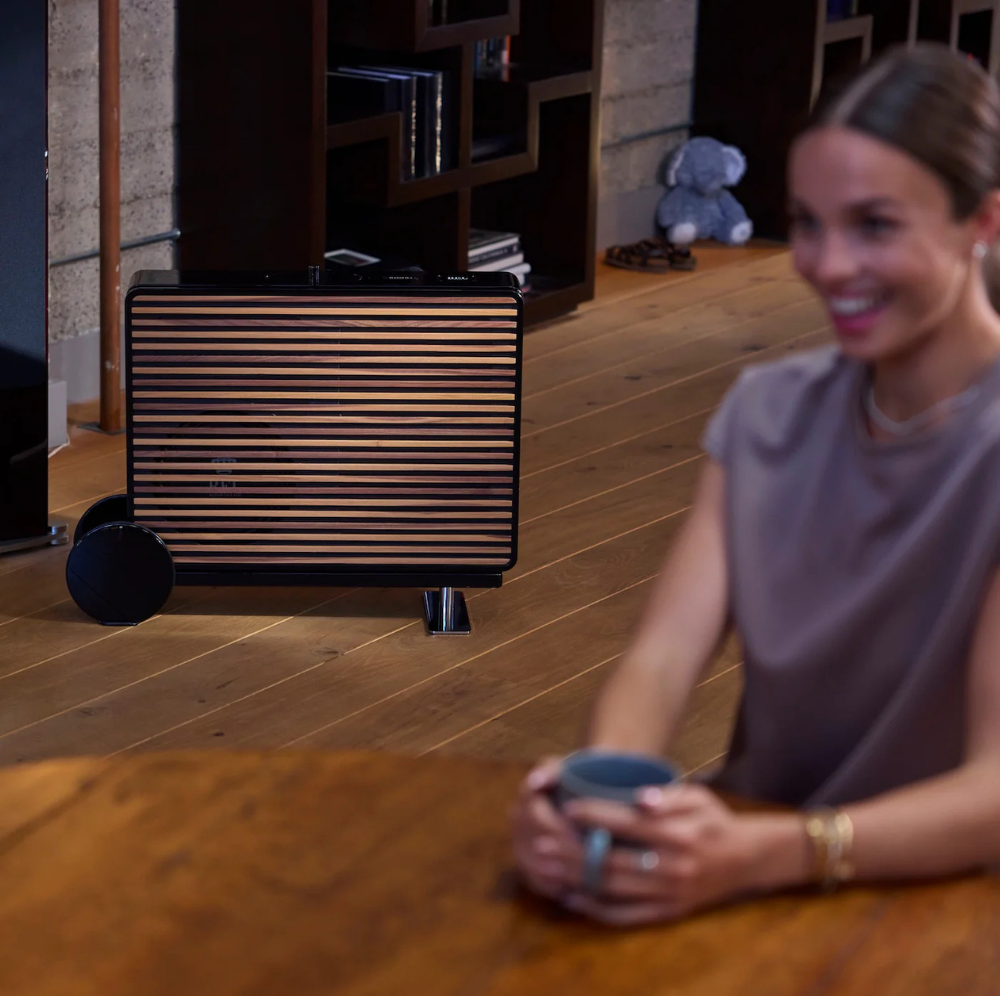

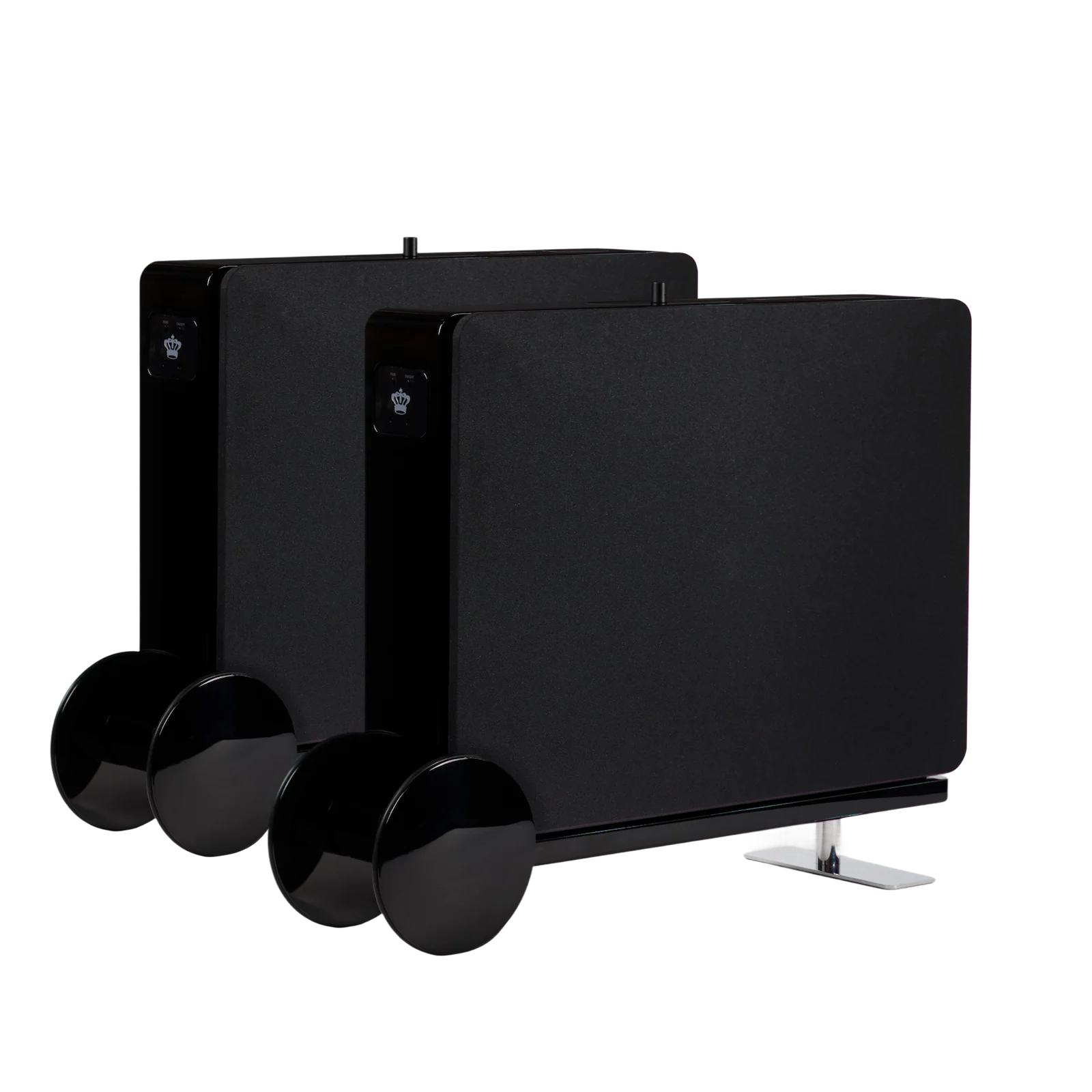

Whether mounted directly on-wall or placed close to the wall using the optional Cart, PL-2 delivers powerful, immersive performance for modern rooms and open living spaces where traditional subwoofers struggle to integrate gracefully.

Designed for Modern Living

Planar PL-2 was designed to deliver true REL performance from an ultra-thin form that integrates naturally into modern spaces. Its slim proportions, flowing radiused edges, and deep lacquer finishes allow it to occupy spaces where traditional subwoofers often feel intrusive. Every detail was carefully considered, from the recessed controls and concealed cable management to the optional hardwood grille upgrades that further elevate its architectural presence.

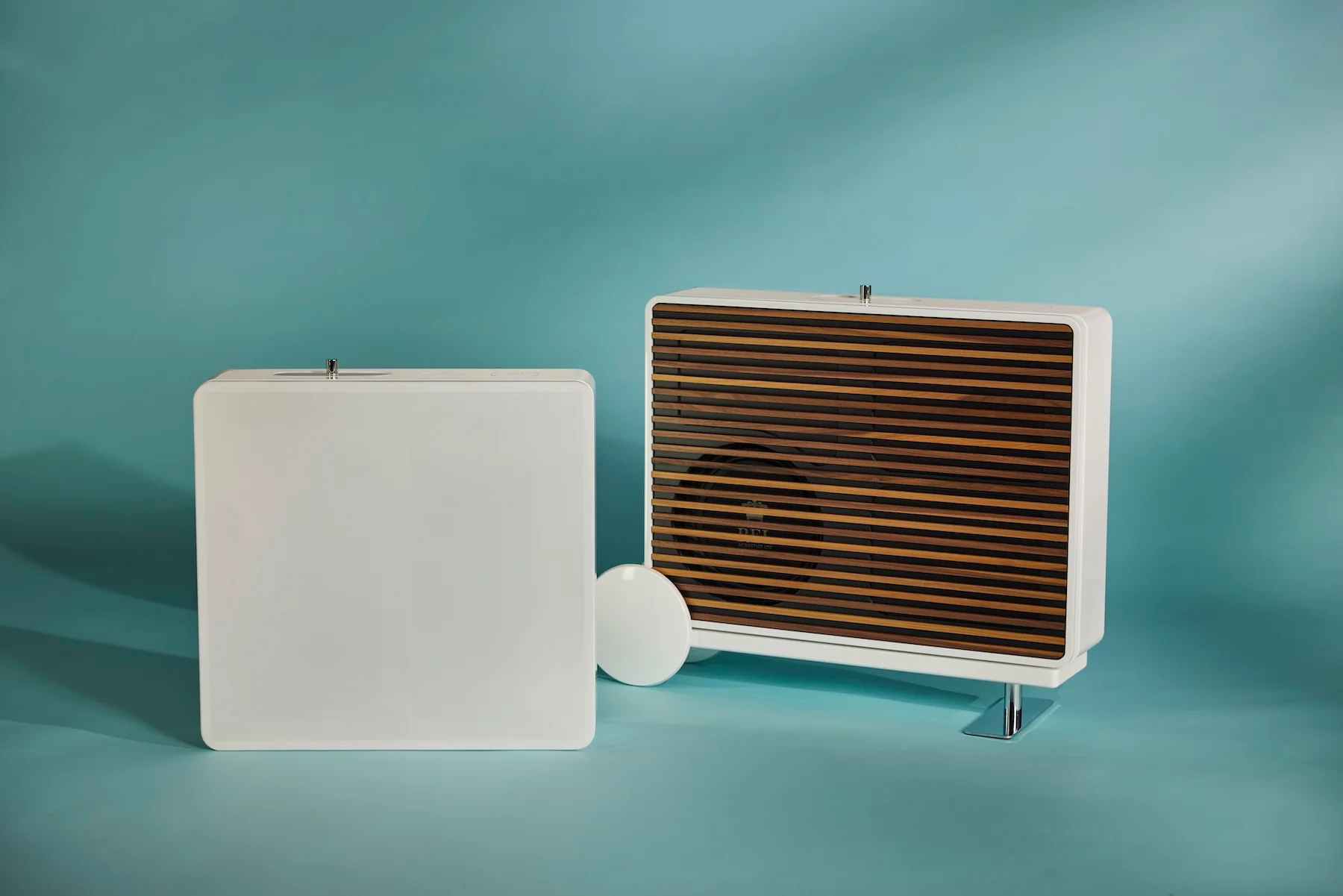

Available in black or white lacquer finishes, Planar PL-2 combines elegant industrial design with purposeful engineering, creating a subwoofer designed not only to sound extraordinary, but to live beautifully within the room itself.

To help manage the interaction between the cabinet and the wall, Planar incorporates REL’s VIMAR (Vibration Isolation Material and Resonance Control) system. Integrated into the mounting brackets, VIMAR reduces the transfer of unwanted energy into the wall while preserving the speed and integrity of the bass. The result is cleaner, more controlled low-frequency performance.

Flat Piston. Massive Scale

Developed exclusively for Planar, PL-2’s new 8” Flat Piston driver was engineered to deliver remarkable output from an ultra-thin cabinet. Producing deep, powerful bass from a driver barely 80mm deep required an entirely new approach to excursion, rigidity, and control. The result is fast, dynamic bass that extends to 27Hz, reaching more than an octave below the fundamental range of many acoustic instruments while delivering the scale and authority expected from far larger subwoofers.

Boundary-Coupled Bass

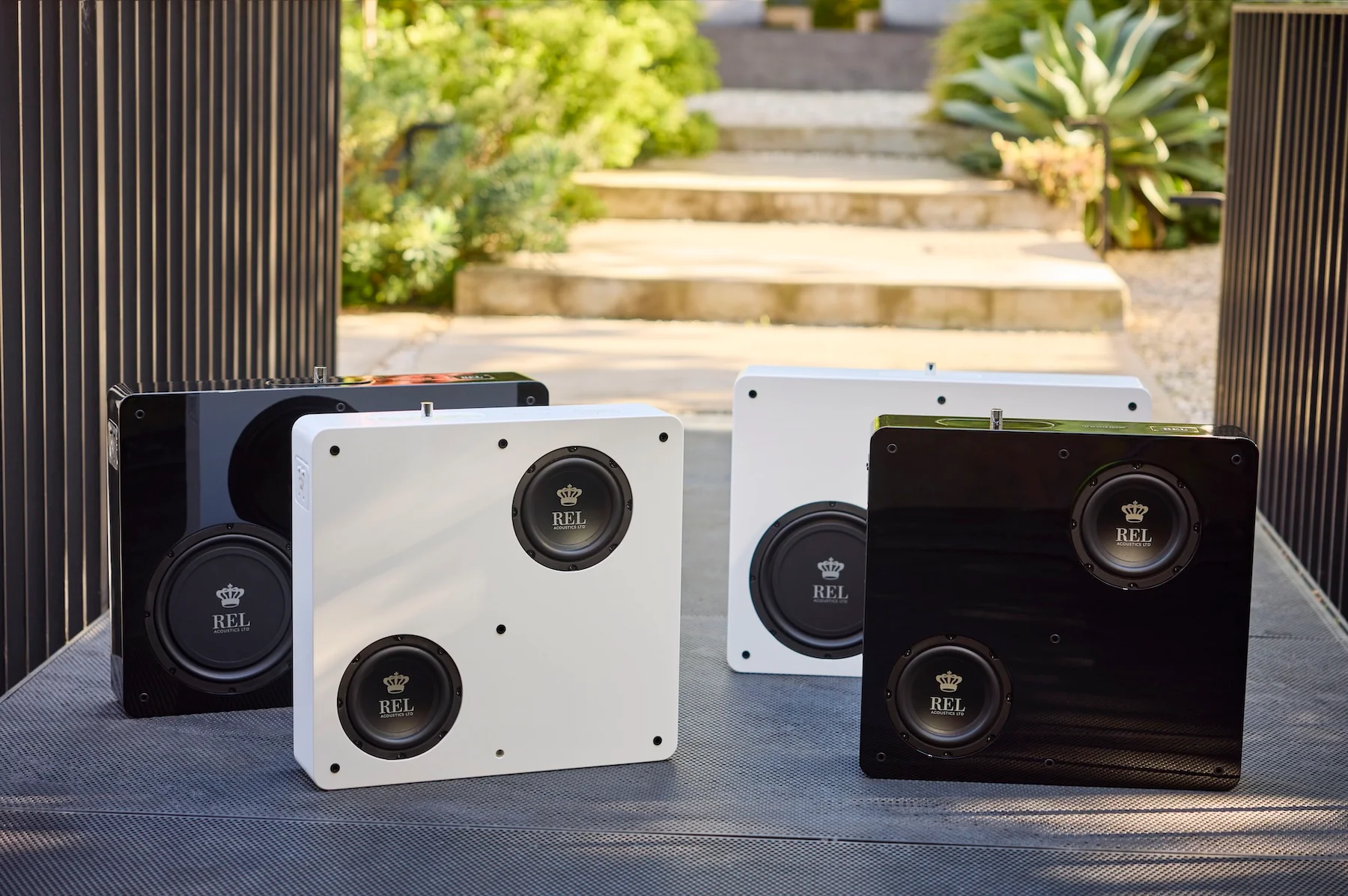

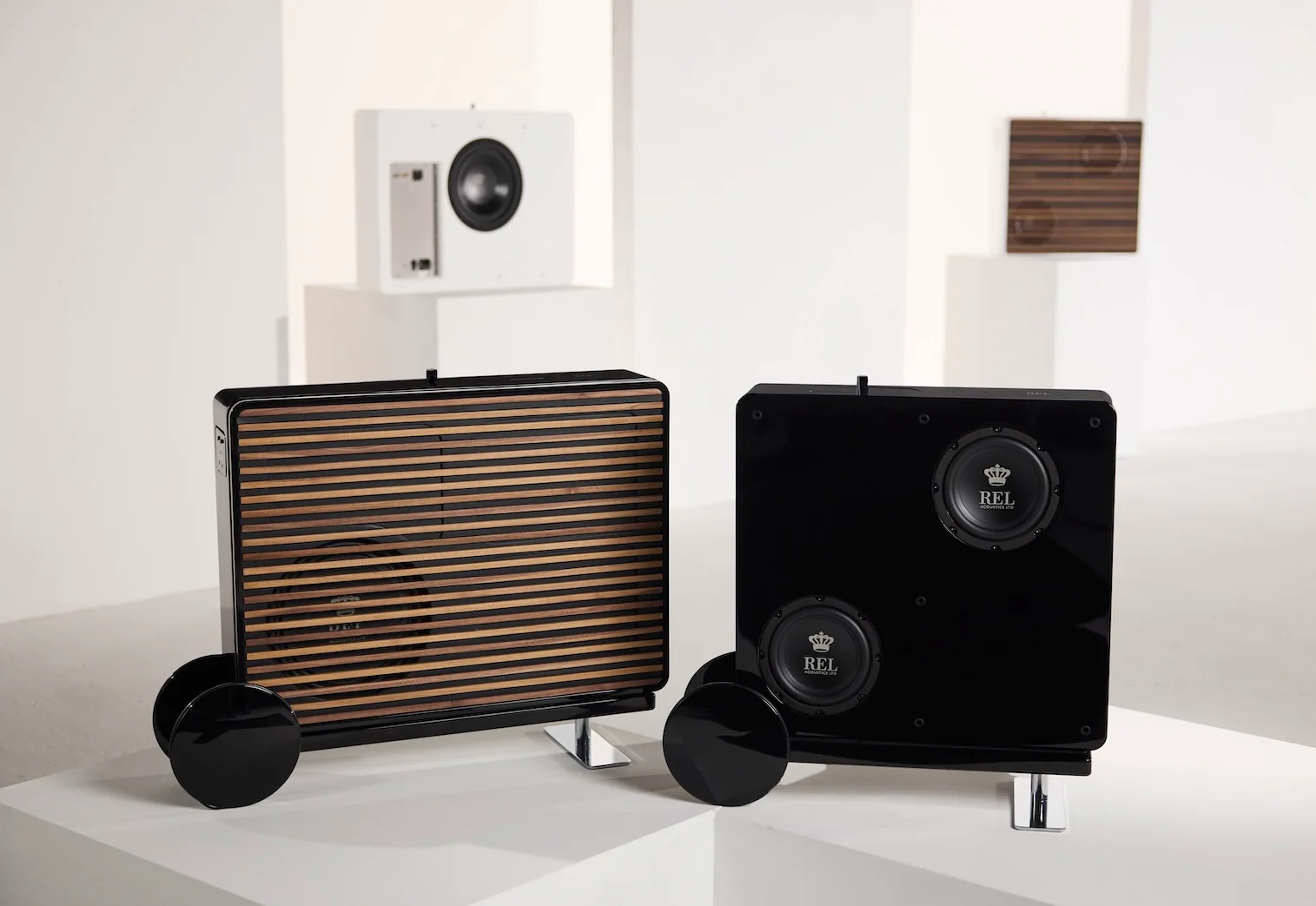

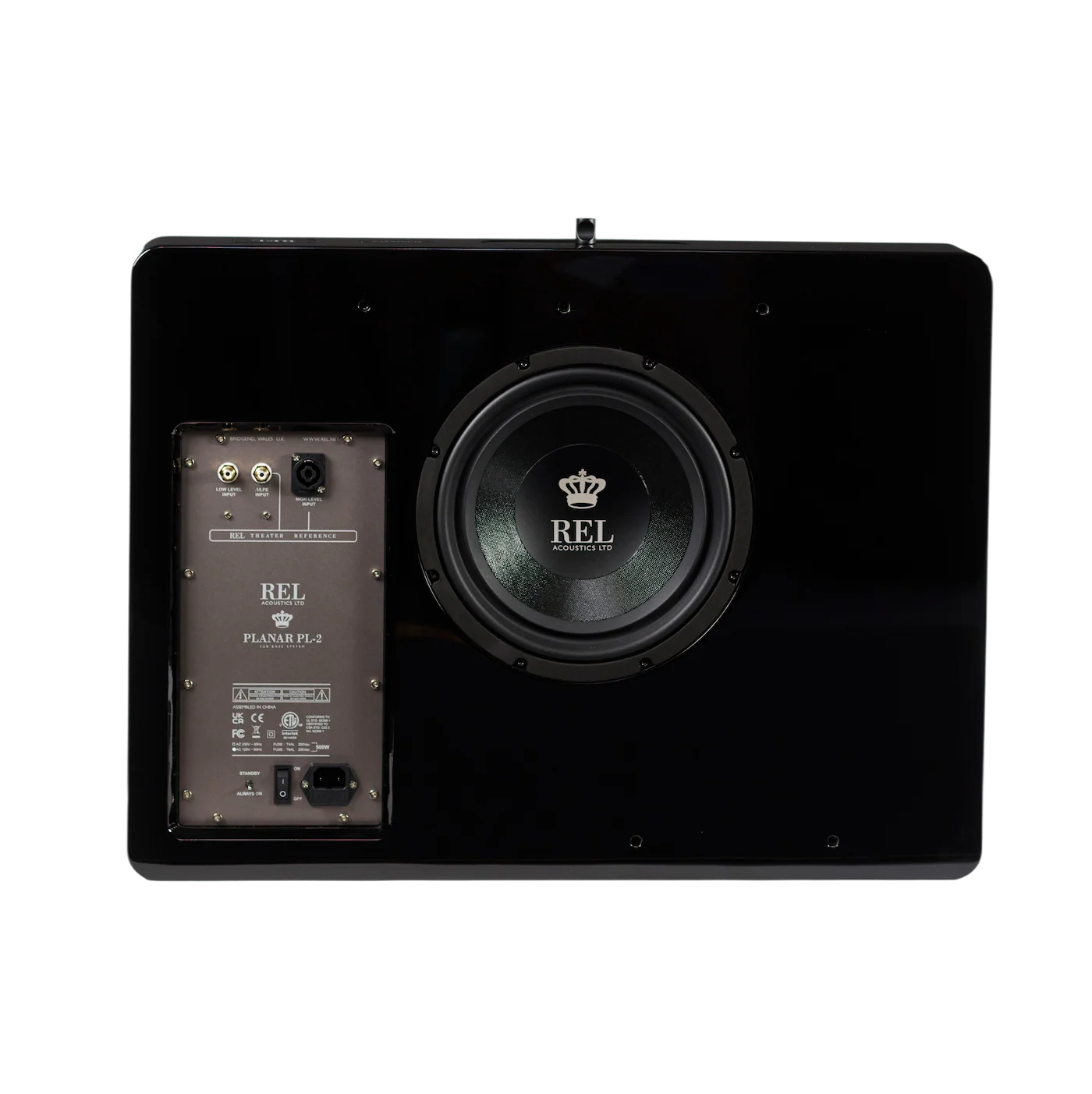

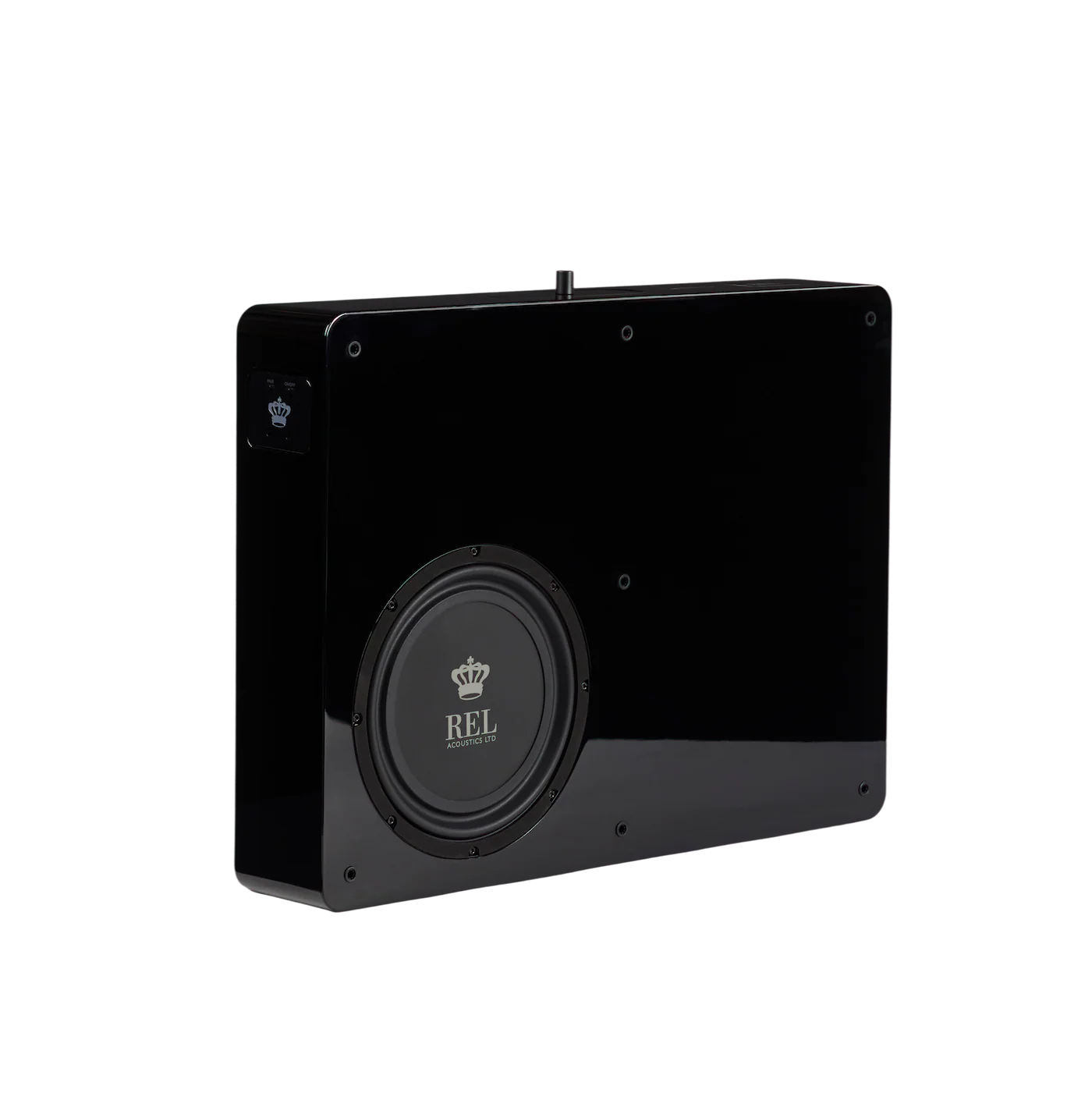

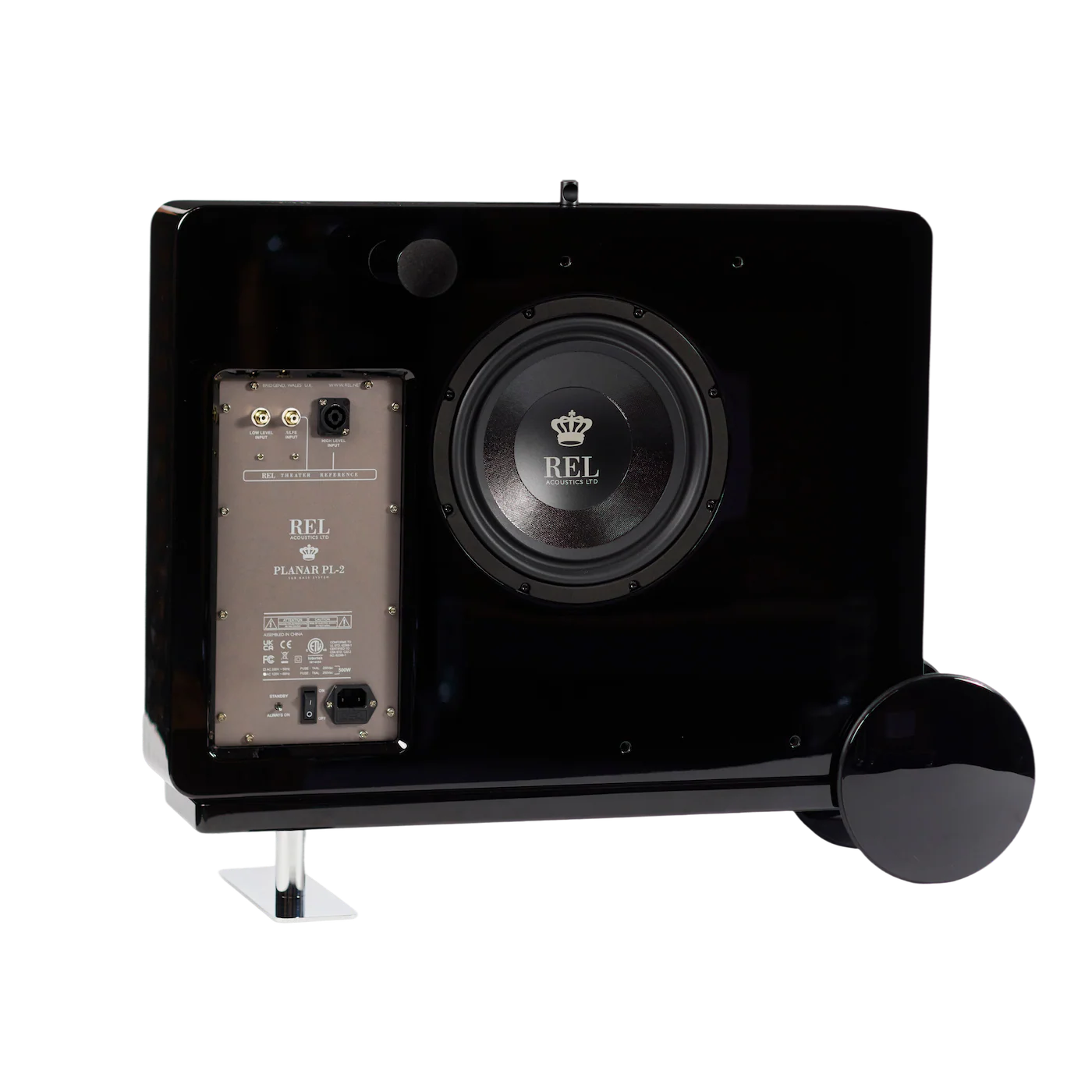

A specially tuned 10” long-stroke passive radiator, featuring a lightweight paper cone reinforced with a rigid aluminum center cap, fires toward the wall behind Planar, using boundary effect coupling to reinforce and expand low-frequency output. Working in close relationship with the wall surface, PL-2 transforms the wall into part of the acoustic system, producing deep, room-filling bass and remarkable scale from an ultra-thin form.

The result is bass that feels effortless, expansive, and far larger than the cabinet itself suggests.

Effortless Power, Proven Reliability

PL-2 is powered by a 550-watt Pure Class D amplifier engineered to deliver effortless dynamics and exceptional control from an ultra-thin platform. Proven across thousands of REL subwoofers, this latest generation design combines high current delivery with long-term reliability, allowing PL-2 to produce fast, powerful bass with remarkable composure. Conservatively rated at 500 watts, the amplifier delivers a clean 600 watts on REL’s test bench under demanding conditions.

The result is an amplifier capable of delivering the scale and impact demanded by both music and theater while remaining efficient, cool-running, and dependable over years of use.

Filtered to Perfection

REL’s fully analog input filters are central to Planar’s natural, seamless sound. By avoiding unnecessary digital processing, PL-2 preserves speed, timing, tonal balance, and the organic character that define great music and theater reproduction.

At the center is REL’s renowned High Level Connection, allowing Planar to receive the same signal fed to your main speakers for exceptional integration across the entire system. Combined with our all-analog PerfectFilter circuitry, PL-2 delivers deep, extended bass with remarkable clarity, speed, and balance.

For dual-use music and theater systems, dedicated High Level and .1/LFE inputs allow both signals to operate simultaneously, preserving musical coherence while delivering the full impact of cinematic low-frequency effects.

Wireless Freedom Included

Unlike traditional subwoofers that require long visible cable runs, Planar PL-2 includes Airship Direct wireless technology as a fully integrated part of the design. By eliminating the need for signal cables, Planar preserves the openness and visual simplicity of modern living spaces while maintaining the speed, dynamics, and musicality expected from a REL.

The compact receiver integrates directly into a concealed rear-panel compartment and arrives pre-paired from the factory for effortless setup. No apps. No software updates. No complicated configuration. Simply connect power, position Planar, and experience full-range REL performance with the freedom of uncompromised wireless operation.

Just connect power, place it, and experience full-scale REL performance wirelessly.

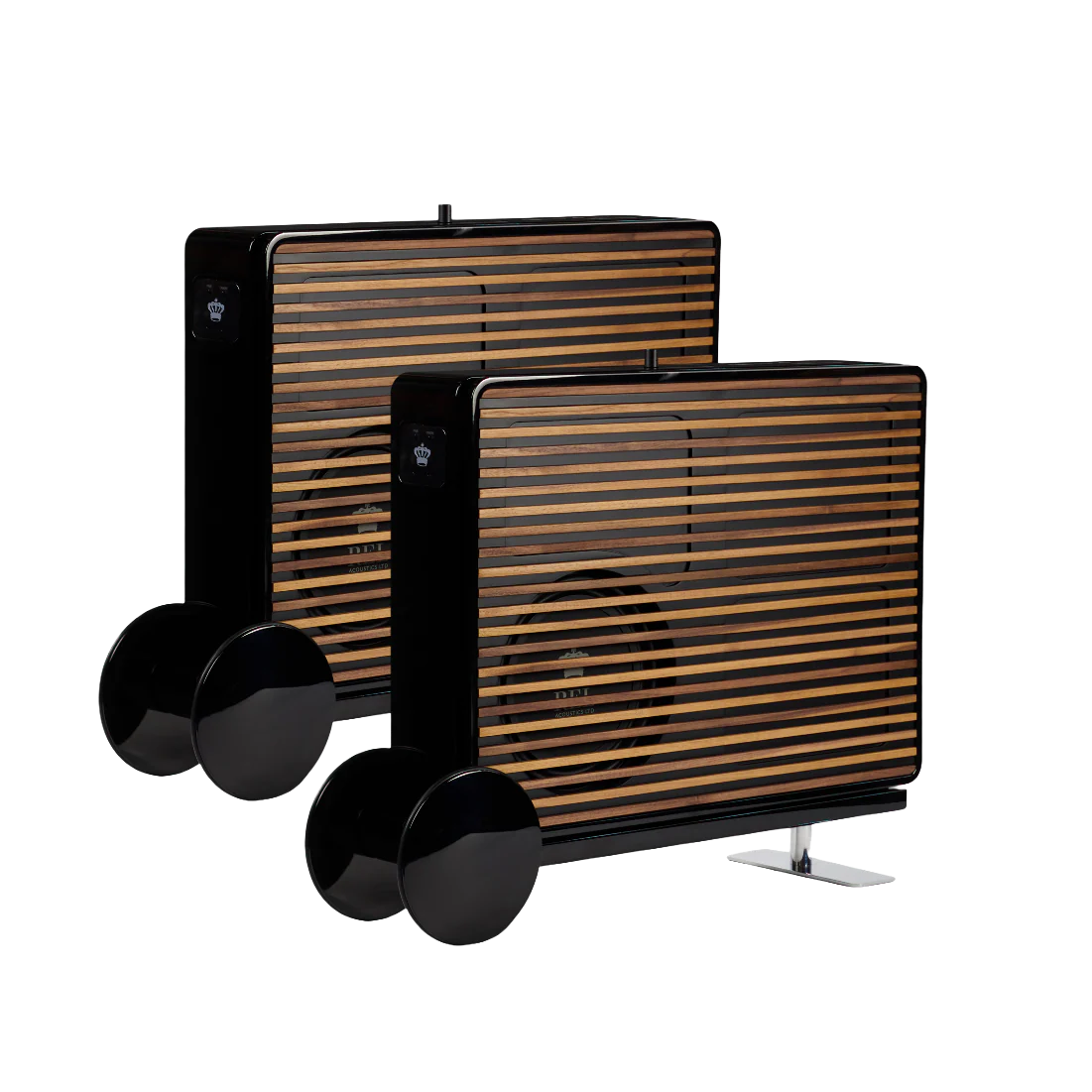

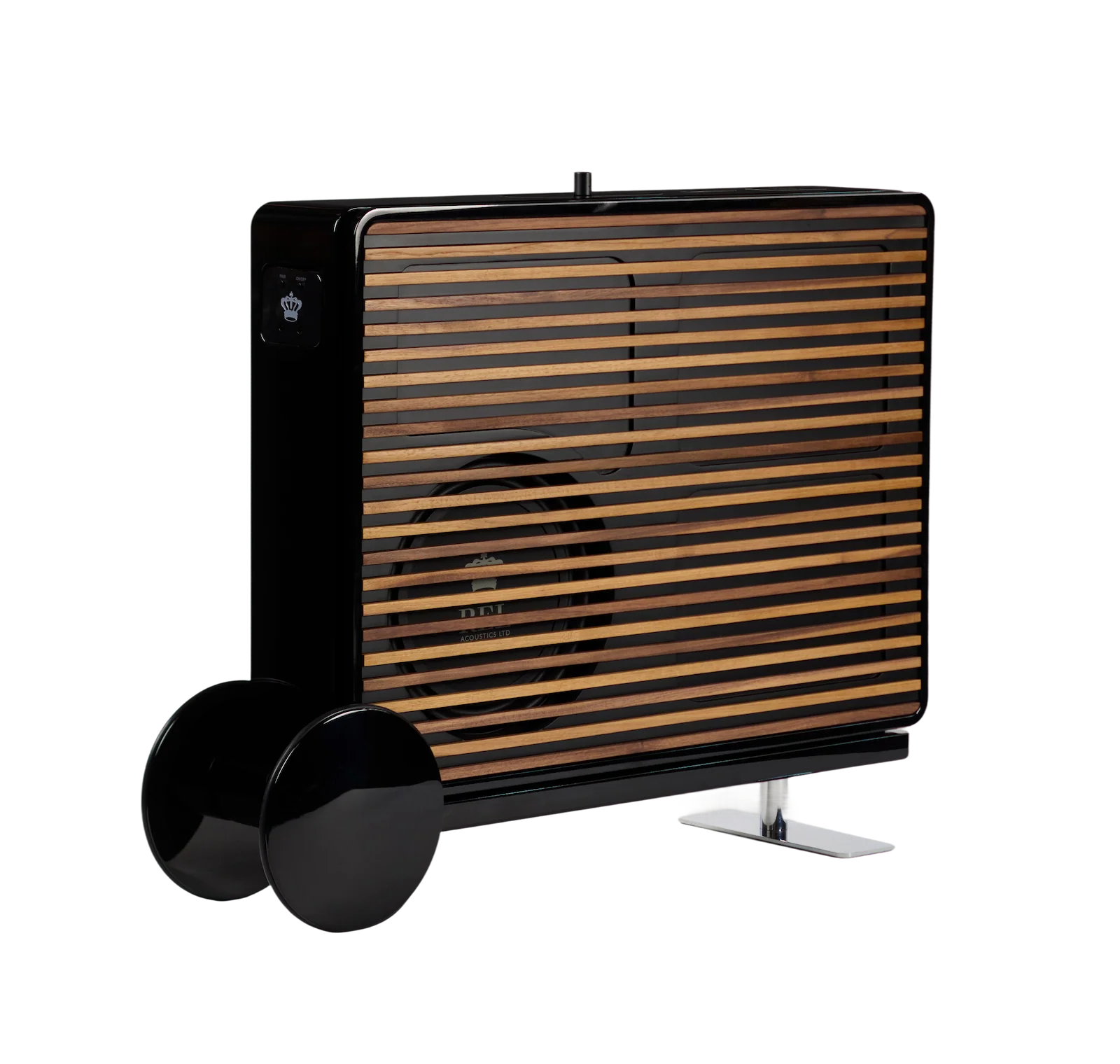

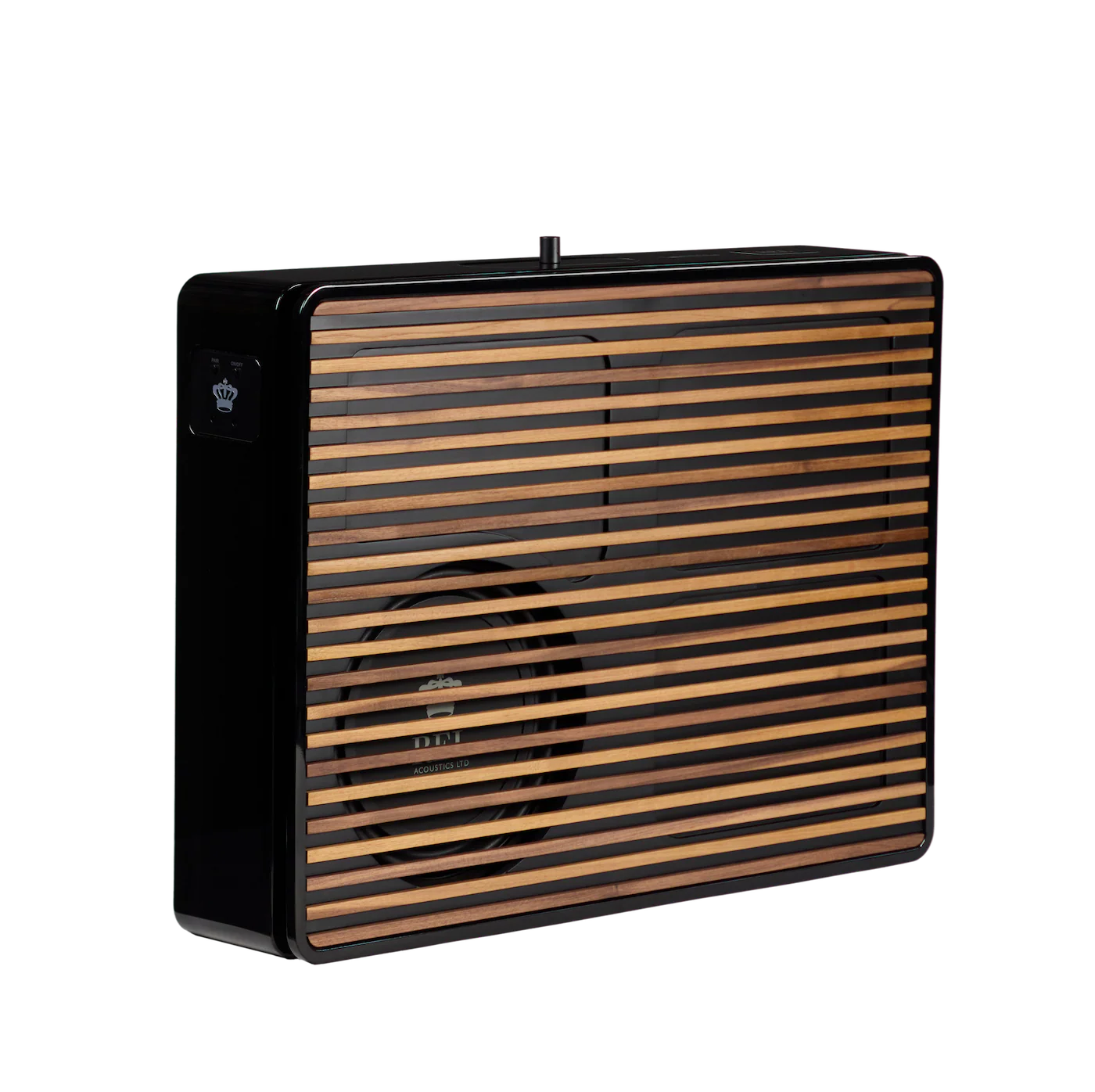

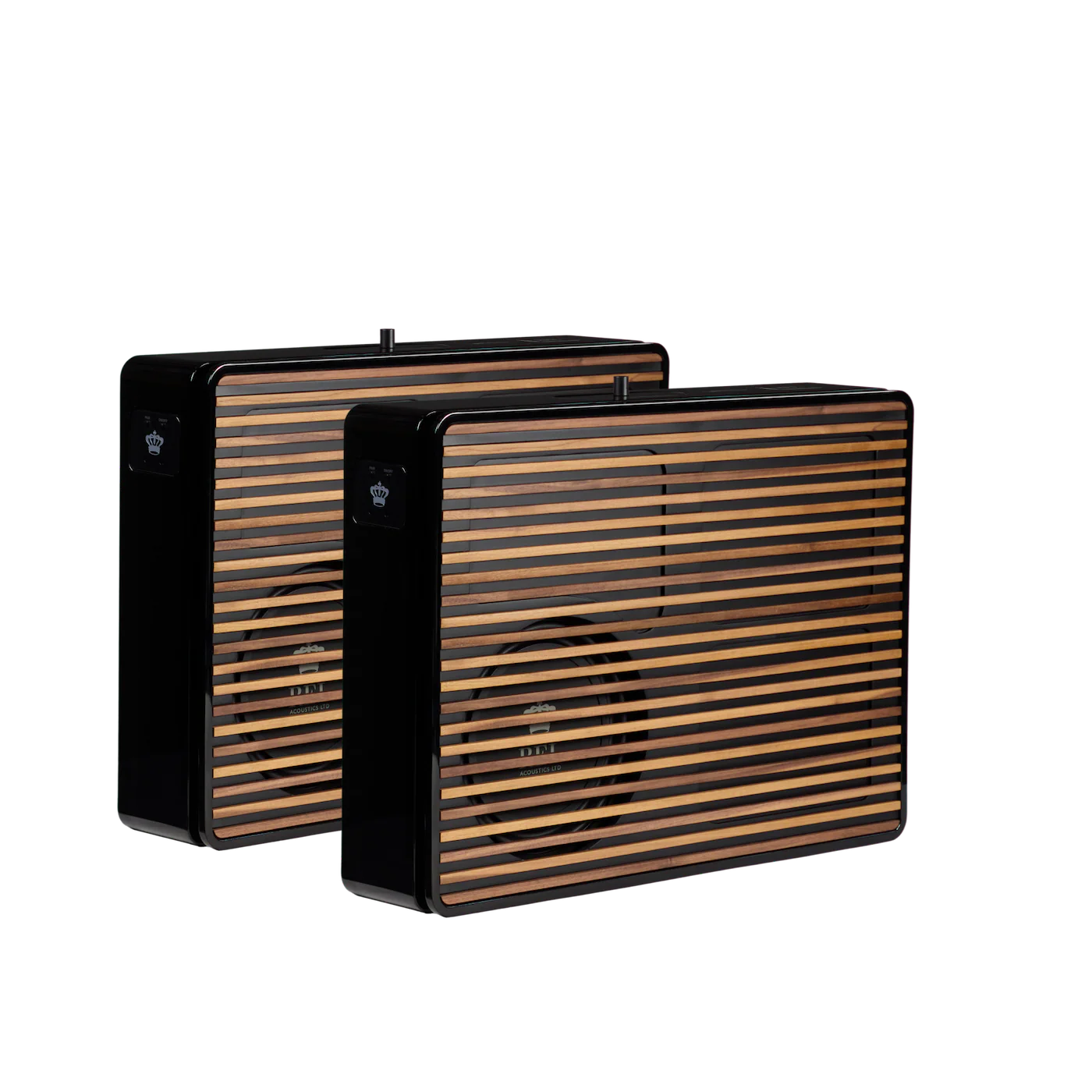

*Optional premium wood grille upgrades are available at extra cost.

Availability: Upon Order.

2 colors

Piano Black
Gloss White

€3,399.00

Qty:

INTERESTED IN PRODUCT

Specifications

Color
Piano Black

Active Driver Size & Material
8in. (205mm) FlatPiston active long-throw, steel chassis

Passive Radiator Size & Material
10 in. (250mm), FibreAlloy™ cone, steel chassis

Low frequency extension
-6dB at 24 Hz, in room

Type
(1) Front-firing active woofer, (1) Rear-firing passive radiator

Input Connectors
High Level Neutrik Speakon, Low Level RCA, LFE RCA

Power Output
550 watts (RMS)

Amplifier Type
Pure Class D

Wireless Capability
Built-in Wireless

Dual Parametric Filter
No

Fully Electronic Set Safe
Yes

D.C. Fault
Yes

Output Short
Yes

Fuses
4A for 230V operation, 8A for 120V operation

Weight
20.25 kg

Height
480 mm

Width
650 mm

Length
144 mm

Product Files

Owners manual

REL Acoustics Planar Manual

Stereofile

REL Acoustics Planar PL-2 Brochure
