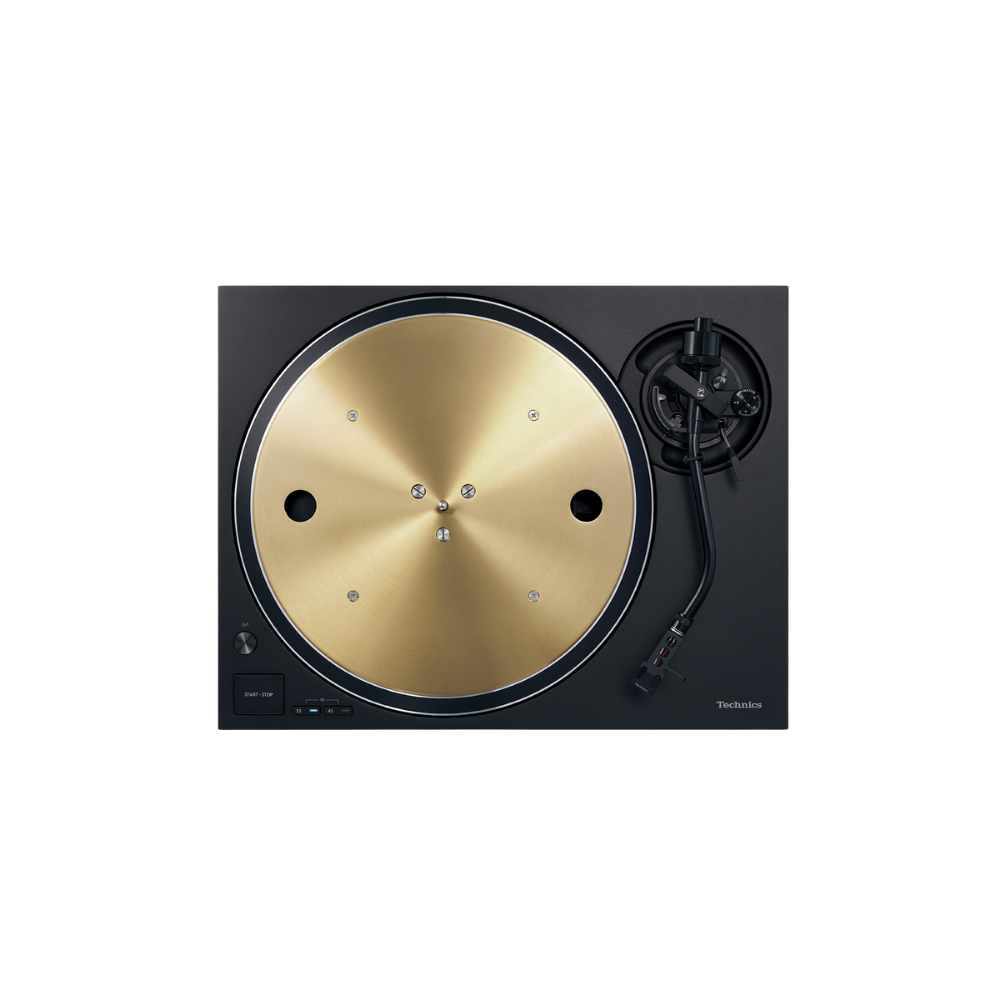

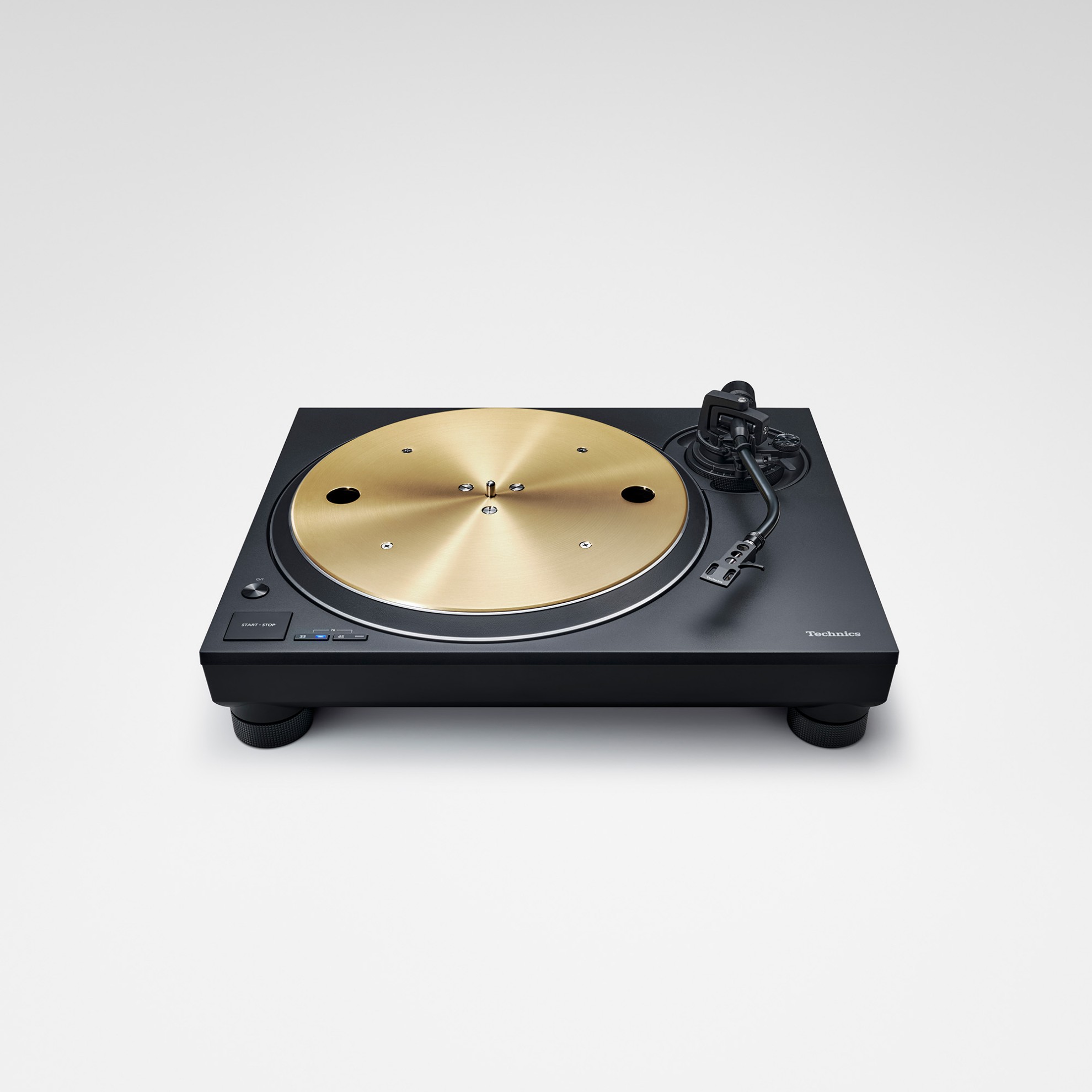

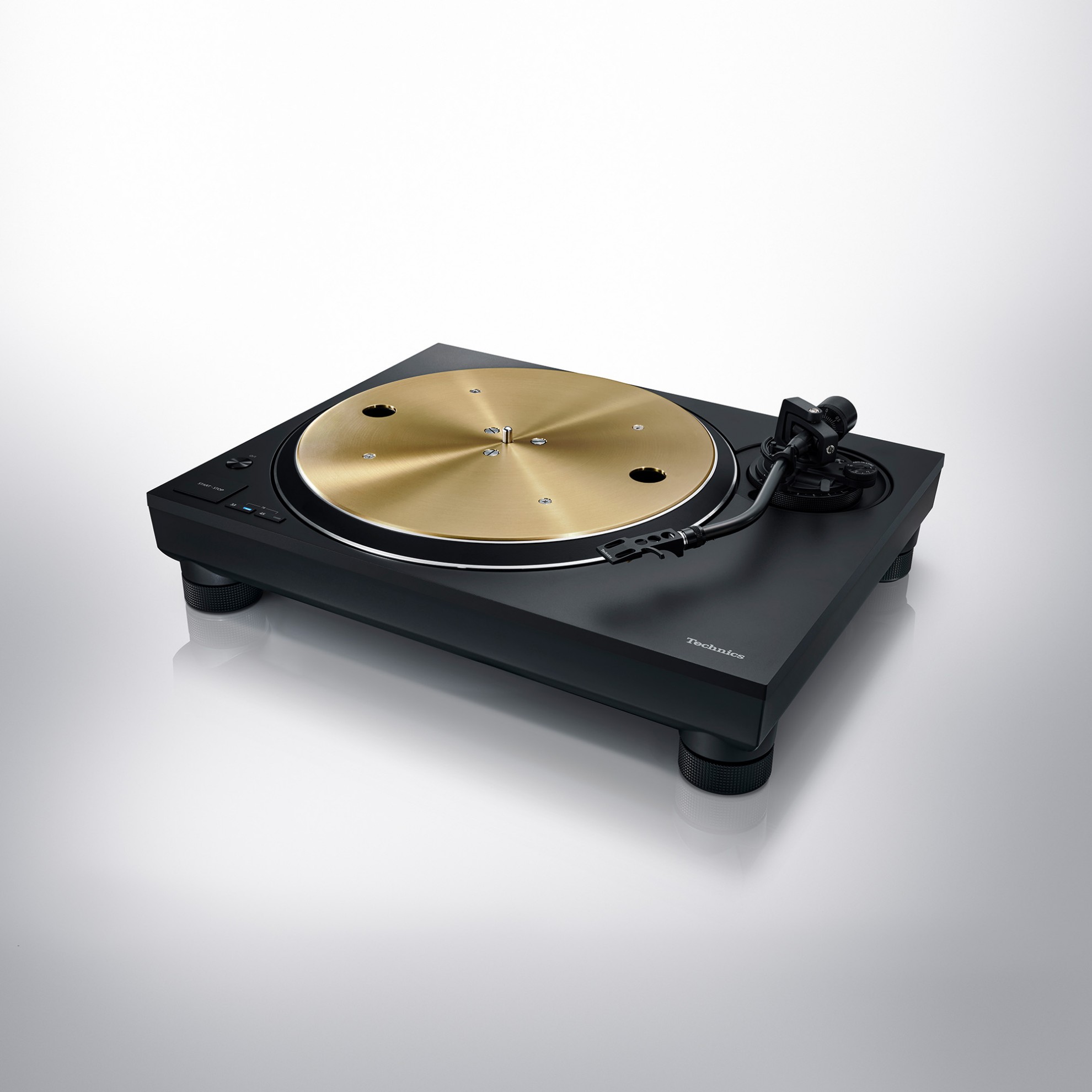

SL-1300G Grand Class Direct Drive Turntable

Technics

・Coreless direct drive motor achieving stable rotation

・ΔΣ-Drive suppresses vibrations from the motor for smoother, more accurate rotation

・Anti-vibration structure with a three-layer platter and a two-layer chassis

・Low-noise, low-voltage power circuit and a switching power supply

・Tonearm achieving high Initial-motion sensitivity

・High-rigidity body and high-damping silicon insulators for smooth sound and isolation from various vibrations

Features

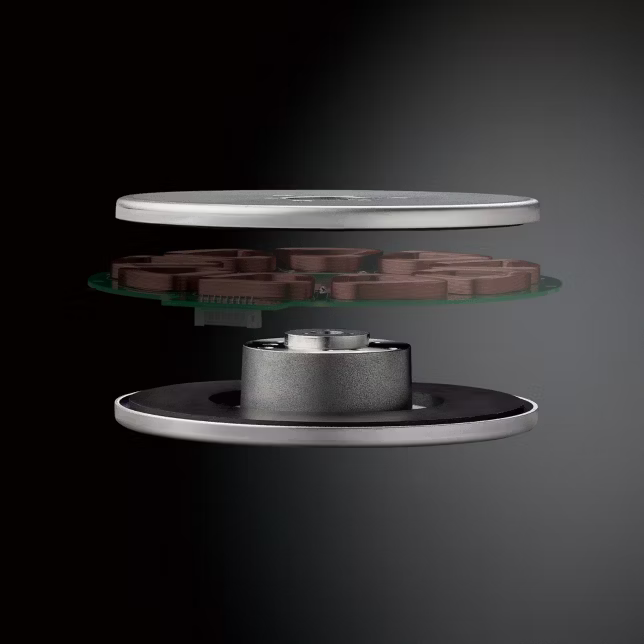

Coreless Direct Drive Motor Achieving Stable Rotation

In the SL-1300G, the use of a coreless direct-drive motor with no iron core eliminates uneven rotation of the turntable known as cogging. Also, the twin-rotor construction reduces the bearing load while maintaining high torque, and reduces minute vibrations during rotation. Furthermore, the SL-1300G’s motor was redesigned to eliminate subtle vibrations that could affect sound quality. To improve rigidity, the same reinforcement pattern as the Reference Class SL-1000R/SP-10R was used for the coil mounting base.

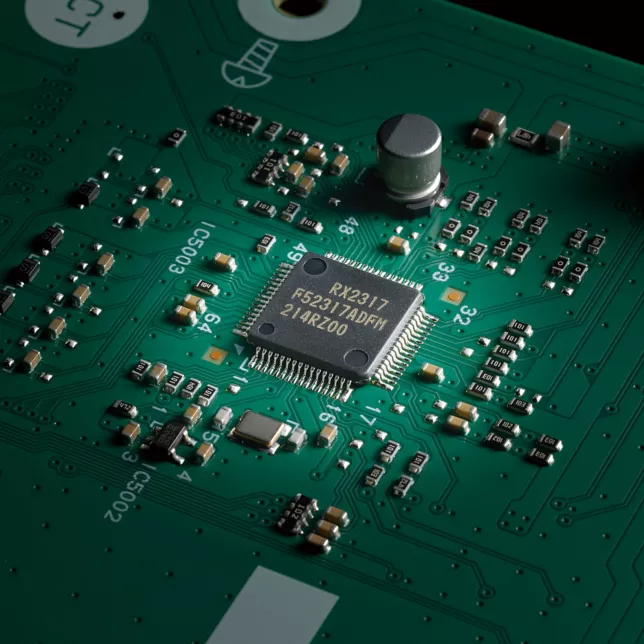

Motor-Drive System, ΔΣ-Drive (Delta Sigma Drive)

Unlock a realm of audio precision with the ΔΣ-Drive – a state-of-the-art system harnessing Technics’ expertise in PWM signal processing. In addition to reducing harmonics, the drive suppresses vibrations from the motor for smoother, more accurate rotation, ensuring a rich reproduction of the music.

Vibration Resistance Design

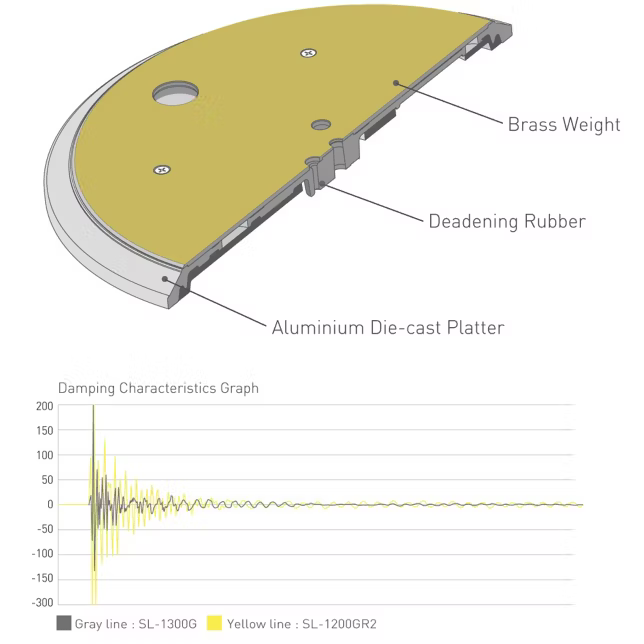

Three-layered Turntable Platter

The turntable has a three-layered construction with a rigidly combined brass and aluminium die-cast platter. With a deadening rubber covering its entire rear surface to eliminate unnecessary resonance, thereby achieving high rigidity and vibration damping. This delivers smooth rotational stability and inertial mass surpassing the SP-10MK2, the direct-drive turntable standard used by broadcast stations worldwide, as well as having more than twice the inertial mass of the SL-1200MK5.

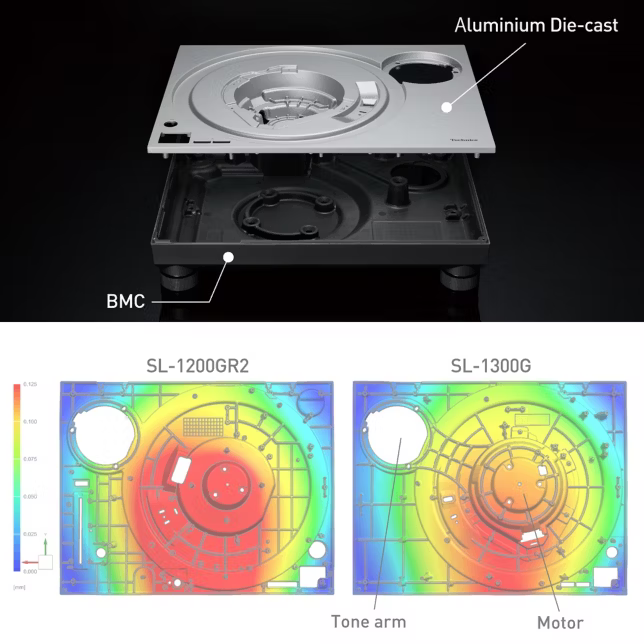

Two-layered Cabinet Construction

The SL-1300G ensures high rigidity by using a body with a two-layered construction that solidly unifies the BMC and the aluminium die-cast chassis. Reinforcing ribs have been added between the motor/tone arm on the top panel. This improves rigidity and vibration damping characteristics.

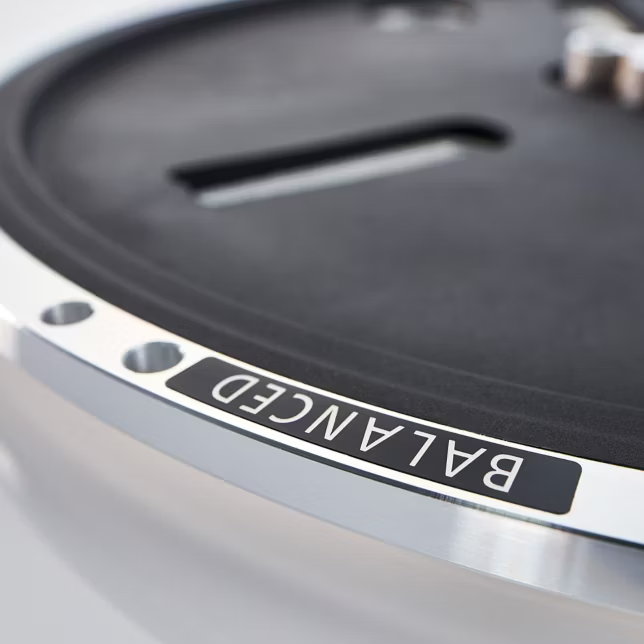

High-level Balance Adjustment

When the weight distribution of the turntable is uneven, excess vibration or noise occurs during rotation, which causes degradation in sound quality. Therefore, the balance of the turntable is adjusted at the factory by using specialized high-precision balance adjustment equipment for each and every item after the turntable is assembled. Turntables that have undergone adjustment are labelled with a sticker reading “BALANCED” to indicate that adjustment has been done.

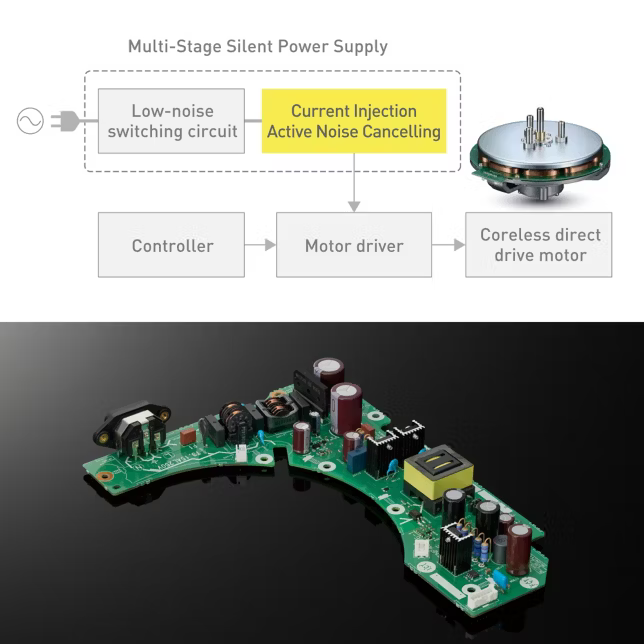

Multi-Stage Silent Power Supply

Low-Noise Switching Circuit

Use of a high-speed switching power supply ensures a stable supply capacity and less ripple and humming. Applying a switching power supply to a turntable eliminates the need for a large transformer and countermeasures for the ensuing mechanical vibrations. A switching frequency of above 100 kHz limits the impact of noise on the music playback bandwidth.

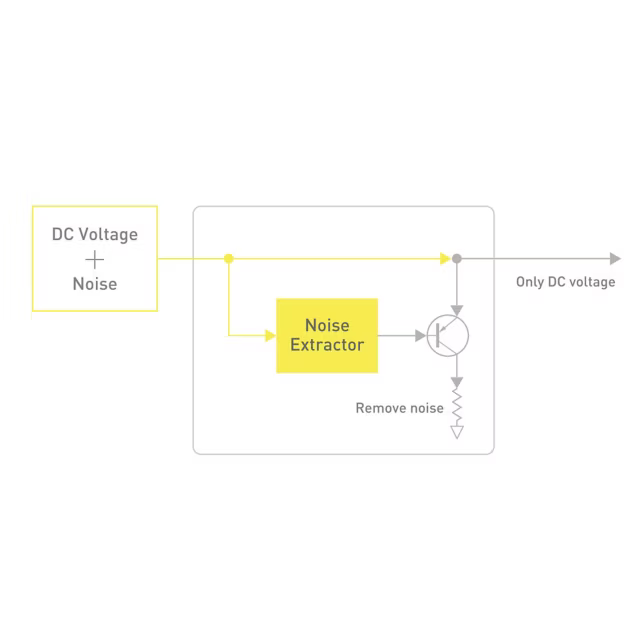

Current Injection Active Noise Cancelling

This technology combines a noise detection device with an error amplifier. It detects residual noise in the power supply and applies an inverse phase current to remove noise components. It removes low frequency noise more effectively than a regulator to ensure a more ideal power supply.

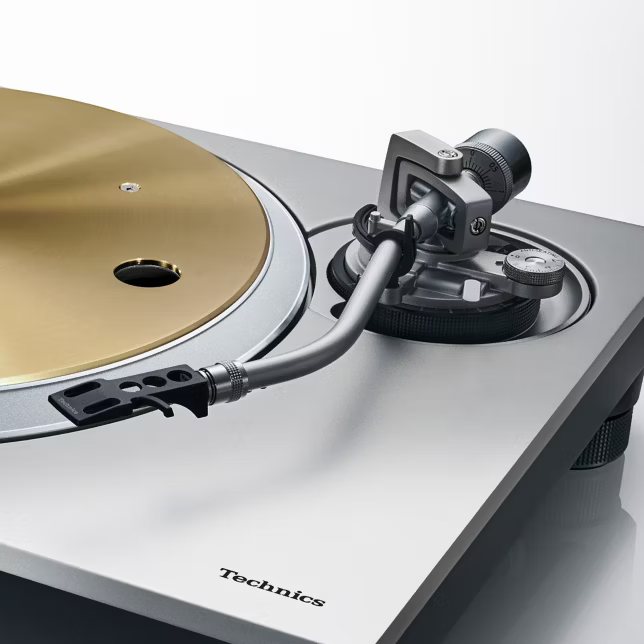

Tonearm Achieving High Initial-Motion Sensitivity

The tonearm, a crucial component for precise reading, tracks the record's rotation. Inherited from Technics, it employs a lightweight, rigid aluminium pipe in the traditional static-balance universal Sshape. Featuring a gimbal suspension and high-precision bearing, it achieves high initial-motion sensitivity through manual assembly by skilled artisans. This meticulous construction ensures accurate tracing of record grooves. Plus, it includes an auxiliary weight, providing flexibility for a variety of pickup cartridges.

Features for Clearer Sound

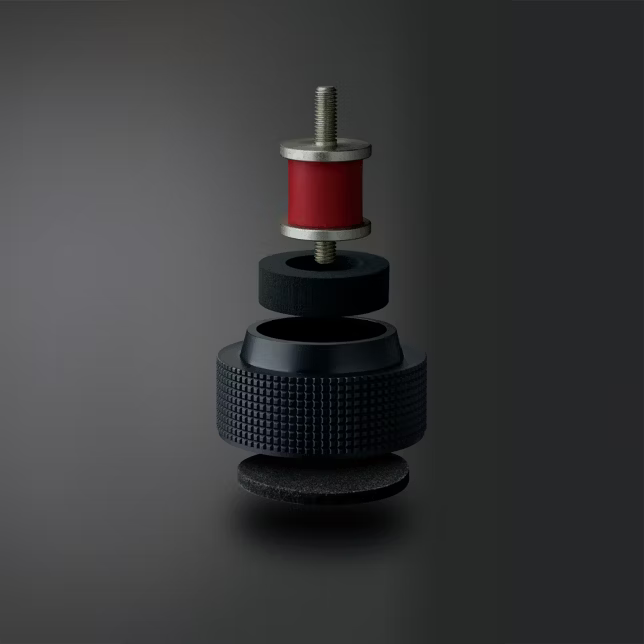

High-Damping Silicon Insulators

For the insulators supporting the body, the SL-1300G uses special silicon rubber that ensures high vibration damping characteristics and long-term reliability.

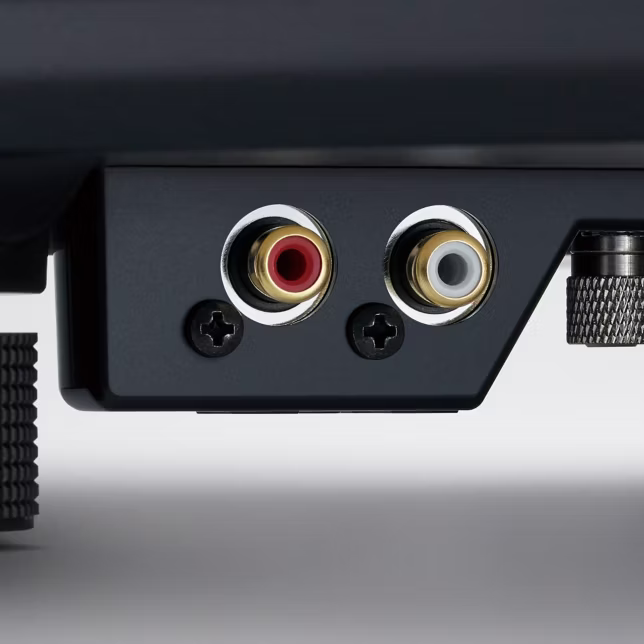

High-Quality Terminals

The turntable uses gold-plated phono terminals for detachable cables, while metal shielding construction inside the case reduces the effects of external noise.

2 colors/materials

Silver
Black

€3,125.00

Interest-free installments: Pay in of €260.42 € /month

3 payments of €1,041.67 € without credit card.

INTERESTED IN PRODUCT

Specifications

Color/Material
Black

Type
Direct Drive

Motor
Brushless DC motor

Speeds
33-1/3, 45 and 78* rpm * The turntable speed will be 78.26 rpm when set to 78 rpm.

Starting Torque
0.32 N・m (3.3kgf・cm)

Build-up Characteristics
0.7 s. from standstill to 33 1/3 rpm

Braking System
Electronic brake

Wow and Flutter
0.025% W.R.M.S.

Turntable Platter
Brass and aluminium die-cast combined, Diameter: 332mm, Weight: Approx. 3.6 kg (including a rubber mat)

Tonearm Type
Static Balance

Effective Tonearm length
230mm

Overhang
15 mm

Output
PHONO (Pin Jack) x 1, EARTH TERMINAL x 1

Power Supply
AC 220 - 240 V, 50/60 Hz

Weight
13 kg

Height
173 mm

Width
453 mm

Length
372 mm
