Bonn N8 PRO-CLK-EU

Silent Angel

Why Bonn N8 Pro?

Bonn N8 Pro was created for music lovers who want to build a dedicated “HiFi Ecosystem” and achieve the best possible audio quality. Silent Angel’s rigorous approach preserves the integrity of the source and delivers a high-purity signal to connected components, for a performance unattainable with typical Network Switches. Purpose-engineered for High Resolution Streaming Networks, Bonn N8 Pro provides the ideal foundation for sonic excellence.

Two available N8 Pro models: One (N8 PRO-CLK) with an 10MHz external Word Clock input, and one (N8 PRO) without.

Unique and Advanced Designs

  • Eight gold-plated Gigabit Ethernet Ports with spaced out ports to physically reduce possible signal interference.
  • Class-leading Radar-Grade internal switching power supply module, which is exclusive to noise-sensitive acoustic equipment.
  • Perfectly timed data transmission.
  • TCXO (Temperature Compensation Crystal Oscillator) greatly lowers network latency issues and jitter effects.

Advanced Options for Audiophiles

  • An auxiliary DC power jack (12V) enables users to bypass the internal switching power module and connect an external linear power supply for performance upgrade.
  • A gold-plated grounding terminal for dedicated connection to ground further lowers power noise.
  • LED light switch which enables users to turn the port status indicator on/off.
  • Class-leading clock receiving module accommodates an external clock input. (* Optional, this available on N8 PRO-CLK model only)
  • Two available N8 Pro models: One (N8 PRO-CLK) with an 10MHz external Word Clock input, and one (N8 PRO) without



Availability: Available in 1 to 3 days
€2,399.00
INTERESTED IN PRODUCT

Specifications

  • Humidity
  • Operating: 10% ~ 90% RH (non-condensing), Storage: 5% ~ 95% RH (non-condensing)

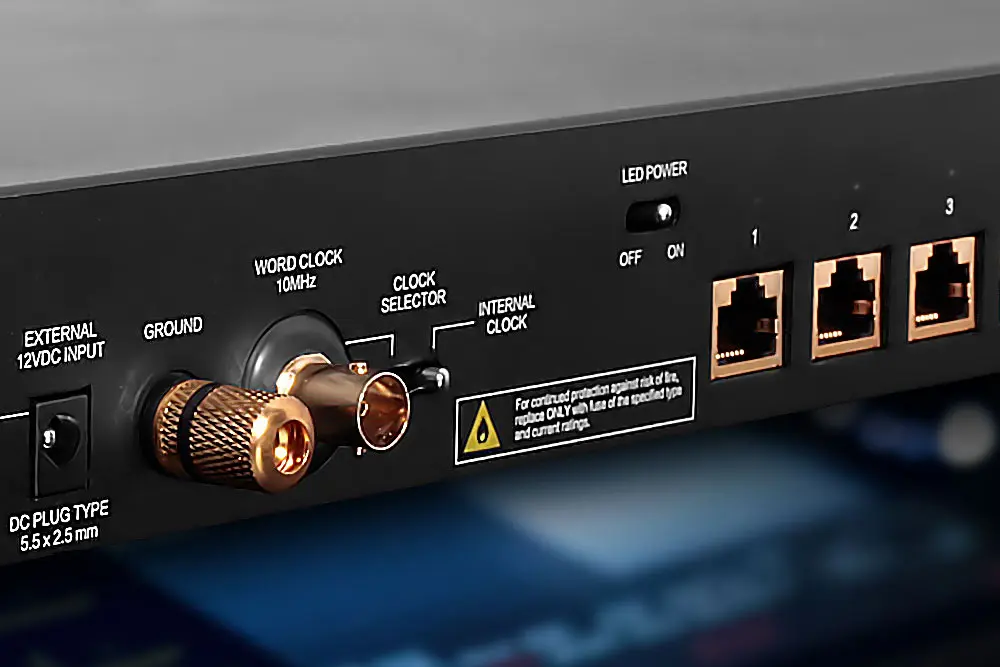

  • Interface
  • Clock input switch x 1 (external/internal), BNC interface 10MHz external Word Clock, Silent Angle specialized TCXO clock module, LED indicator switch x 1, Control the on/off status of LAN port LED, Grounding Port x 1, Connect to a ground box to make the signal quality more purer and precise without interference
  • Temperature
  • Operating: 32 ~ 86 °F, Storage: -4 ~ 158 °F
  • Power Consumption
  • 10 Watt at max
  • Power Input
  • IEC (AC) 100-240V, 50/60Hz, (DC) 12V/1A at max
  • Ethernet
  • Pure gold-plated 1GbE RJ45 port x 8
  • Weight
  • 2.6 kg
  • Height
  • 52 mm
  • Width
  • 441 mm
  • Length
  • 175 mm
