Specifications

  • Type
  • 5-way
  • Drivers

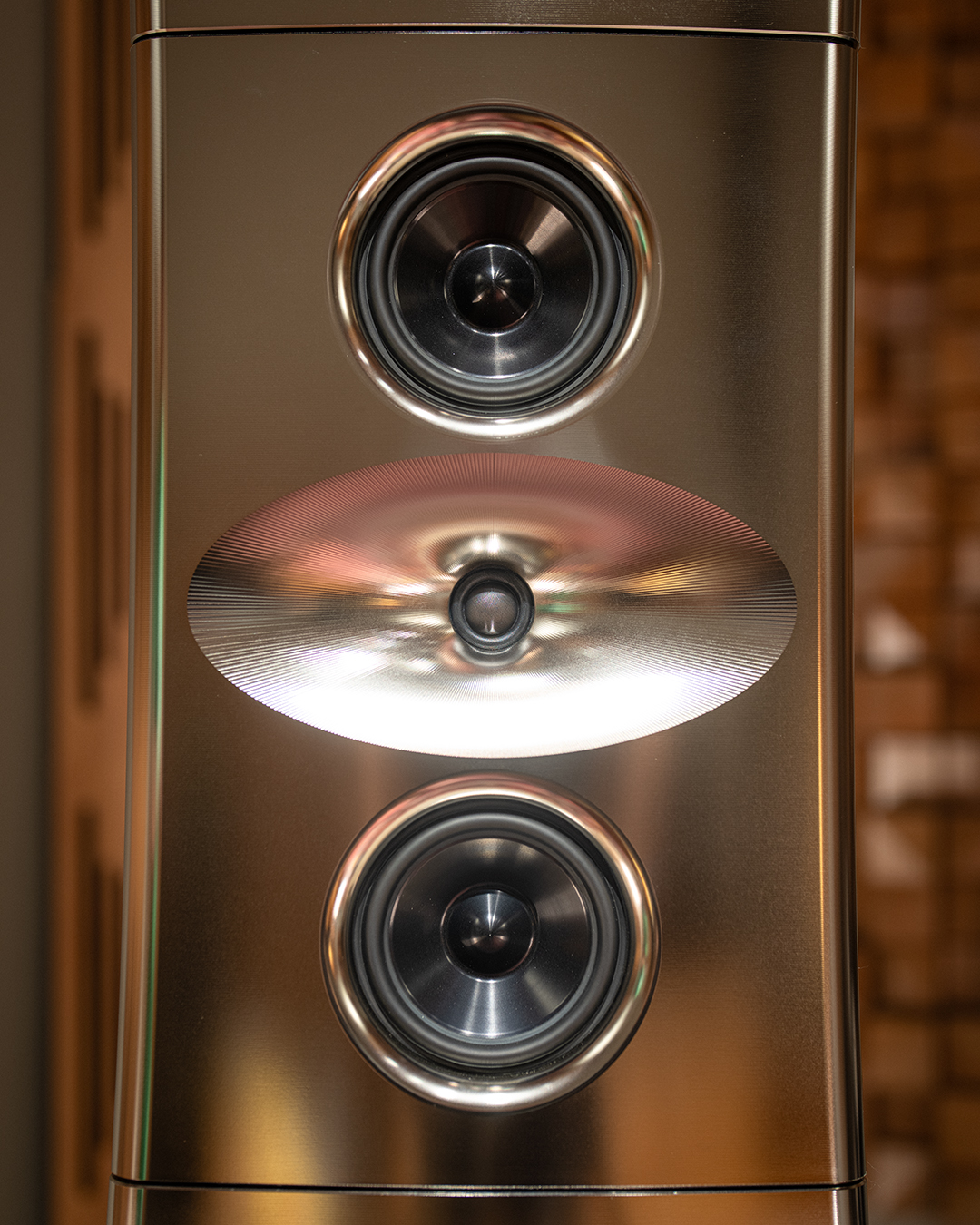

  • Lattice hybrid tweeter with advanced airframe | Dual 15 cm (6”) BilletCore drivers, advanced neodymium motor magnets, exceptional set matching | Dual 18.5 cm (7.25”) BilletCore drivers, advanced neodymium motor magnets, exceptional set matching | Dual 26 cm (10.25”) BilletCore drivers, ultra-high field strength motor, exceptional set matching | 32cm (12.5”) BilletCore driver, ultra-high field strength motor, exceptional set matching
  • Crossover
  • External crossover with Ultracoherent circuits at 90 Hz, 360 Hz and 1.85 kHz. 1kW audiophile bass amplifier with DSP tuned crossver for 32cm driver, supporting room correction | Passive crossover: Custom components unique to each pair, individually optimized for frequency response, phase alignment, phase slope and transient response | Custom capacitors, including pure metal foil models and special copper alloy foil models | Exceptional components such as manganin foil resistors, resonance-damped inductors, silver-gold alloy capacitors and OFC Litz inductors | Custom, anti-resonance PCB with low dielectric constant and dissipation factor, with optimized traces
  • Frequency Response
  • Usable output extends from 20 Hz to 40 kHz, Exceptionally low distortion throughout range, Excellent pair matching
  • Sensitivity
  • 88dB
  • Nominal Impedance
  • Average 4 Ohms, Minimum 2.4 Ohms
  • Weight
  • 455 kg
  • Height
  • 215 mm
  • Width
  • 54 mm
  • Length
  • 108 mm
