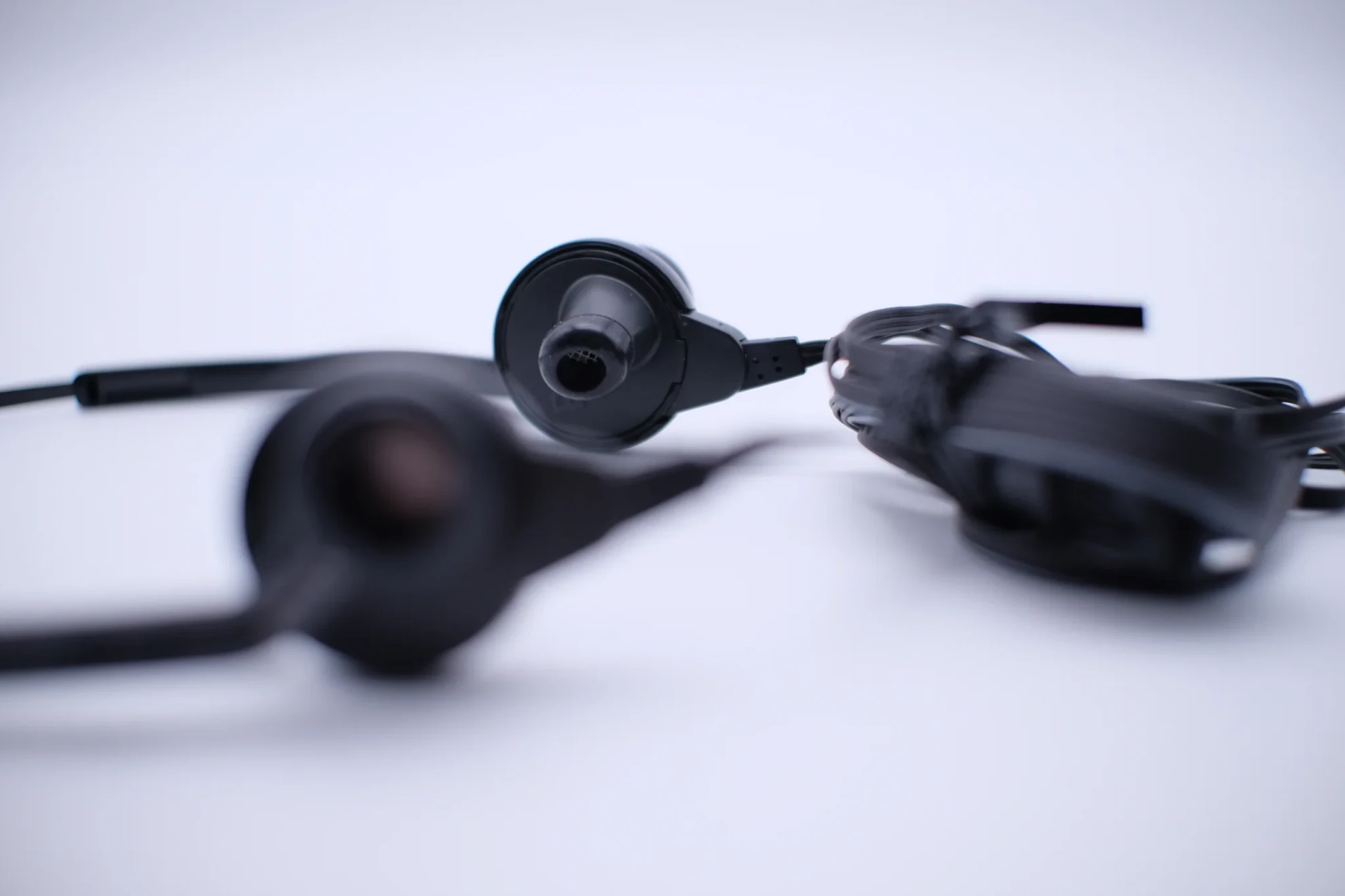

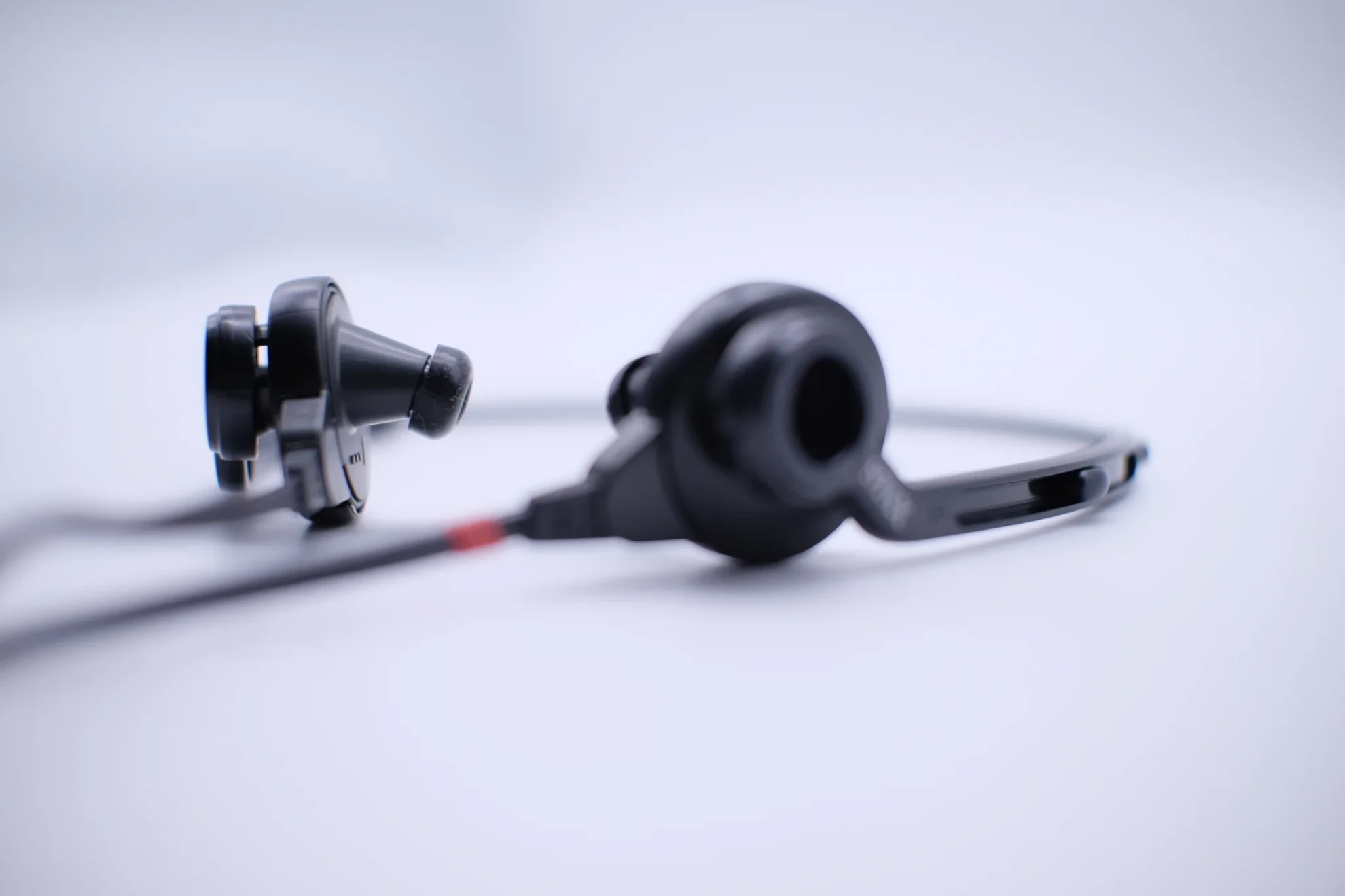

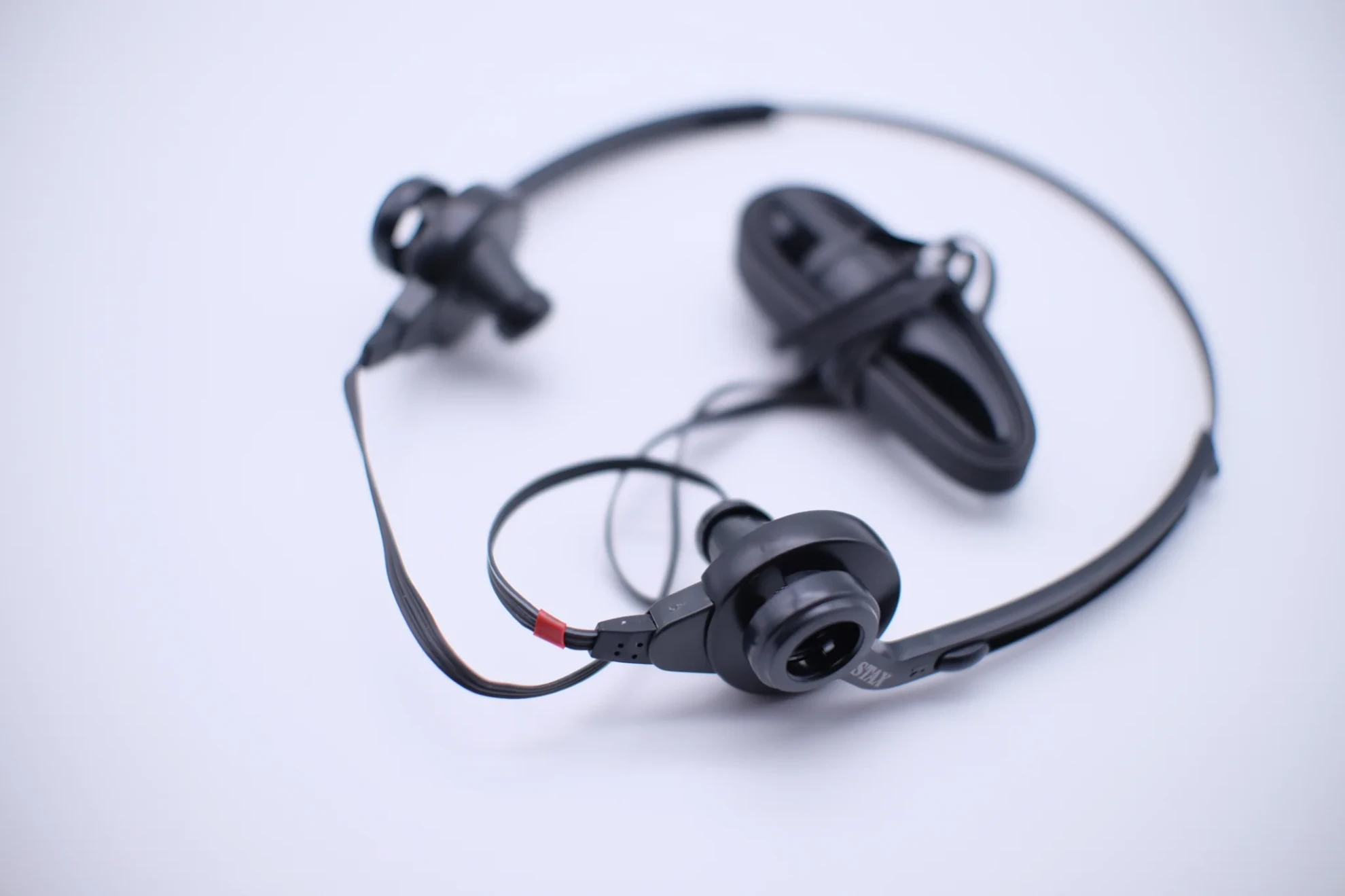

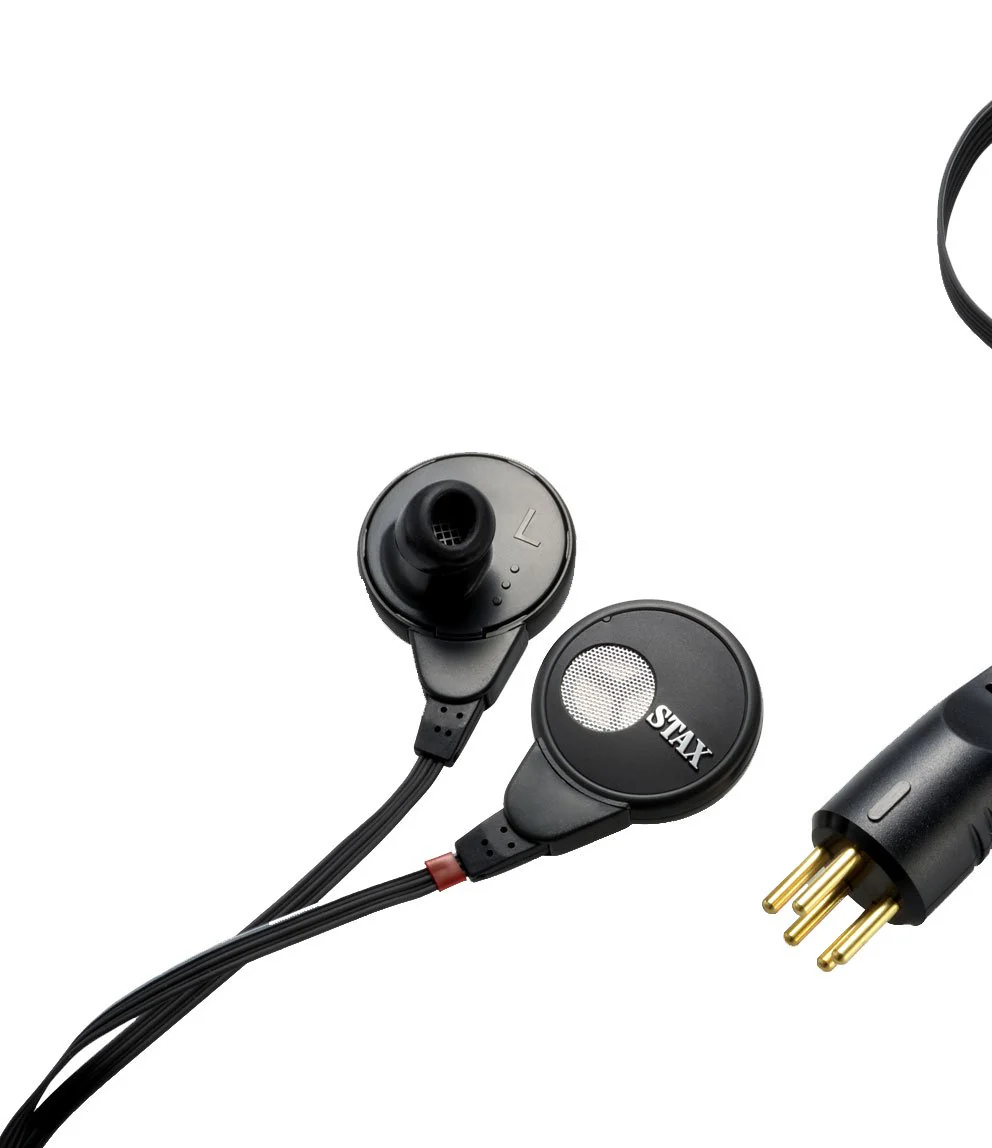

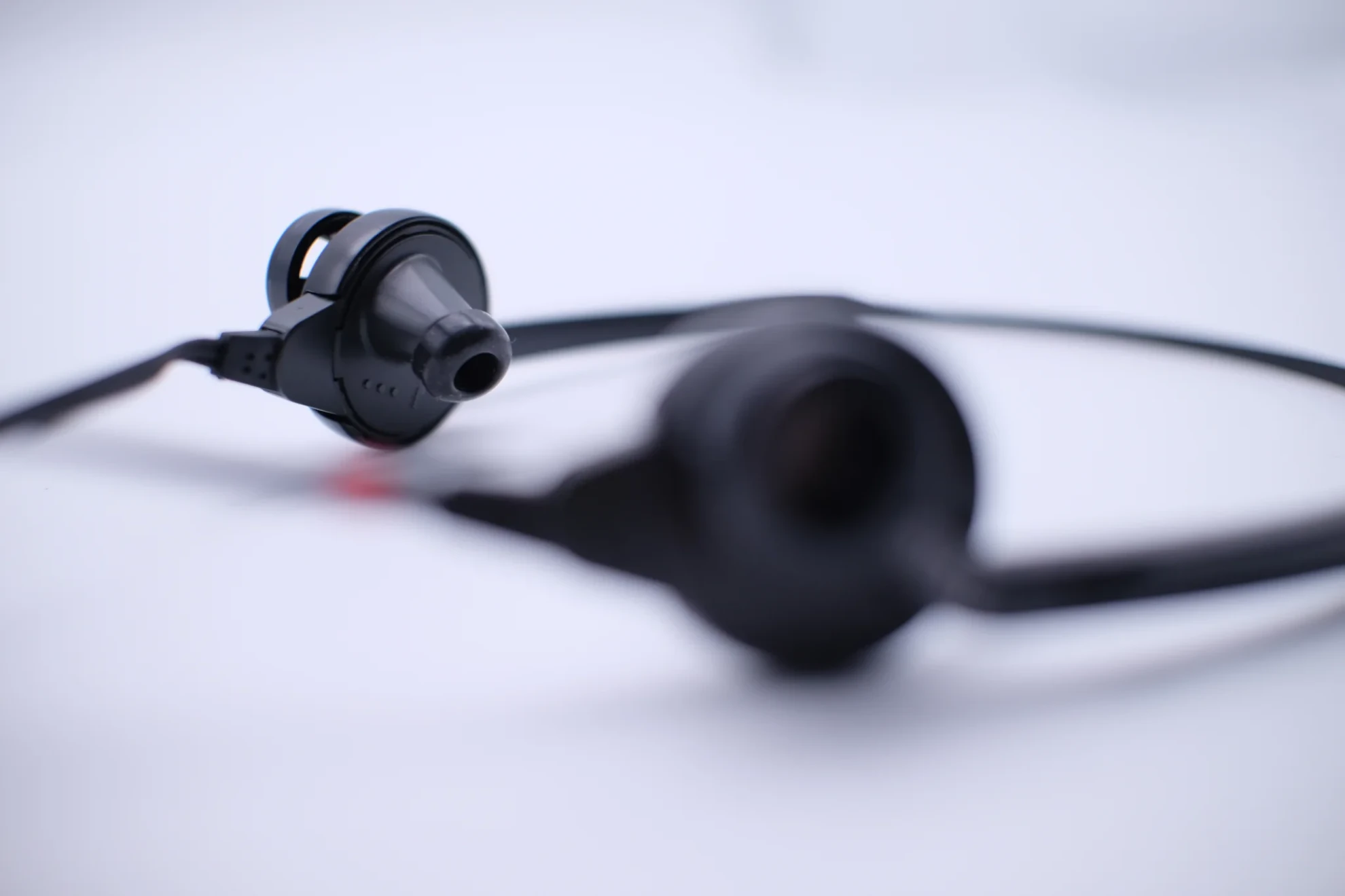

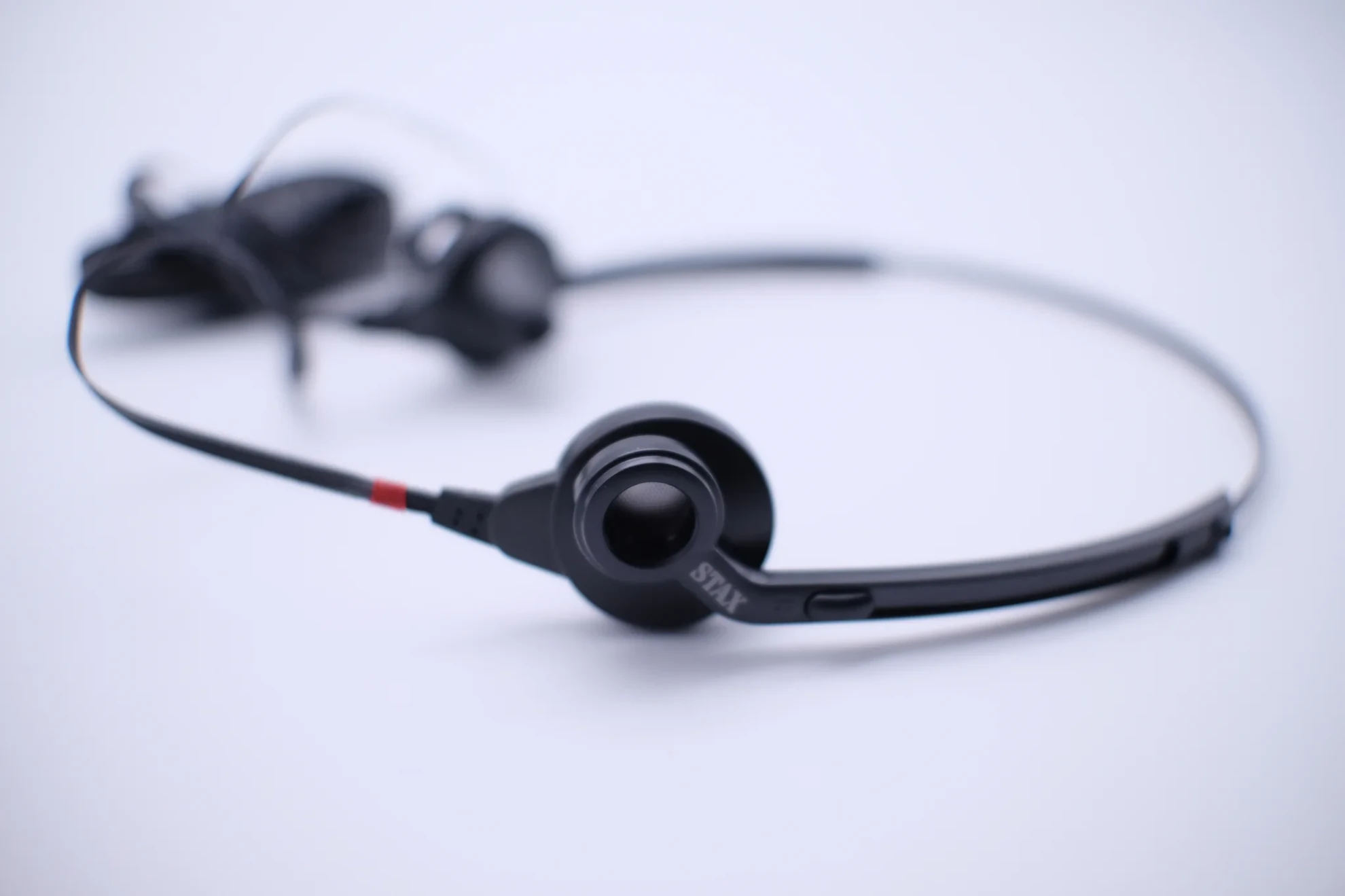

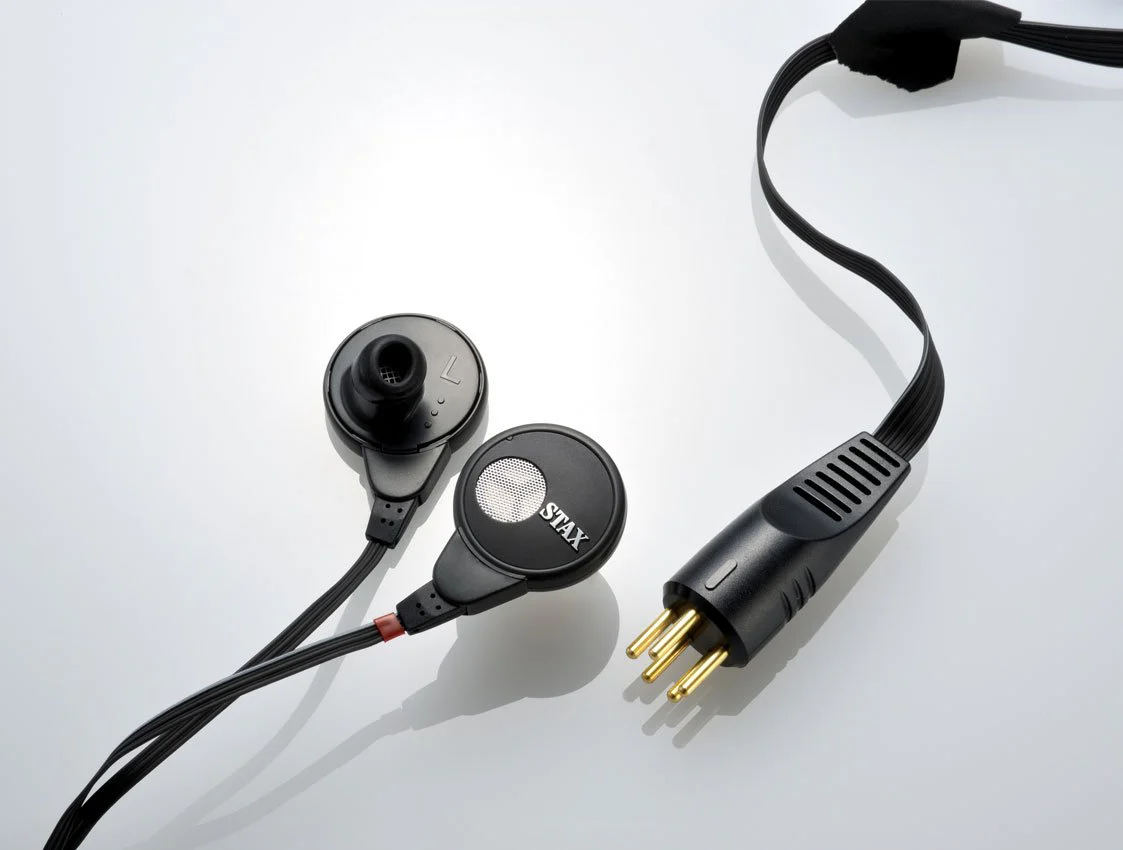

SR-003 MKII

The SR-003MKII is a 5-pin PRO bias type in-the-ear earspeaker, and can be used by connecting to a driver unit having 5-pin PRO bias output socket. The redesigned ear canal type structure of the SR-003 enables you to enjoy excellent electrostatic sound quality without covering your ears. It comes with a
redesigned earpiece with 3 sizes of silicone ear buds. Compared to the S-001/MK2, it is 15% lighter thus, delivering better resolution, transparency and a purer performance.

The SR-003MKII connects to STAX driver units or adapters equipped with 5-pin type PRO bias output and can be connected to any driver unit equipped with a PRO bias output socket.

SPECIFICATIONS

• Type: push-pull electrostatic, canal-type inears
• Frequency response : 20 - 20 kHz (±4dB)
• Static capacity : 44pF (including attached code)
• Sound pressure sensitivity : 110dB/100V r.m.s. / 1kHz
• Bias voltage : 550V – 580V
• Ear piece : L/M/S size made of silicone rubber (M size equipped at factory shipment)
• Cord : 5-pin for STAX PRO bias, 6-core parallel, total length 1.5m
• Weight : 38g (including code), 12g (main part only)
• Dimension: 28mm (diameter)
• Overhead arc weight : 15g
