Connect Series Half-Rack 64

LEA

The Connect Series 64 delivers one of the most feature-rich amplifier experiences available in the industry – in a smaller form factor.

Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install.

The Connect Series Half-Rack is built with fully routable analog inputs, four amplifier channels with Lo-Z, 70V, or 100V selectable by channel.

All models boast three different ways of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.

Availability: Upon Order.

€1,270.00

Qty:

INTERESTED IN PRODUCT

Specifications

Total Harmonic Distortion (THD)
0.1% (20Hz to 20kHz)

Crosstalk
70dB (20Hz to 20kHz)

AC-in
100VAC - 240VAC +/- 15% 50Hz or 60Hz

Power Output
4 x 60 WRMS @ 4Ω, 8Ω, 70V, 100V (30W at 2Ω)

Frequency Response
+/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω

Connectivity Inputs
Analog: 4 Balanced analog Inputs with user-selectable 26dB, 34dB, and mic level input sensitivity | 4 Unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity | *** Note - Unbalanced and RCA inputs share the same analog input channel

Load Impedance
LowZ down to 2 ohms, 70V direct, and 100V Direct per channel

Signal to Noise ratio
102dB (20Hz to 20kHz referenced to 8Ω)

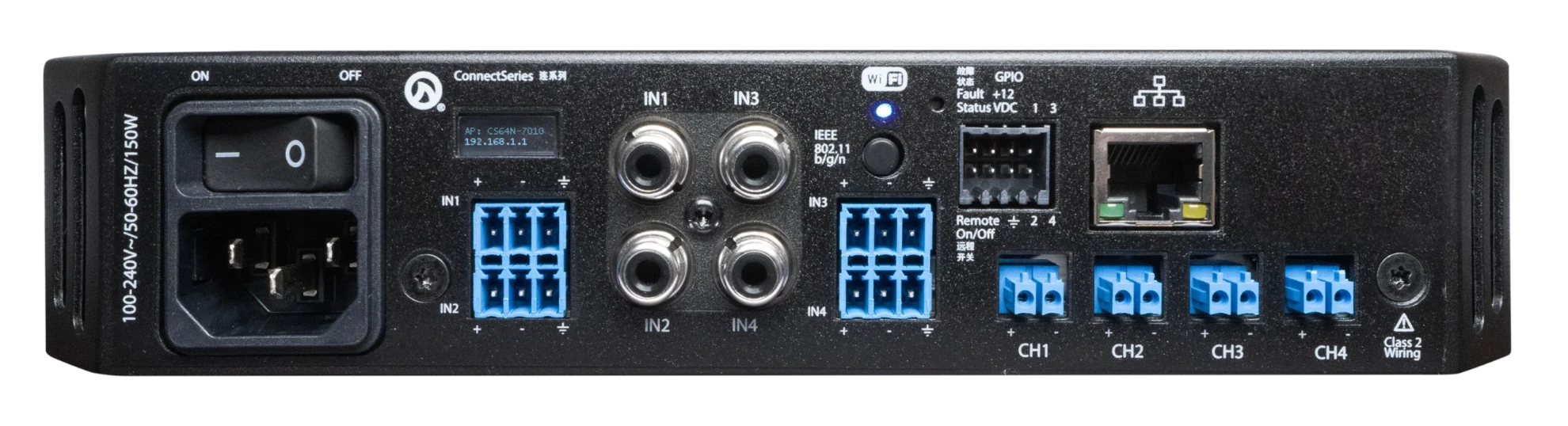

Connectors
Analog Input: 3 pin Amphenol Anytek, Output: 2 pin Amphenol Anytek, External IO: 8 pin Amphenol Anytek, Power in: IEC, Ethernet RJ45 In for Control, and RCA input

Temperature
Storage: -20°C to 90° C - Operating: 0°C to 60° C
