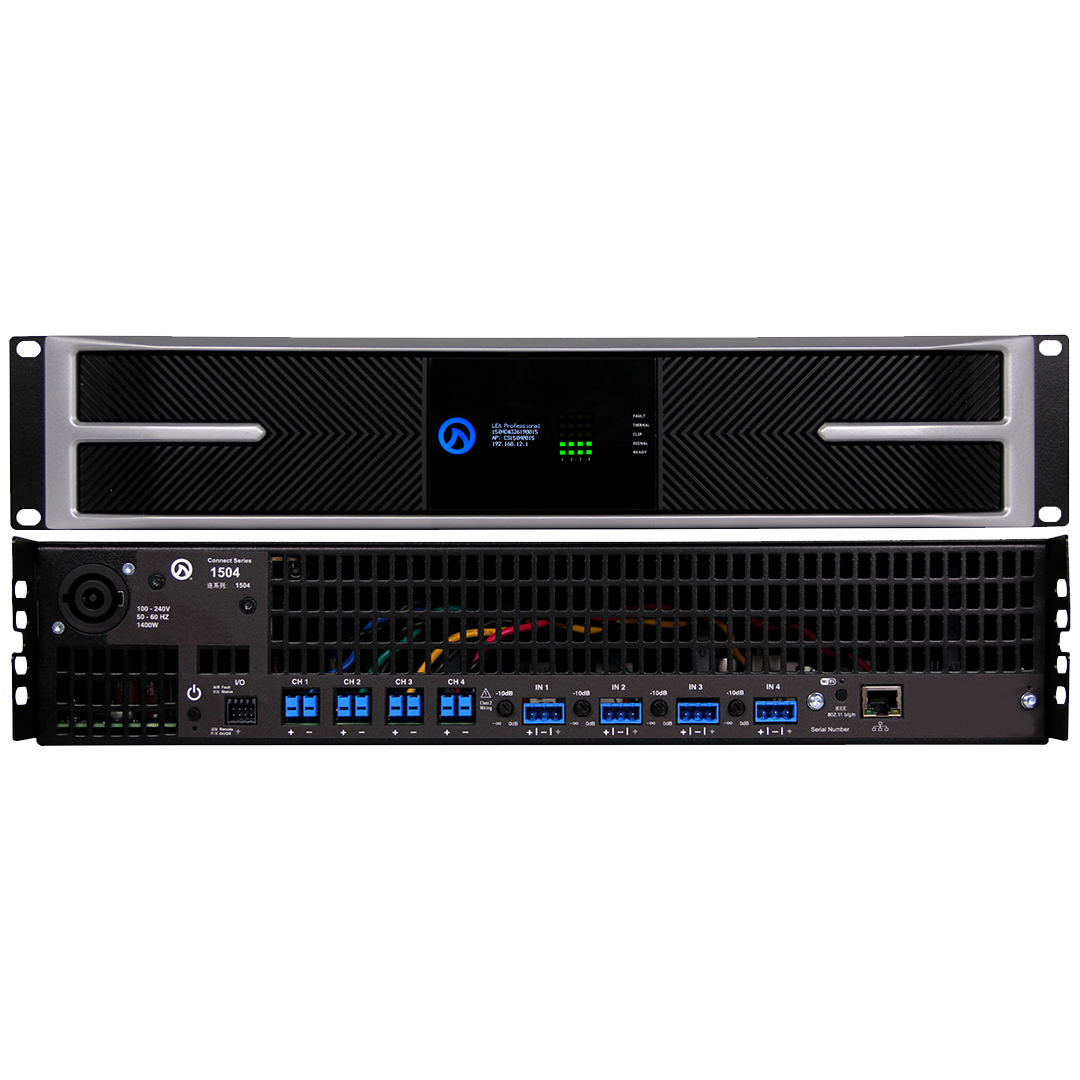

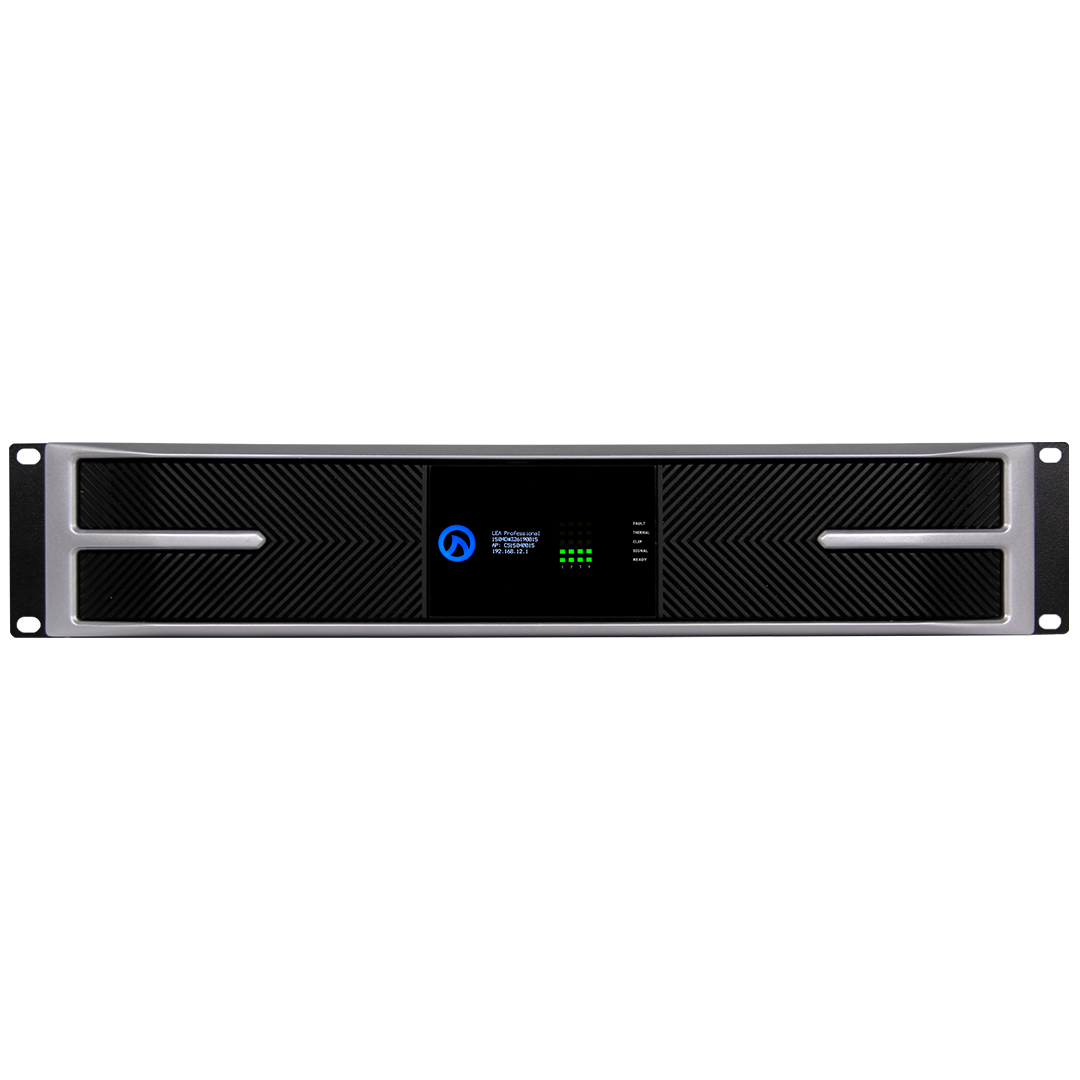

Connect Series Network 1504

LEA

Introducing the CONNECT 1504 high-power IoT-enabled smart amp. This four-channel model drives 1,500 watts per channel (into 2, 4, and 8 ohms as well as 70Vrms and 100Vrms).

This addition to the CONNECTSERIES amplifiers is available in NETWORK CONNECT and DANTE CONNECT versions, including both Dante and AES 67 connectivity options.

With three different methods of network connection, users can connect using the amplifier’s built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.

Then there’s the Cloud…The CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.

Availability: Upon Order.

€5,830.00

Qty:

INTERESTED IN PRODUCT

Specifications

Total Harmonic Distortion (THD)
0.1% (20Hz to 20kHz)

Crosstalk
70dB (20Hz to 20kHz)

AC-in
100VAC - 240VAC +/- 15% 50Hz or 60Hz

Power Output
4 x 1500 WRMS Per Channel @ 2Ω, 4Ω, 8Ω, 70V, 100V | 750 Watts @ 25V

Frequency Response
+/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω

Connectivity Inputs
Balanced analog Inputs with user selectable 26 dB and 34 dB input sensitivity

Load Impedance
LowZ down to 2 ohms, 70V direct, and 100V Direct per channel

Signal to Noise ratio
105dB (20Hz to 20kHz referenced to 8Ω)

Connectors
Analog Input: 3 pin Amphenol Anytek, Output: 2 pin Amphenol Anytek, External IO: 8 pin Amphenol Anytek, power cord (32A Neutrik Powercon to L6-30p), Ethernet RJ45 In for Control, Primary and Secondary RJ45 in for Dante

Temperature
Storage: -20°C to 90° C - Operating: 0°C to 60° C
