Connect Series Network 354

LEA

The CONNECTSERIES 354 is a 4-channel amplifier with 350 watts per channel.

As part of the Network CONNECTSERIES, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, it is perfectly suited for small to medium-scale installations.

The 354 features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.

Then there’s the Cloud…Network CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems. Register for your free LEA Cloud account at leaprofessional.cloud

The Network CONNECTSERIES also features analog inputs and external I/O control for remote on/off and fault monitoring.

Availability: Upon Order.

€2,370.00

Qty:

INTERESTED IN PRODUCT

Specifications

Total Harmonic Distortion (THD)
0.1% (20Hz to 20kHz)

Crosstalk
70dB (20Hz to 20kHz)

AC-in
100VAC - 240VAC +/- 15% 50Hz or 60Hz

Power Output
4 x 350 WRMS @ 4Ω, 8Ω, 70V, 100V (175W at 2Ω)

Frequency Response
+/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω

Connectivity Inputs
Balanced analog Inputs with user selectable 26 dB and 34 dB input sensitivity

Load Impedance
LowZ down to 2 ohms, 70V direct, and 100V Direct per channel

Signal to Noise ratio
105dB (20Hz to 20kHz referenced to 8Ω)

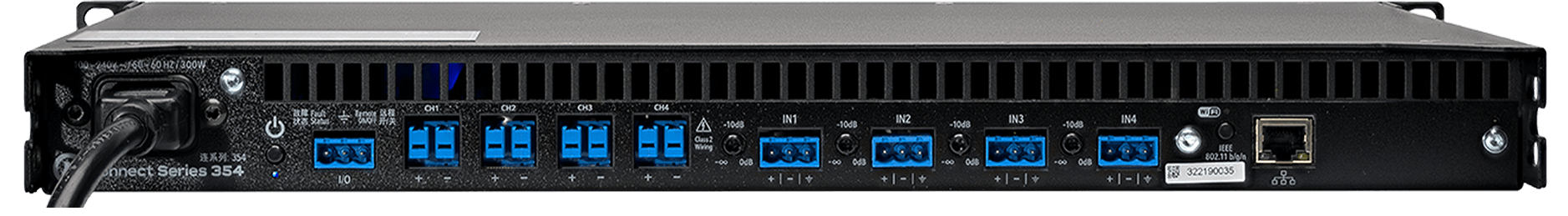

Connectors
Analog Input: 3 pin Amphenol Anytek, Output: 2 pin Amphenol Anytek, External IO: 3 pin Amphenol Anytek, Power in: IEC, Ethernet RJ45 In for Control ***Note: 84, 164, 88, & 168 do not have potentiometers on the rear panel

Temperature
Storage: -20°C to 90° C - Operating: 0°C to 60° C
