Specifications

  • Frequency Response
  • +0, -0.5dB from 20Hz to 20kHz, +0, -3dB from 15Hz to 100kHz
  • Sensitivity
  • Sensitivity High Level (Balanced / Unbalanced): 900mV / 450mV, Sensitivity Phono (Moving Coil): 0.45mV, Sensitivity Phono (Moving Magnet): 4.5mV
  • Number Of Channels
  • 2
  • Total Harmonic Distortion
  • 0.08%
  • Vacuum tube or Solid State
  • Vacuum Tube
  • Signal to noise ratio
  • Signal To Noise Ratio (High Level): 95dB, Signal To Noise Ratio (Moving Coil): 75dB, Signal To Noise Ratio (Moving Magnet): 80dB
  • Gain
  • Voltage Gain (High Level): 15dB, Voltage Gain (Moving Coil): 75dB, Voltage Gain (Moving Magnet): 55dB
  • Input Impedance
  • 44K ohm, 22K ohm

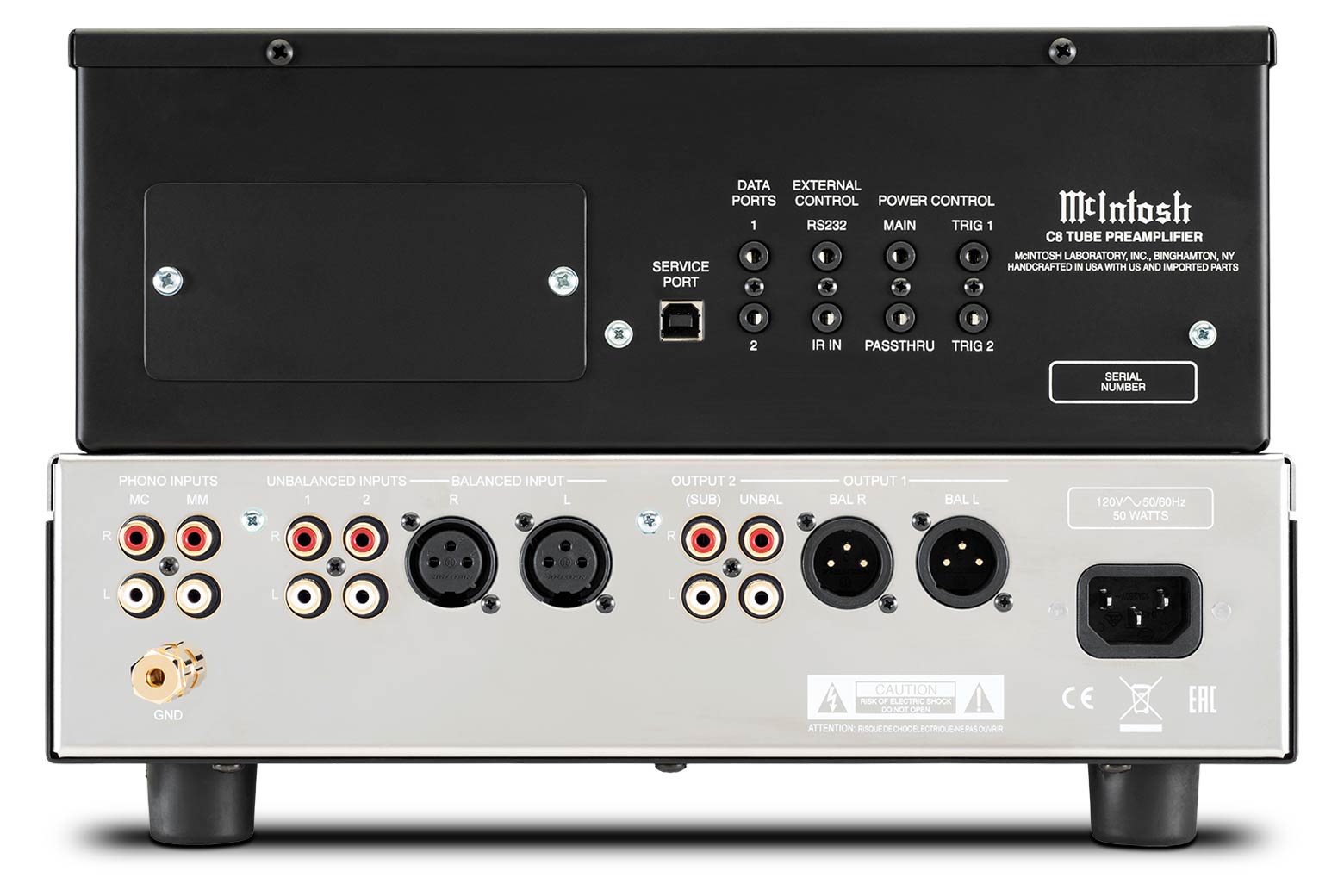

  • Connectivity
  • Balanced Input: 1, Unbalanced Input: 2, Phono Input Moving Coil: 1 (adjustable), Phono Input Moving Magnet: 1 (adjustable), Upgradeable Digital Audio Module: Yes (DA2 can be installed), Balanced Variable Output: 1, Unbalanced Variable Output: 2, Headphone Output: 1/4" High Drive, Input Level Match: Yes, +/- 6dB, Home Theater PassThru: Yes, Unbalanced Analog Connector Type: Standard, Service Port: 1
  • Power Consumption
  • 50 Watts (On)
  • Weight
  • 8.2 kg
  • Height
  • 194 mm
  • Width
  • 312 mm
  • Length
  • 413 mm
