CR106

McIntosh Labs

  • Combines a preamplifier and an audio matrix into one unit
  • Connect up to 5 units via Dante® network interface to create 30 zones
  • Each zone has 2 sets of stereo outputs plus subwoofer outputs
  • 4 analog and 4 digital inputs
  • Bluetooth compatible
  • Control options: Connect app, web interface, front panel
  • No complicated programming required
  • 2U rack mountable



UNMATCHED MULTI-ROOM AUDIO CONTROL

The CR106 6-Zone Preamplifier delivers effortless control and unmatched flexibility, enabling you to simultaneously enjoy different music in different rooms of your home. Combining the features of a preamplifier and an audio matrix into one unit, it can be paired with McIntosh amplifiers and speakers specifically designed for custom installations to create a multi-room, high-performance distributed audio system with exceptional sound quality that enhances every corner of your home.



EASY CONTROL AT YOUR FINGERTIPS

The CR106 is controlled by McIntosh free Connect app that is available for both Apple and Android devices, through a web interface, or by the intuitive front-panel knobs and buttons. Regardless of how you control the CR106, no complicated programming is required, so your system can be up and running quickly.When using the Connect app, you can:



  • Turn zones on and off.
  • Name zones for easy identification.
  • Select audio sources for individual zones.
  • Adjust volume, bass, and treble for each zone.
  • Configure subwoofer settings for zones with connected subwoofers.
  • Group zones together.
  • Select 1 of 6 optional EQ Voicings for each zone.

You can also create and customize Experiences using the Connect app or web interface. When you set up an Experience, the current input selection and volume levels for each zone are captured and saved. These saved Experiences can be easily reapplied or activated anytime, offering quick and seamless audio control.



FLEXIBLE CONNECTIVITY OPTIONS

Source components, such as CD players, music streamers, and tuners, can be connected via the 4 unbalanced analog inputs or the 4 digital inputs. For larger systems, up to five CR106 units can be linked together via Dante® network interface, creating up to 30 distinct two-channel audio zones. Adopted by hundreds of manufacturers in thousands of products, Dante replaces audio connections in larger multi-room systems with a computer network, effortlessly sending audio over your network to multiple locations.



You can also stream directly to the CR106 via Bluetooth, effectively turning your phone or tablet into a music source. The CR106 utilizes the high bitrate Advanced Audio Coding (AAC) standard; Qualcomm® aptX™ HD for hi res audio playback; and Qualcomm aptX Adaptive, a robust solution that delivers high resolution, uninterrupted audio over Bluetooth.



Each zone has 2 sets of unbalanced outputs plus dedicated subwoofer outputs. Two outputs per zone allow for advanced configurations such as:



  • Playing the same audio on 4 speakers and 2 subwoofers in one zone.
  • Distributing the same audio across two zones simultaneously.



Audinate®, the Audinate logo and Dante® are registered trademarks of Audinate Pty Ltd. All other trademarks are the property of their respective owners.



Availability: Upon Order.
€7,699.00
INTERESTED IN PRODUCT

Specifications

  • Sensitivity
  • High Level: 450mV Unbalanced (Balanced N/A)
  • Number Of Channels
  • 2 (for each of 6 independent zones)
  • Frequency Response
  • ±0.5dB from 20Hz to 20kHz

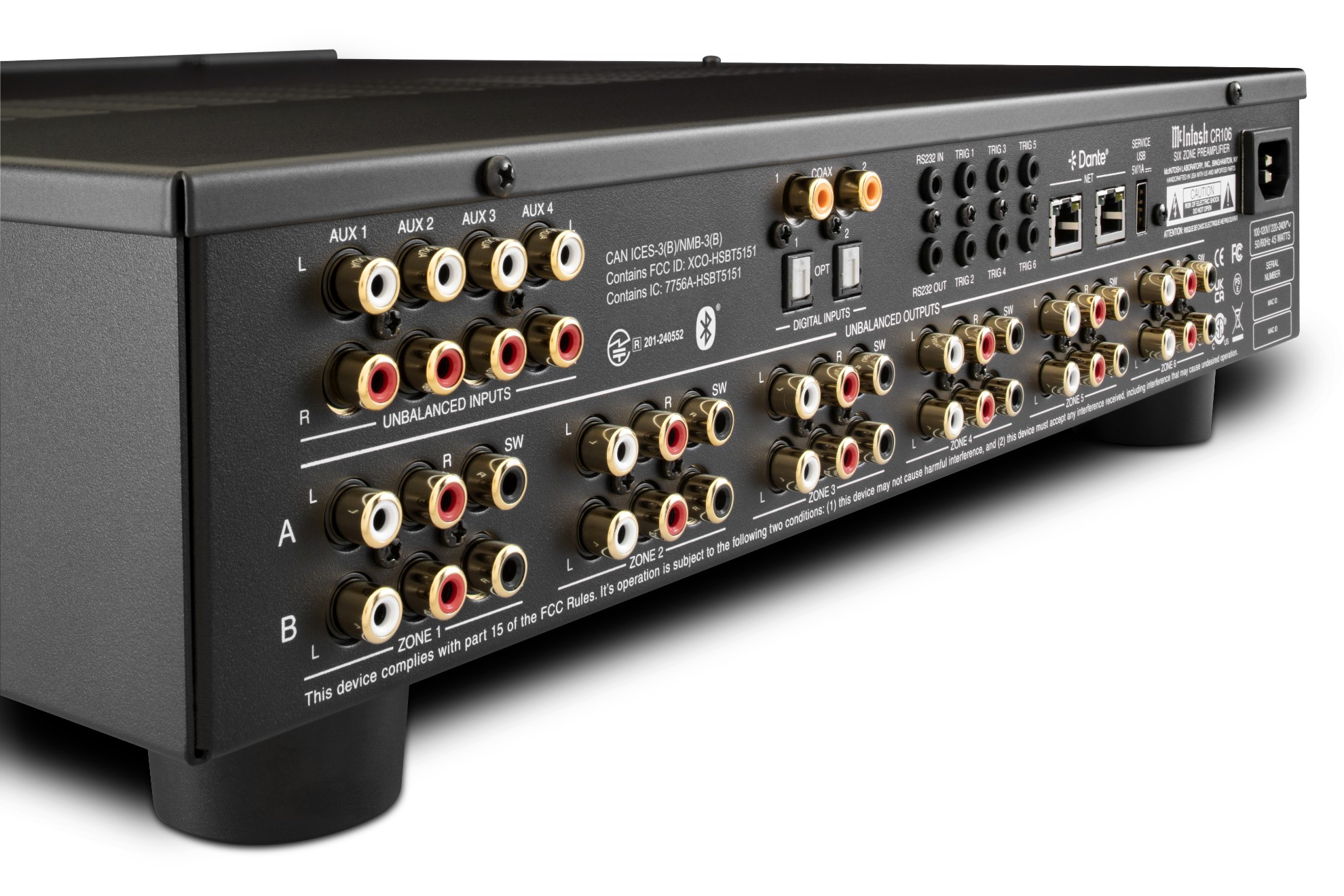

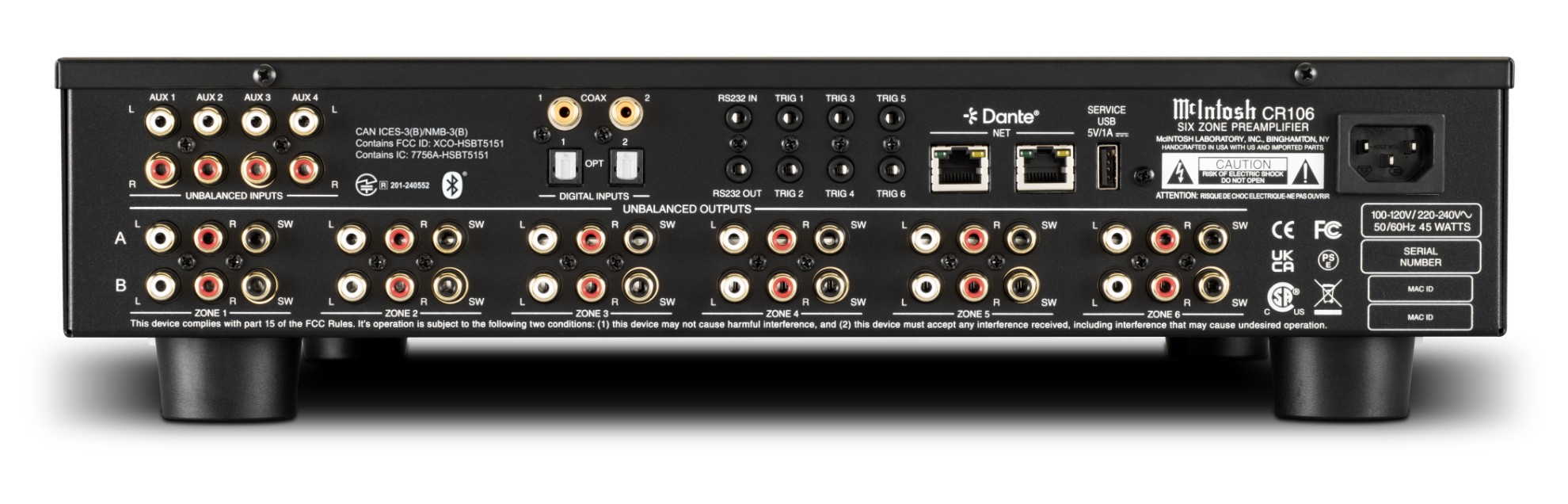

  • Connectivity inputs
  • 4 Unbalanced, 2 Digital Coaxial, 2 Digital Optical, 1 Service Port, 2 Network Connections
  • Connectivity outputs
  • Unbalanced Variable: 6 Zones (each zone has 2 sets of unbalanced outputs plus 2 dedicated subwoofer outputs)
  • Total Harmonic Distortion
  • High Level Inputs: 0.005% maximum from 20Hz to 20kHz
  • Vacuum tube or Solid State
  • Solid State
  • Signal to noise ratio
  • High Level: 96dB
  • Gain
  • Voltage Gain (High Level) 4.5V Unbalanced
  • Input Impedance
  • 50K ohms Unbalanced (Balanced N/A)
  • Power Consumption
  • 45 watts (On)
  • Weight
  • 6.8 kg
  • Height
  • 111 mm
  • Width
  • 445 mm
  • Length
  • 461 mm
Product Files
Owners manual
Technical drawings
Stereofile
