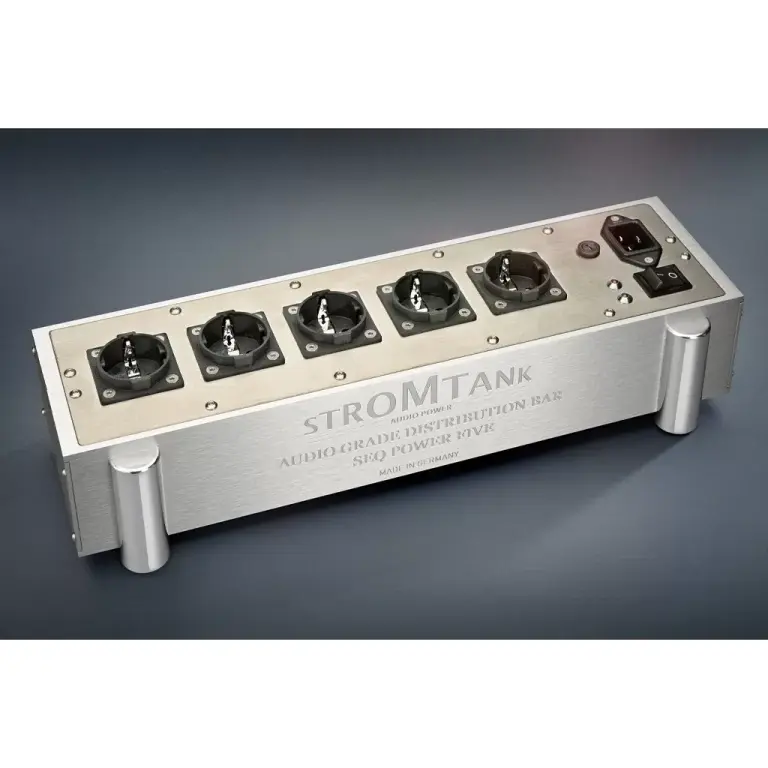

SEQ 5

The SEQ 5 is claimed to contain top-quality wire and components. it includes fully-shielded high-frequency Digital Distortion Suppression (DDS) on all outlets to suppress noise from switching power supplies. For users with a large analog front end, a second version is available that includes one outlet with DDS and four "pure" outlets.

Designed for all components except high-current power amplifiers, the SEQ 5 utilizes a Microchip PIC 16 on its processor board to sequentially switch on one outlet at a time. This allows power to stabilize and reduces peak current on the main power line. The SEQ5's latching relays contain silver nickel chrome molybdenum (NCM)-plated contacts that accomplish 16A high-power transfer without contact distortion. The case is brushed and anodized aluminum/magnesium/silicon, and the mounting plate is brushed stainless steel. Stainless steel on aluminum/magnesium helps reduce mechanical resonance.

Stromtank SEQ 5 Remote Features:

Outlets (receptacles):
 5 custom made Receptacles
 contact: pure Copper, Rhodium plated for the highest contact quality
(optional: Furutech GTX-D-NFC for an additional fee)

AC-in:
 230 /120V 50/60Hz
 power max total: 2.000 W ( 120 Vac 60Hz – 16A)
 power max total: 2.800 W ( 230 Vac 50Hz – 12A)

AC inlet – 20A max:
 contact: Nano Crystal Formular (NCF)
 fuse: cartridge fuse 6.3 x 32 Slo-Blo (slow blow)
DDS Filter (Digital Distortion Suppression)
 high-frequency trap, fully shielded, to reduce digital distortion on the power line

Electronic:
 processor board for sequential switching function equipped with Microchip PIC 16
 4 High-Performance latching relays with “high power” Contact
 contact: silver NCM plated (Nickel Chrome Molibdenum) that realizes a 16-A
high switching Current.

SEQ outlets:
 will be switched “ON” step by step
 to reduce peak current on the main power line
 delay from step to step 1 second

Case:
 Aluminum Magnesium Silicium ( AlMgSi 1)
 brushed and anodized, Surface: black and silver
 mounting plate: stainless steel – brushed
 sound optimized copper wiring for low inductivity

Phase control indicator: (red LED)
 mechanical resonance reduction: stainless Steel on Aluminium/ Magnesium
