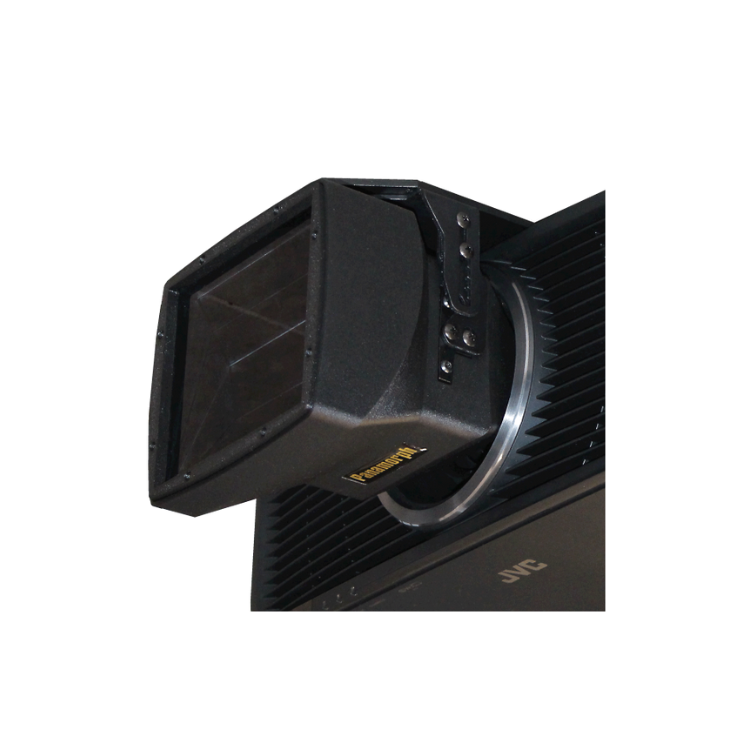

Alpha DCR-G2 + XM3 Lens System

Leveraging Panamorph's award winning DCR optics, their G2 (second generation) lens system is now packaged with the XM3 universal attachment kit for ceiling- or shelf-mounting JVC DILA and Epson QB series projectors. Note that like the previous DCR and CDR lenses, these models do not change the width of the image – only the height – as they convert the full native resolution of the projector to the 2.4:1 cinema format with millions of more pixels for higher brightness and detail.

DCR-G2 is designed for JVC D-ILA projectors with 65mm lenses such as the NZ800 down to a 1.4:1 throw ratio and with 80mm lenses. It will also work with JVC projectors such as the NZ500/NZ700 with an 80mm lens down to a 1.6:1 throw ratio, and also the 100mm lens of the NZ900 with theater throw ratios of at least 1.7:1. Geometric performance is exactly the same as the DCR-J1 and DCR+XM2 which this model replaces.

• 2 million more pixels on your 2.4:1 format screen for stunning detail and 30% higher brightness when showing 2.4:1 movie and streaming content.
• Does not change the projector throw ratio. A slight barrel shaped geometric distortion will appear with the DCRG2. Greater distortion with the CDRG2 can be corrected to a rectangular image using Epson’s “Point Correction.”
• Sealed, precision, proprietary all-glass optical system.
• Instant aspect ratio changes. No need for lens adjustments in shift/zoom/focus.
• Optimized for vertical position of the projector in typical home theaters from -6″ to +16″ from screen top and +/- 4” from screen horizontal center (greater with higher throw ratios).
• Optional UltraWide 2.4:1 mode for 16:9 content to fill a cinema-format 2.4:1 screen.
• Universal ceiling- or shelf-mount attachment system for all compatible projectors.
• Weight: Lens and bracket: 4.7 pounds (2.14Kg). XM3 plate: 5 pounds (1.8Kg).
• Dimensions:  Lens only: 6.6” (168mm) W X 5.6” (140mm) H X 5.9” (150mm) D. Allow 6.5” (165mm) in front of the projector for mounting and adjustments.
