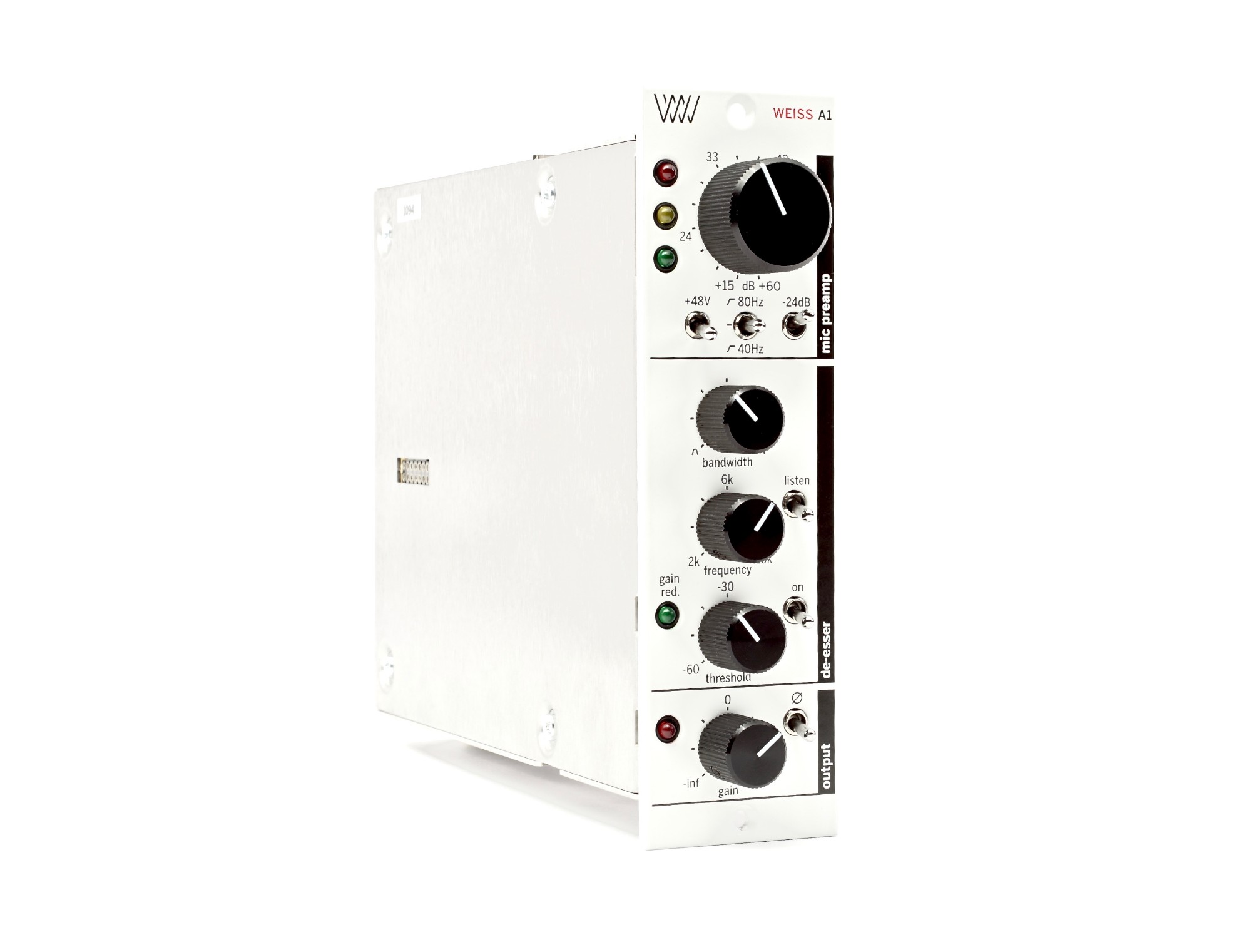

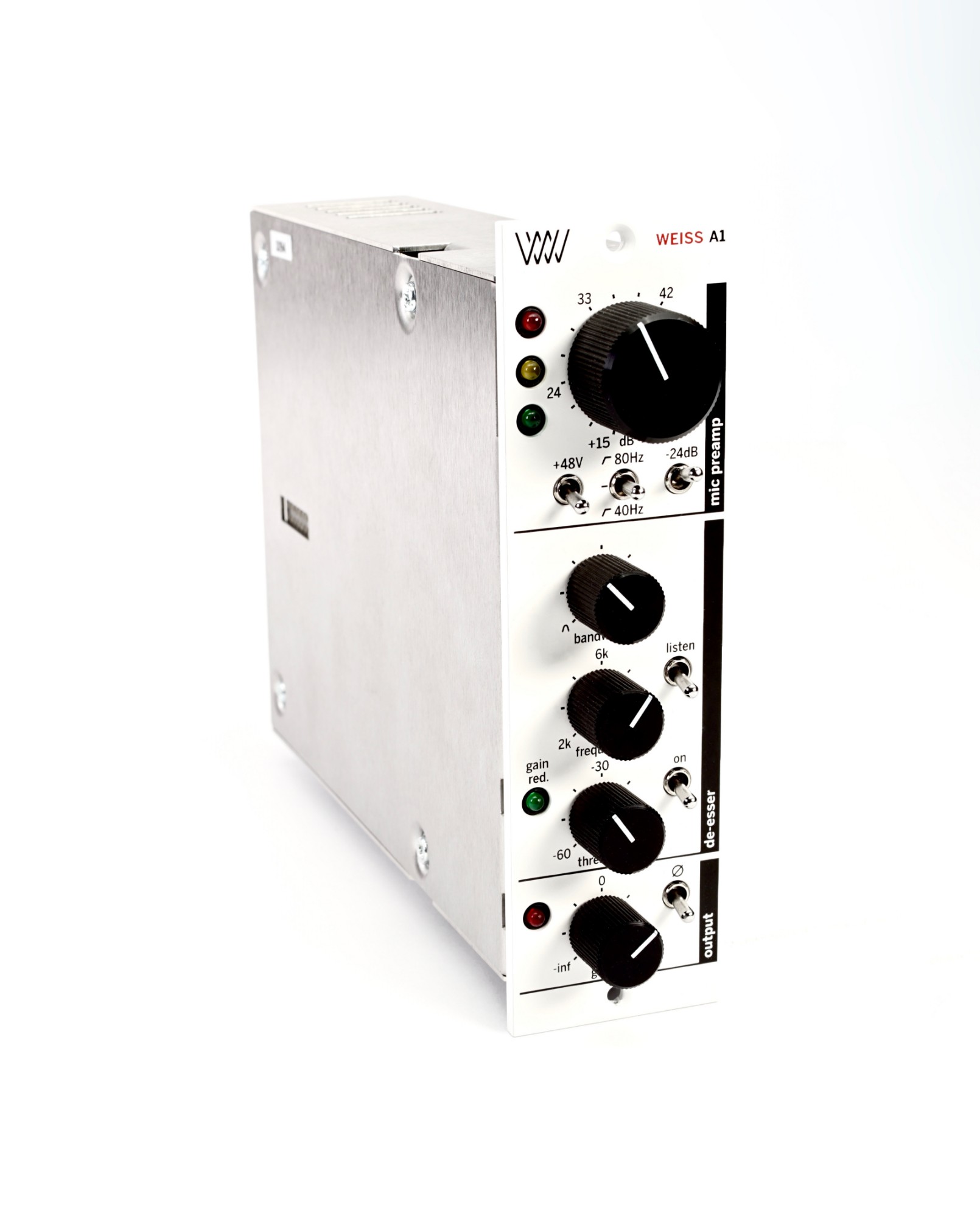

Specifications

  • Analog Outputs
  • One analog output on an XLR connector, Output gain range: −∞ dB to +12 dB, continuous, Maximum output level, 100 kΩ load: +27.0 dBu (for THD+N ≤ −80 dB), Output impedance at 1 kHz: 290 Ω.
  • Analogue Inputs
  • One analog input on an XLR connector, Input gain range, pad off: +15 dB to +60 dB, 3 dB steps, Pad attenuation: 24 dB, Maximum input level at minimum input gain, pad on: +29.7 dBu (for THD+N ≤ −80 dB), Input impedance at 1 kHz, pad off: 8.4 kΩ, Input impedance at 1 kHz, pad on: 2.8 kΩ.
  • Power Handling
  • Compatible with API Series 500 power racks, Current consumption ±16 V supply: ≤ 150 mA, Current consumption +48 V supply: ≤ 15 mA.
  • Height
  • 133 mm
  • Width
  • 38 mm
  • Length
  • 150 mm
